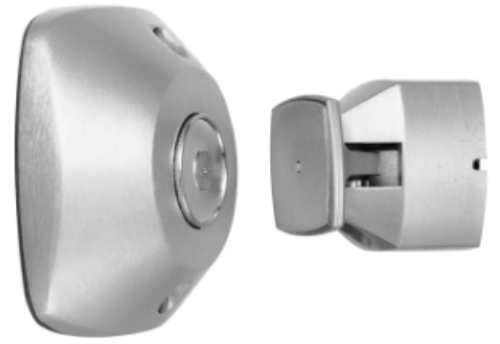

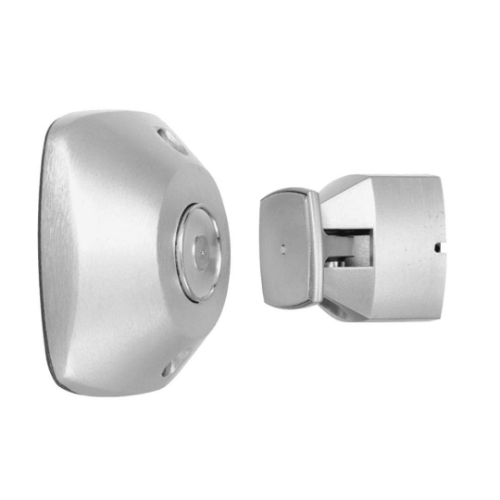

Norton Rixson 999M 689 Electromagnetic Door Holder/Release, Universal Wall Mount,
Product Details

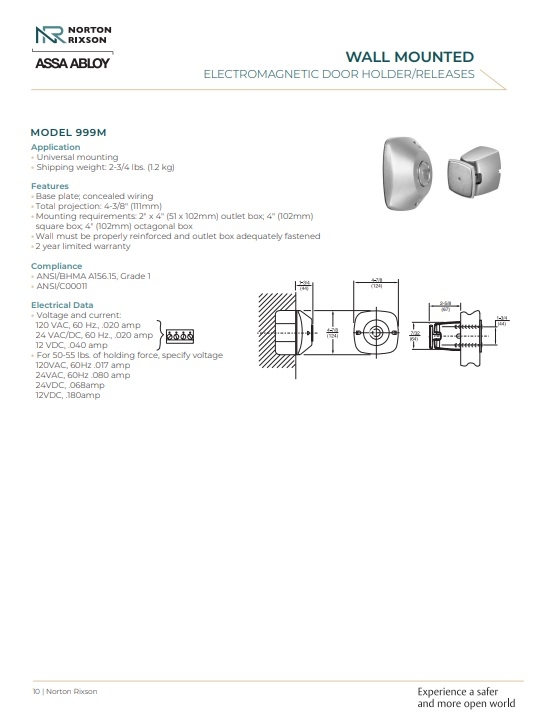

Norton Rixson *999M-689 Electromagnetic Door Holder/Release, Universal Wall Mount, Sprayed Aluminum*
Application:
Universal MountingANSI/C00011
Product Description & Features:
Base Plate; Concealed Wiring - Total Projection: 4-3/8" (111mm)Mounting Requirements: 2" x 4" (51 x 102mm) outlet box; 4" (102mm) square box; 4" (102mm) octagonal boxWall must be properly reinforced and outlet box adequately fastened
Technical Information:
Voltage and Current:
120 VAC, 60 Hz., .020 amp
24 VAC/DC, 60 Hz., .020 amp
12 VDC, .040 amp
