Trine 30LC Electric Strike - Body Only - FAil Secure -11-29 AC/DC

Trine 30LC Electric Strike - Body Only*- FAil Secure*-11-29 AC/DC

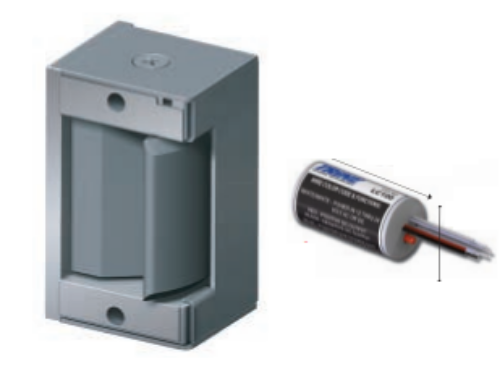

LC-100 Included:

Line Condition (LC100) which allows 11 thru 29 AC/DC Voltage input - with surge and kickback protection and continuous duty

Designed so a 1" drill bit can be used to hide unit in wood.

can be used on the 30LC & 30RS ONLY andplaced up to 15’ feet away!

Mechanism Features:

Continuous Duty

GRADE 1

500,000 + life cycles

1,500 + lbs. holding force (1,200 lbs. for 334)

Dynamic Force 70 ft/lb.

Solid stainless steel latch and in the device body.

Accepts a bolt with a up to 5/8" throw

Non-handed Unit (except 458, 478 LO/RO)

Fail secure - standard action (unlocks with power)

Mechanism spacers increase cavity depth up to 1/8"

Specifications:

BHMA - A156.31, 2001

BHMA Grade 1 - All models (except 334)

BHMA Grade 2 - 334
