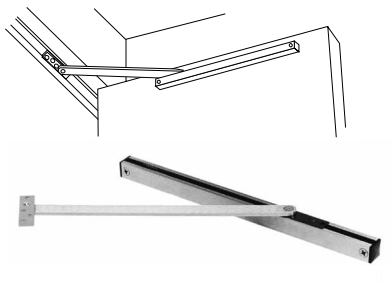

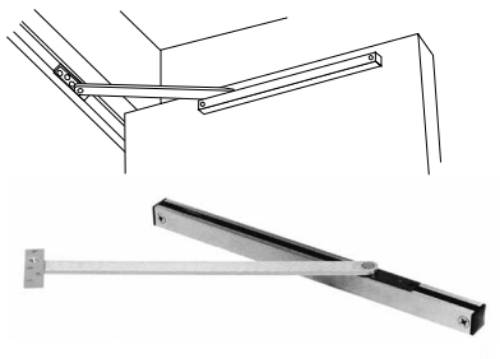

Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold

Picture of Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold
rixson9336630
Picture of Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold
Picture of Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold
Picture of Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold
Picture of Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold
Picture of Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold
Picture of Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold
rixson9336630
Picture of Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold
Picture of Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold
Picture of Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold
Picture of Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold
Picture of Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold
naxt
prev

Product Details

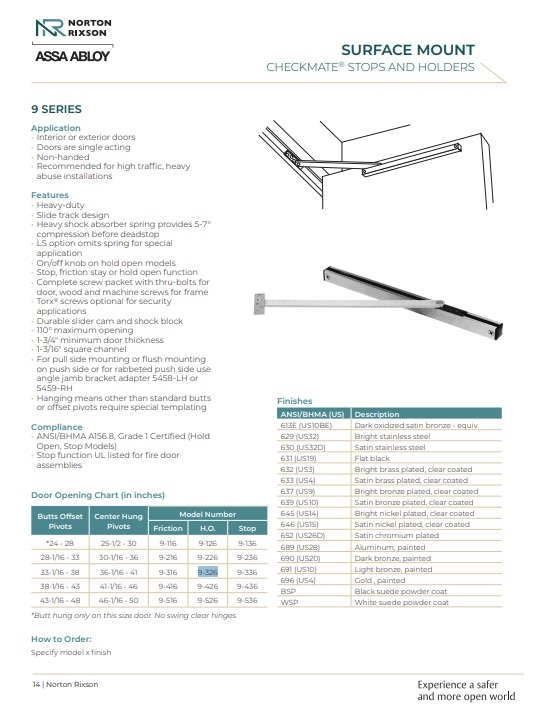

Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold

Best Suited For Heavy Duty Surface And Stop For High Traffic Interior And Exterior Doors.

Door Opening Size:

Butts Offset Pivots: 33-1/16 - 38

Center Hung Pivots: 36-1/16 - 41

Product Description & Features

Heavy-duty Interior or exterior doors

Doors are single acting

Non-handed

Slide track design

Recommended for high traffic, heavy abuse installations

Stop, friction stay or hold open function

Heavy shock absorber spring provides 5-7 compression before deadstop

Complete screw packet with thru-bolts for door, wood and machine screws for frame

Standard architectural finishes

Durable slider cam and shock block

110 maximum opening 1-3/4" minimum door thickness1-3/16" square channel

Stop function UL listed for fire door assemblies

Model: Norton Rixson 9-326 630,  9-326-630,  9 326 630,  9326630

Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold

SKU: 9-326

In Stock

$412.96

Finish *

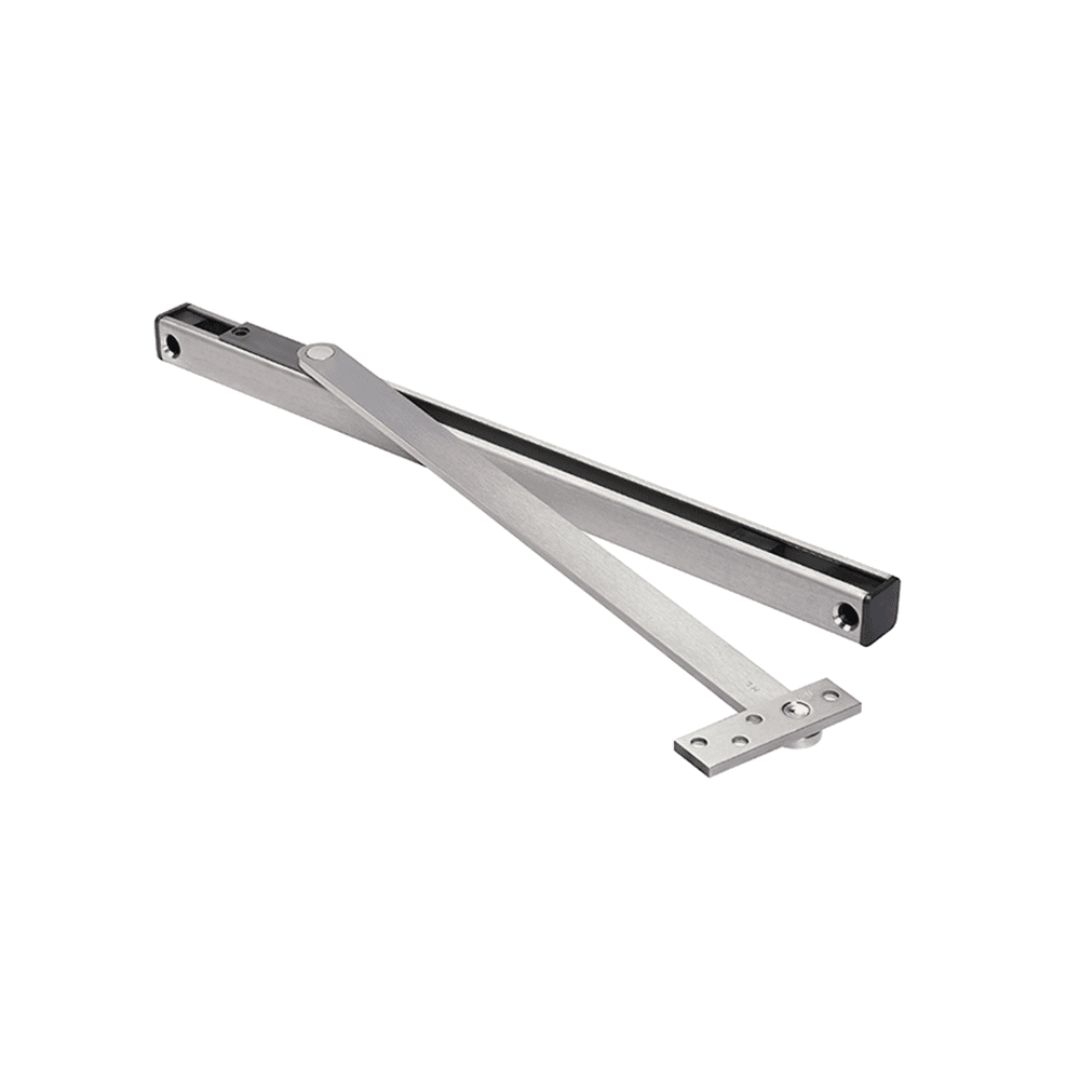

689 - Silver Aluminum Painted
689 - Silver Aluminum Painted

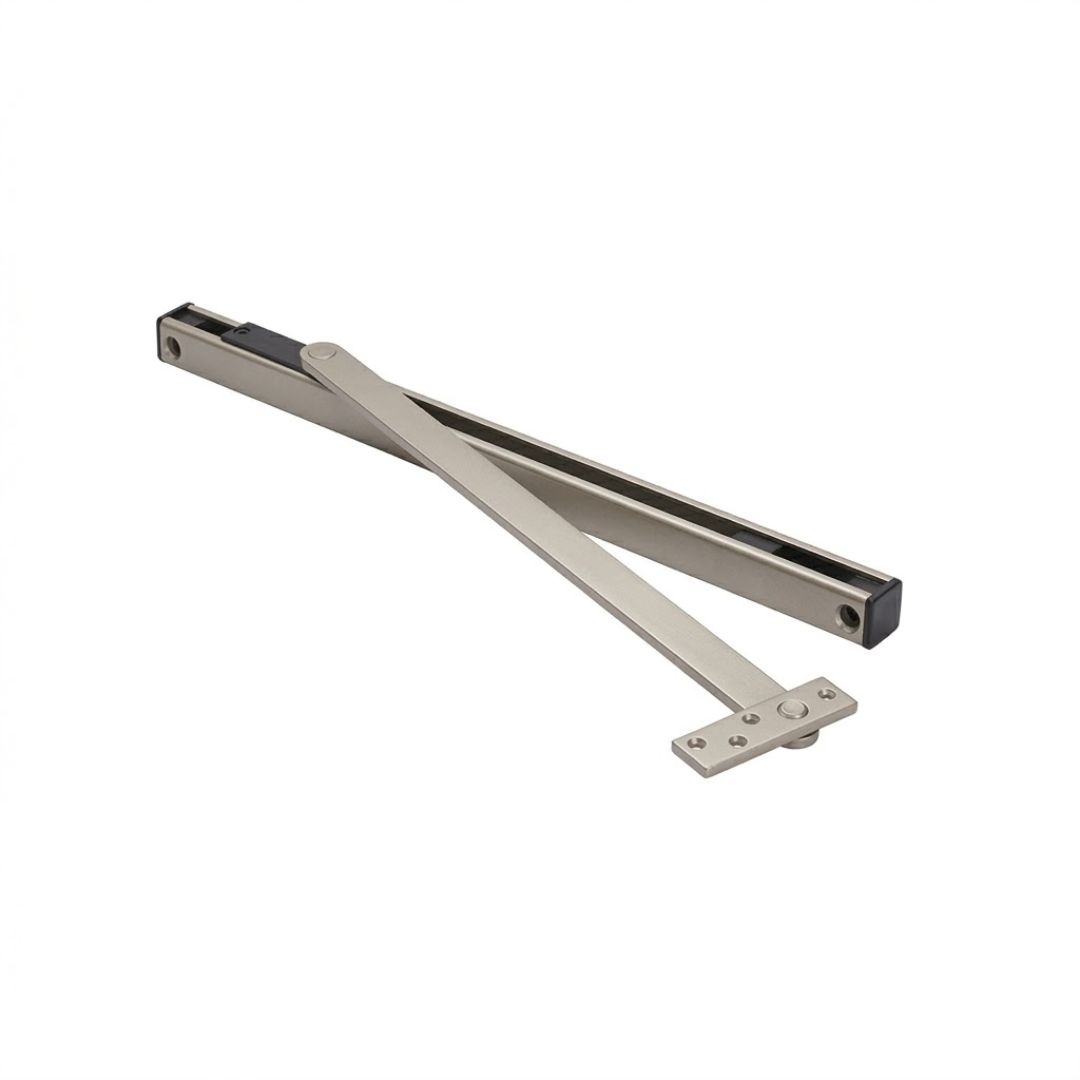

630 - Satin Stainless Steel
630 - Satin Stainless Steel
690 - Dark Bronze Painted
690 - Dark Bronze Painted
696 - Satin Brass Painted
696 - Satin Brass Painted

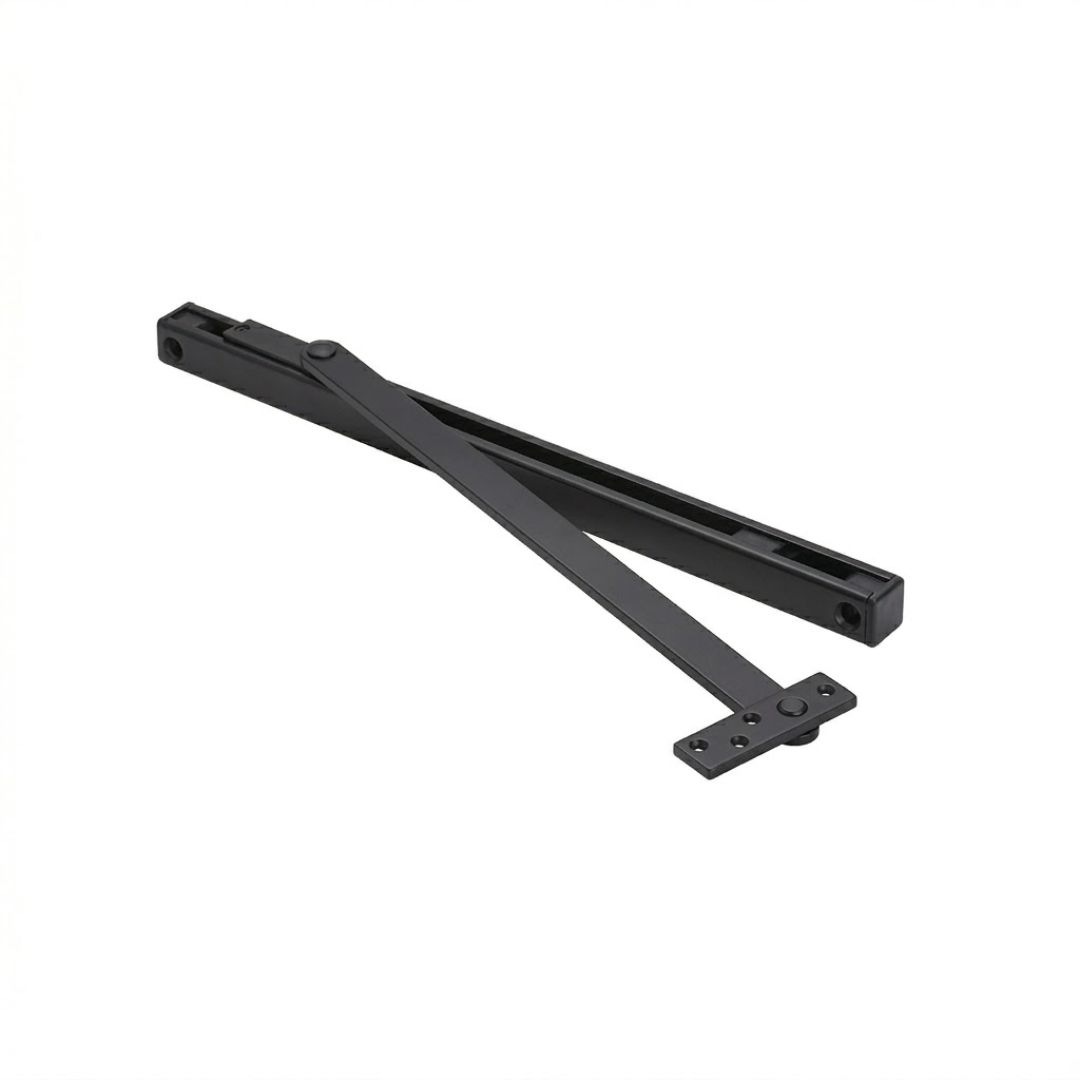

BSP - Black Suede Powder Coat
BSP - Black Suede Powder Coat

About this item

Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold

Best Suited For Heavy Duty Surface And Stop For High Traffic Interior And Exterior Doors.

Door Opening Size:

Butts Offset Pivots: 33-1/16 - 38

Center Hung Pivots: 36-1/16 - 41

Product Description & Features

Heavy-duty Interior or exterior doors

Doors are single acting

Non-handed

Slide track design

Recommended for high traffic, heavy abuse installations

Stop, friction stay or hold open function

Heavy shock absorber spring provides 5-7 compression before deadstop

Complete screw packet with thru-bolts for door, wood and machine screws for frame

Standard architectural finishes

Durable slider cam and shock block

110 maximum opening 1-3/4" minimum door thickness1-3/16" square channel

Stop function UL listed for fire door assemblies

Model: Norton Rixson 9-326 630,  9-326-630,  9 326 630,  9326630

Picture of Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold
Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold

Product code: 9-326

In Stock

$412.96

$412.96

Picture of Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold
Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold

Product code: 9-326

In Stock

$412.96

$412.96

Norton Rixson Checkmate 9-326 Surface Mount Overhead Stop And Hold

SKU: 9-326
