Product Details

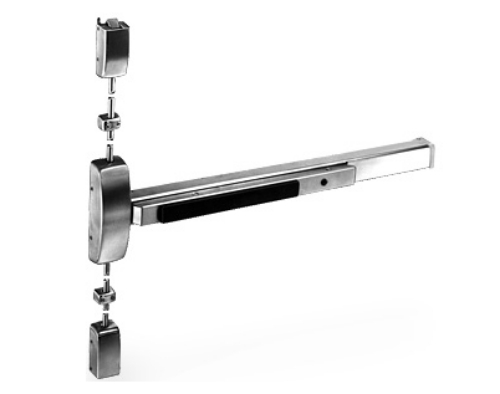

Sargent 8715-F Surface Vertical Rod Exit Device - Passage - Less Trim - 36"
Door Width: for 33" to 36" door widths, No cutting required for 36" door
Two point latching (top & bottom with adjustability through center case) Standard bottom latch compatible with latch track thresholds (by others) Single and double door applications Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listed Rods are 1/2" (13mm) brass, bronze or stainless steel Note: The 8700 Exit Device can not be used less bottom rodDoor TypesWood or metal 1 3/4" (44mm) minimum thickness
Strike646 Top Strike (Panic and Fire Rated) 624 Bottom Strike; 655 Fire Rated Bottom Strike
Dogging FeatureHex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts
Top & Bottom BoltBrass, Stainless steel
Device Centerline from41" (1041 mm) for Standard Applications; 38" (965mm) for elementary schools and to meet local accessibility standards when a 300 Series Auxiliary Control is used
Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)
ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)
Model:Sargent 12-8715-F, 128715F, 8715-F-10B, 8715F, 8715F-3, 8715-F-4, 8715-F-10, 8715F-32D, 8715-F-32D, 8715F-32, 8715-F-32
