Product Details

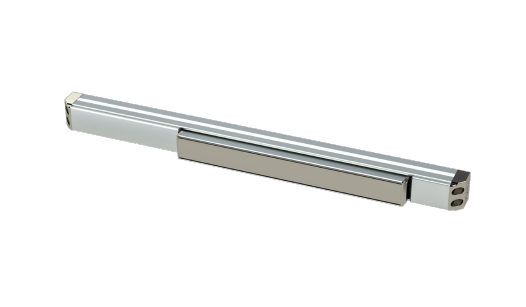

PDQ 6300D Grade 1 Architectural Wide Stile Dummy Exit Device, *For 36" Door*
The new 6300 device features a patent pending cush spring to quiet the device in both directions, flush end cap, nearly flush push bar when dogged, high strength chassis, and more. Our engineered strong and overbuilt exit device is sure to meet your needs.
Features:
- Rugged, reliable, flexible, and simple design.
- Designed & Assembled in Lancaster, PA.
- Patent Pending.
- Engineered strong and overbuilt for the most demanding environments.
- Durable, heavy-duty flush end cap is standard and resist prying
- Simple field door prep and installation.
- No exposed screws on back of bar.
- Wood and machine screws included with each device.
- Devices and trim are non-handed.
- Ten (10) year warranty.
Specifications:
Rail:
- Extruded aluminum.
Hand
- Device is non-handed.
Dogging
- Dogging standard .
- Active push bar, dog to make inactive.
Minimum*StileWidth
- 6300 - 3-1/2".
- 6400 - 2-1/8".
Door Thickness
- 1-3/4" - 2" .
Door Width
- 36"
Finishes
- 605 - Polished Brass, 606 - Satin Brass, 613 - Dark Bronze, 622 - Flat Black,
626 - Satin Chrome
- Optional Anti Microbial Coating available on 626, 630 & 630F.
Fasteners
- Includes machine and wood screws.
- SNB Optional.
Warranty
- Ten (10) year limited warranty.
ElectrifiedOptions*
- Request to Exit/Signal Switch.
- ISMC Connectors
Certifications Compliances Listings
- Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible
and Usable Buildings
- Meets requirements of the Buy American Act
