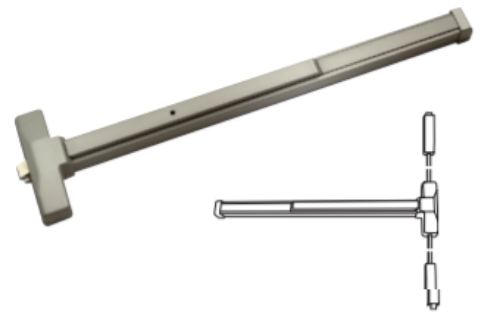

PDQ 4200V Commercial Wide Stile Surface Vertical Rod Exit Device

PDQ 4200V Commercial Wide Stile Surface Vertical Rod Exit Device

• Enlarged device head cover gives the appearance of a Grade 1 device.
• Trim matches Grade 1 XGT / GT and Grade 2 GP locks, providing a uniform appearance throughout the building.
• Flexibility on the job site, all trims are non-handed (except for grip pulls).
• Architectural plated finishes are available as well as painted finishes.
• No plastic components, device construction includes stainless steel latch bolt, and heavy gauge roll-formed stainless steel rail.

CHASSIS: Corrosion resistant plated steel. RAIL: Heavy gauge steel or stainless steel. LATCH:  SURFACE VERTICAL ROD (V)  Top Latch-Pullman with dead latching 5/8" throw - Bottom Latch- Pullman with 5/8" throw, held retracted during door swing. BACKSET: 2-3/4" Backset Compatible with 161 prep HAND: Device is non-handed . DOGGING: - Hex key dogging standard. -  Dogging not available on fire listed devices. MINIMUM STILE WIDTH: - 4-1/4" for device (exit only). - Minimum stile requirements with trim varies by trim type. DOOR THICKNESS: - 1-3/4" standard . DOOR WIDTH: - Standard for 3 ft doors, option available for doors up to 4 ft. FINISHES:  605 - Polished Brass, 626 - Satin Chrome, 630 - Satin Stainless Steel, 689 - Aluminum, 695 (N/A)- Duro Bronze, 696 - Gold. - Optional Anti Microbial Coating available on 626 and 630 finishes only. FASTENERS: - Includes machine screws and wood screws. -  Sex nuts supplied with all Fire Listed devices. WARRANTY: - Five (5) year limited warranty. CERTIFICATIONS, LISTINGS, COMPLIANCES: -  UL 305 listed for "Panic" , UL listed for "Fire Exit Hardware" labeled for up to 1-1/2 hours, 3;0" x 7;0" Max Size. - Complies with ADA (Americans with Disabilities Act) and ICC/ANSA 117.1 for Accessible and Usable Buildings. - Meets requirements of the Buy America Act.

PDQ 4200V, 4200 PDQ, 4200V PDQ, PDQ 4200, PDQ4200V, PDQ4200, 4200PDQ, 4200Vpdq, 4200, 4200V
