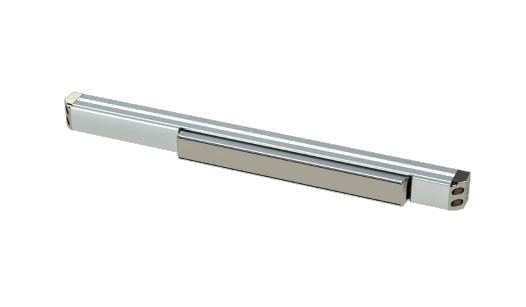

PDQ 6310D Grade 1 Architectural Wide Stile Dummy Exit Device, For 48" Door

PDQ 6310D Grade 1 Architectural Wide Stile Dummy Exit Device, For 48" Door

Product Details

PDQ 6310D Grade 1 Architectural Wide Stile Dummy Exit Device, *For 48" Door* The new 6300 device features a patent pending cush spring to quiet the device in both directions, flush end cap, nearly flush push bar when dogged, high strength chassis, and more. Our engineered strong and overbuilt exit device is sure to meet your needs.

Features:

Rugged, reliable, flexible, and simple design.
Designed & Assembled in Lancaster, PA.
Patent Pending.
Engineered strong and overbuilt for the most demanding environments.
Durable, heavy-duty flush end cap is standard and resist prying
Simple field door prep and installation.
No exposed screws on back of bar.
Wood and machine screws included with each device.
Devices and trim are non-handed.
Ten (10) year warranty.

Specifications:

Rail: - Extruded aluminum. Hand - Device is non-handed. Dogging - Dogging standard . - Active push bar, dog to make inactive. Minimum*StileWidth - 6300 - 3-1/2". - 6400 - 2-1/8". Door Thickness - 1-3/4" - 2" . Door Width - 48" Finishes - 605 - Polished Brass, 606 - Satin Brass, 613 - Dark Bronze, 622 - Flat Black, 626 - Satin Chrome - Optional Anti Microbial Coating available on 626, 630 & 630F. Fasteners - Includes machine and wood screws. - SNB Optional. Warranty - Ten (10) year limited warranty. ElectrifiedOptions* - Request to Exit/Signal Switch. - ISMC Connectors Certifications Compliances Listings - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings - Meets requirements of the Buy American Act

PDQ 6320 605, PDQ 6320 606, PDQ 6320 613, PDQ 6320 626, PDQ 6320 622 ,PDQ 6320605, PDQ 6320606, PDQ 6320613, PDQ 6320626, PDQ 6320622, PDQ 6320, PDQ 6320D, PDQ6320D, PDQ 6320DF, PDQ 6320DA, PDQ 6320DFA, PDQ6320, PDQ6320D, PDQ6320D, PDQ6320DF, PDQ6320DA, PDQ6320DFA, 6320 PDQ, PDQ 6320D, 6320D PDQ, 6320DFPDQ, 6320DA PDQ, 6320DFAPDQ, 6320PDQ, 6320DPDQ, 6320DPDQ, 6320DFPDQ, 6320DAPDQ, 6320DFAPDQ, PDQ 6320630, PDQ 6320D630, PDQ 6320D630, PDQ 6320DF630, PDQ 6320DA630, PDQ6320DFA630, PDQ6320, PDQ6320D, PDQ6320D, 605 - Polished Brass 606 - Satin BDass 613 - Oil Rubbed Bronze 630 622, 626, 630, 630F

PDQ 6310D Grade 1 Architectural Wide Stile Dummy Exit Device, For 48" Door

Name: PDQ 6310D Grade 1 Architectural Wide Stile Dummy Exit Device, For 48" Door
SKU: 6310D
Price: 516.36 USD
Availability: InStock

SKU: 6310D

In Stock

Chat

$516.36

$991.00

You saved $474.64

About this item

6300D - A dummy device with no latching. The device comes with an active push bar, but can also be dogged/ locked down with the included dogging kit. Order with a signal switch to operate a mag lock or other electronic devices. The device is commonly used on inside vestibule doors where latching is not required, or as an electrical switch for an auxiliary device.
