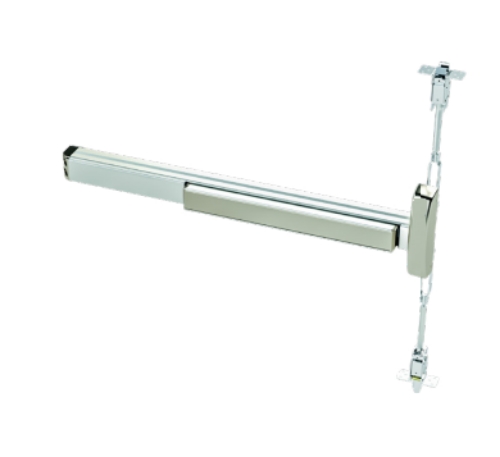

PDQ 6420V Grade 1 Architectural Narrow Stile Surface Vertical Rod Exit Device, 24" Door

PDQ 6420V Grade 1 Architectural*NarrowStile Exit Device, 24" Door*

The new 6300/6400 device features a patent pending cush spring to quiet the device in both directions, flush end cap, nearly flush push bar when dogged, high strength chassis, and more. Our engineered strong and overbuilt exit device is sure to meet your needs.

6400V/VF- Narrow Stile SVR exit device with 3/4" toggle latch top. Use for narrow stile double door applications, or when a narrow look is preferred.

Features:

• Rugged, reliable, flexible, and simple design.
• Designed & Assembled in Lancaster, PA.
• Patent Pending.
• Quiet operation - large heavy-duty spring cushion quiets both the compression/extension of the push bar.
• Internal compression spring ensures long lasting push bar return.
• Engineered strong and overbuilt for the most demanding environments.
• Durable, heavy-duty flush end cap is standard and resist prying.
• Stands up to cart abuse, heavy-duty flush end cap and tapered push bar designed to deflect hits and minimize damage.
• Simple field door prep and installation.
• Dogging holds bar in a retracted position nearly flush with head cover and rail.
• Hex Key provided to lock and unlock the device.
• No exposed screws on back of bar.
• True 2-3/4"  backset (with 5/8" frame stop and 1/8" door gap)
• Wood and machine screws included with each device.
• Devices and trim are non-handed.
• Ten (10) year warranty. *Specifications: *

Rail  - Extruded aluminum. - Specify 630F for full stainless surfaces (roll formed). Latch - Top - Stainless Steel 3/4" toggle. - Bottom - 5/8" Travel Drop Bolt.  - Less bottom rod option. Hand - Device is non-handed. - Trim is non-handed or field reversible. Dogging  - Hex key dogging standard. - Cylinder dogging optional. - Dogging not available for fire labeled devices. Minimum Stile Width - 6300 - 3-1/2" - 6400 - 2-1/8". Door Thickness  - 1-3/4" - 2". Door Width  - 24", Door Height  - Panic - Up to 10' . Strike:Default strikes only - Cast top strike, plate bottom strike. Finishes(Bold finishes  are available immediately). 613 - Dark Bronze,622 - Flat Black,*626 - Satin Chrome,*630 - Satin Stainless Steel. - 605 - Polished Brass, 606 - Satin Brass, 630F - Full Satin Stainless Surfaces - Optional Anti Microbial Coating available on 626, 630 & 630F. Fasteners  - Includes machine and wood screws - SNB Optional. Warranty - Ten (10) year limited warranty. Electrified Options  - Motorized Latch Retraction. - Request to Exit/Signal Switch. - Alarmed Exit - Specify Handing - Latch Bolt Monitor  - ISMC Connectors -MLR Can be combined with LM -AL can be combined with LM -MLR and AL cannot be combined Certifications, Compliances, Listings - Listed for UL 305 'Panic', listed for UL 10C 'Fire Exit Hardware' up to 3 hours. - ANSI/BHMA A156.3 Grade 1 - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings - Meets requirements of the Buy American Act
