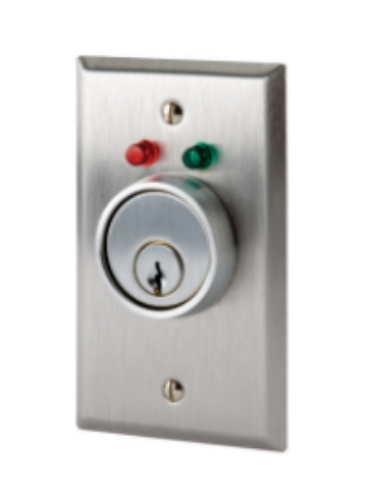

PDQ 81310-2 62 Single Gang Wall Mount Key Switch

About this item

PDQ 81310-2 Single Gang Wall Mount Key Switch

Specs

KEY SWITCH:
Maintained or Momentary.
FEATURES:
Includes #6-32 x 1/2" FHMS TR Torx Tamper Resistant Security Faceplate Screws.
2 indicators, 1-red and 1-green.
Mortise cylinder not included.
Anti-rotation cylinder security.
FACEPLATE:
630 (32D) Satin Stainless Steel faceplate.
Dimensions: 1-3/4" W x 4-1/2" H.
ELECTRICAL RATINGS:
DPDT contact configuration.
Switch Contacts: 4A @ 30VDC.
LED Red and Green indicators: 24 VDC.

81302MT PDQ, 81302MM PDQ, PDQ 81302MT, PDQ 81302MM, PDQ81302, 81302PDQ, 8100 PDQ, PDQ 8100, PDQ8100, 8100PDQ, 81302MT, 81302MM, 81302MM/MM, 81302MM/MM PDQ, PDQ 81302MM/MM
