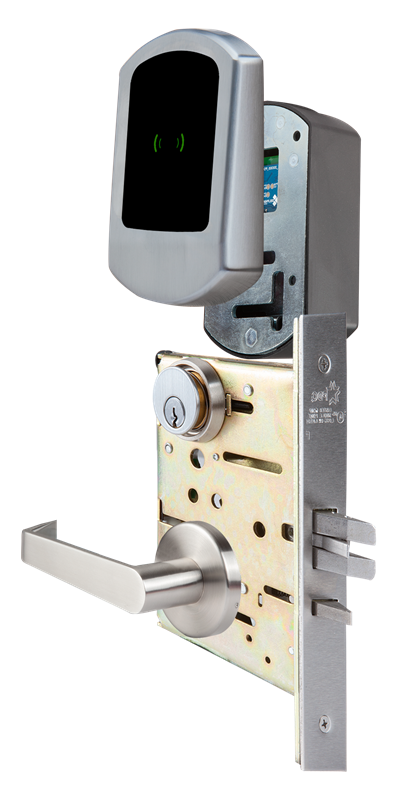

PDQ MRS-SP-N-116, Spirit Series - NFC Credential - Entrance Function

PDQ MRS-SP-N-116, Spirit Series - NFC (Near Field Communication) *Credential - Entrance Function*

Function:116 -Entrance

Credential:NFC - Smartphone

Latchbolt operated by lever from either sideKey outside retracts latchboltOutside lever is momentarily unlocked by a valid credentialOutside lever is relocked after predetermined time as managed by the administratorInside lever always retracts the latchbolt and allows unimpeded egress

Features:

Built from PDQ's World-Class MR Series Grade 1 Mortise LockDesigned for quick installation4 AA Alkaline batteries last up to 2 years or 5V DCAble to schedule specific access windowsLog and track access events and statusEnable auto lock/unlock for enhanced securityBattery status and low battery alertsDo not disturb mode that temporarily blocks accessKey override lets you know when the key has been usedLatchbolt monitor lets you know when the lock has been usedMonitor egress with request to exit function

Specifications:

DOOR THICKNESS: - 1-3/4" (Standard) -  2" - 2-1/4" (Optional)

KEYWAYS: - Conventional - SFIC - LFIC - High Security - UL437

STRIKE:ASA

BACKSET:2-3/4"

CREDENTIAL COMPATIBILITIES: - Prox (Optional)- MIFARE DESFire EV1/EV2/EV3/Light - MIFARE Ultralight EV1/AES - MIFARE Classic

Handing:Field reversible

COMMUNICATION: - BLE 4.2 - BLE 5.2 - WiFi 2.4 GHz 802.11 b/g/n (Optional)

ENCRYPTION: - AES 256

BATTERIES REQUIRED: - 4 AA Alkaline Batteries

OPERATING TEMPERATURES: - -20C to 65C - 0-95% Humidity (Non-Condensing)

CERTIFICATIONS & COMPLIANCES: - FCC Part 15  - UL/cUL 10C 3-Hour - Complies with ADA (Americans with Disabilities Act)

MODES: - Standalone - Online

FINISHES: - 606 (US4), 613E, 622 (US19), 630 (US32D)

WARRANTY: - Limited Lifetime Mechanical / Two (2) year Electronics

COUNTRY OF ORIGIN: - Assembled in USA
