Pemko 171A Saddle Threshold - 1/2" x 5" Mill Finish Aluminum - 72"

Pemko*171A Saddle Threshold - 1/2" x 5" Mill Finish Aluminum  - 72"*

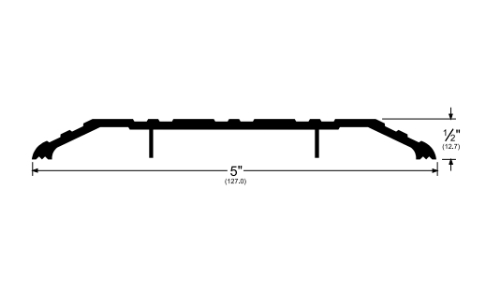

LENGTH:72"

WIDTH: 5" (127 mm)

HEIGHT:1/2" (12.7 mm)

PRODUCT APPROVALS:

 • ADAAG-1998 (Amended); ICC/ANSI A117.1 and California Building Code, Title 24 for Barrier-Free Entry.

 • Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.

ANSI NUMBER:Aluminim: J32100, J32130;

CROSS REFERENCE:

 Draftseal: DS500; Hager 412; NGP: 425; Reese: S104, S205; Zero: 545; K N Crowder: CT-10
