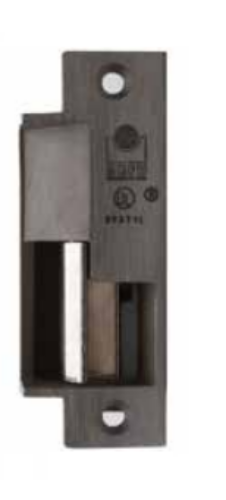

Rofu 1430-01-US32D High Security Electric Strike For Metal/Alum Door - 1 1/4" x 4 7/8" - Satin Stainless Steel

Rofu 1430-01-US32D High Security Electric Strike For Metal/Alum Door - 1 1/4" x 4 7/8"  - Satin Stainless Steel

For use with most Schlage, Sargent and Yale (except 7800) High Security Mortise Locksets. For Commercial, New and Retrofit Uses

Latch Opening is Below Center Line (BCL) andopening starts 3/8″ below center line

Description & Features:

1430-01= 3-6VDC or 8-16VAC Fail Secure

ANSI/BHMA A 156.5  (1 1/4″ x 4 7/8″) fit cutout Specification A 115.1 (with slight jamb modification)

Stainless Steel – Made in USA

Frame Type – Hollow Metal or Aluminum Jamb

Corrosion – Resistant Housing and Moving Parts

Tamper Strength of 1700 pounds

Cycle Test of 500,000 cycles

Keeper depth of 5/8″, maximum latch projection possible with 1/8″ of door/frame clearance 3/4″

Strike depth of 1.50″ overall

Limited Warranty – 36 Months (3 years)

PoE Friendly!
