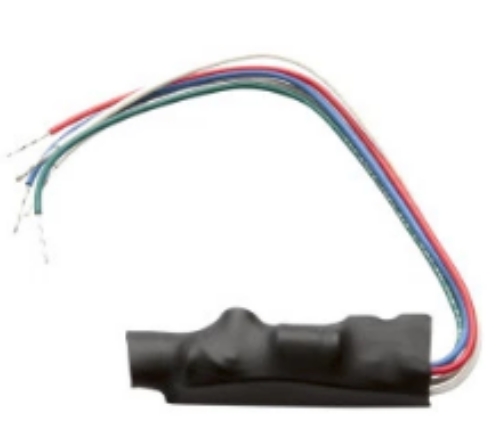

ROFU 9964 Time Delay Module

About this item

ROFU 9964 Time Delay Module

Features & Description:

Re-lock time delay module, adjustable from 0-60 seconds with built in LED for adjusting the re-lock time delay

It’s small enough to fit behind just about any button, key switch or mushroom button

Made in the USA  *Patent pending

Dimensions: 2.0"L x 0.6"W x 0.6"H (22 AWG input/output color coded wire leads 6" long)

Input power wiring: White wires AC/DC (non polarized)

Input power: 12 – 24 Volts AC/DC (30 volts maximum)

Current draw: 21 milliamps max DC or 52 milliamps max AC

Output relay: SPDT dry contacts – rated 1 AMP @ 30 VDC (Blue, Red & Green wires)

Timing range: Timer pot adjustable from 0 to 60 seconds

Additional features:

Bi-Colored LED installed for “visual" programming of the 0-60 second time delay

Shrink wrapped to protect the components during shipping and installation

Operation:

Time relay used for either Fail-Safe or Fail Secure bypass or time delay control applications

Time relay requires constant power and it has to be wired into normally closed circuit

Application of input power or momentary interruption of input power to the 9964 starts timing cycle

LED is lit Red during inactive “non-timing" operation

LED switches to Green during timing cycle – returns to Red after timing cycle

Blue wire is common Relay wiper contact

Blue Relay wiper wire is closed to Red Relay wire during non-timing operation (LED Red)

Blue Relay wiper wire is closed to Green Relay wire during timing cycle (LED Green)

Clockwise rotation of timer pot increases timing cycle
