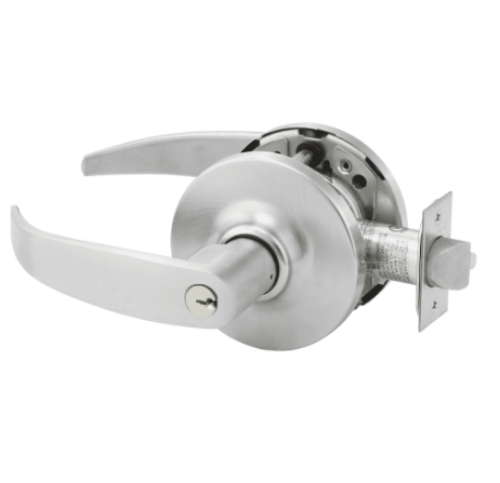

Sargent 10G17 Utility, Asylum or Institutional Lock

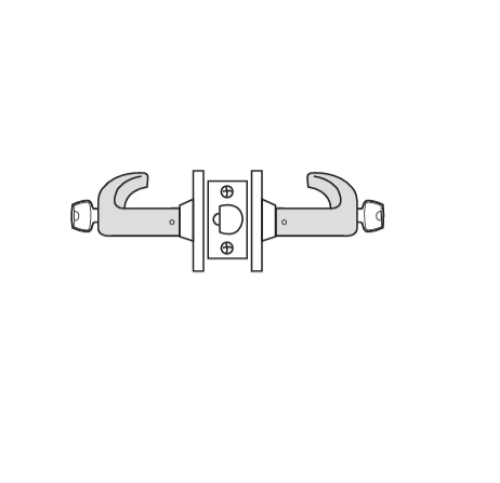

The Sargent 10G17 is a heavy-duty cylindrical institutional lock from the Sargent 10 Line Grade 1 platform, the ANSI/BHMA Grade 1 commercial standard specified across hospitals, schools, behavioral health units, correctional facilities, and government buildings. The 10G17 carries ANSI function code F87 (utility, asylum, or institutional lock). Both levers stay rigid at all times, the latch deadlocks, and the lock is operated by key from either side: the inside key unlocks the inside lever and the outside key unlocks the outside lever. There is no thumbturn or push-button override. Sargent's published guidance is explicit: use the 10G17 only on rooms with more than one exit, since neither lever provides free egress without a key. SKU 10G17. ANSI A156.2 Series 4000 Grade 1, UL Listed (US and Canada), UL 10C 3-hour fire rated, ADA compliant, California Title 19/24 compliant. 7-year limited warranty. In stock.

What ANSI F87 Means and When to Specify It

F87 is the highest key-control function in the Sargent 10 Line. Every other 10 Line function (passage, classroom, storeroom, entry, office) gives at least one side free egress through a lever or thumbturn. F87 does not. That is the entire point of the institutional function: to prevent uncontrolled passage from either side of the door. Specify the 10G17 for secure utility rooms (electrical, mechanical, IT closets), behavioral health and seclusion rooms with secondary exits, asylum and patient rooms in psychiatric and correctional medical facilities, drug storage rooms, evidence rooms, and any room where free egress with a lever is a security or safety risk and a secondary exit exists. Do not specify the 10G17 on single-exit rooms or any room a person could be trapped inside.

Specifications

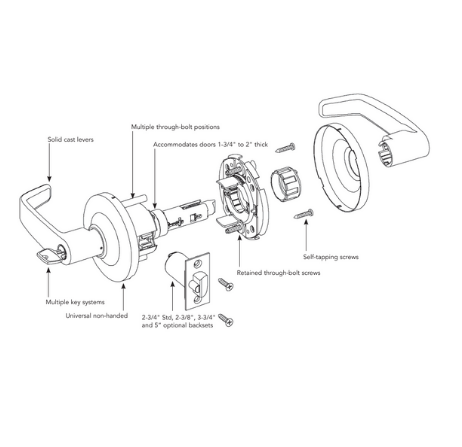

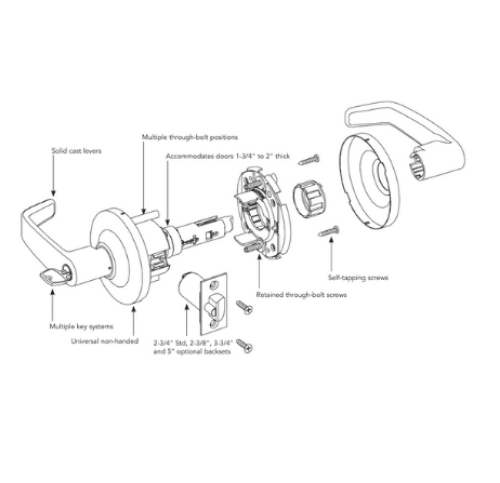

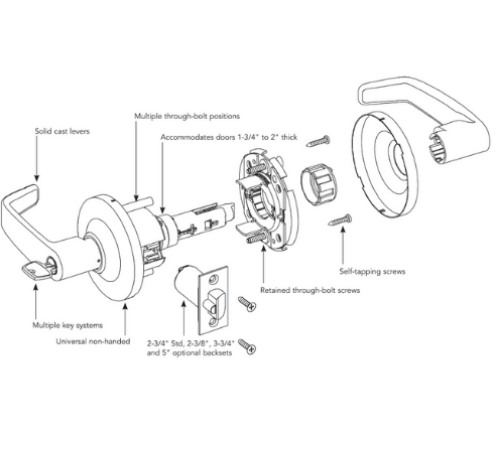

Function: ANSI F87 utility/asylum/institutional, deadlocking latch, both levers rigid, key from either side. Door thickness: 1-3/4" to 2" (35 mm 1-3/8" with adapter plates). Backsets: 2-3/8", 2-3/4", 3-3/4", and 5". Latchbolt throw: 1/2" standard; 3/4" with 41- prefix on paired doors. Front: wrought brass, bronze, or stainless steel, 2-1/4" x 1-1/8" (57 mm x 29 mm). Strike options: 800 curved lip strike 2-3/4" x 1-1/4" x 1-1/4" (T strike), or 808 curved lip ANSI strike 4-7/8" x 1-1/8" x 1-1/4". Cylinder: brass, 6-pin, LA keyway standard. 26 keyway options available (LA/LB/LC/LE/LF/LG/LJ/LK/LL, HA/HB/HC/HE/HF/HG/HJ/HK/HL, RA/RB/RC/RE/RF/RG/RJ/RK/RL). Cylindrical housing: steel, zinc dichromate. Roses: heavy wrought brass and bronze. Minimum stile: 4-1/2" (114 mm). Keys: 2 nickel silver standard. Compliance: ANSI/BHMA Certified A156.2 Series 4000 Grade 1, UL Listed US/Canada, UL 10C and UBC 7-2 (1997) positive pressure 3-hour fire rated (paired doors require 41- option), ADA, California Title 19/24 (L/J/P levers). 7-year limited warranty.

Lever, Finish, and Strike Options

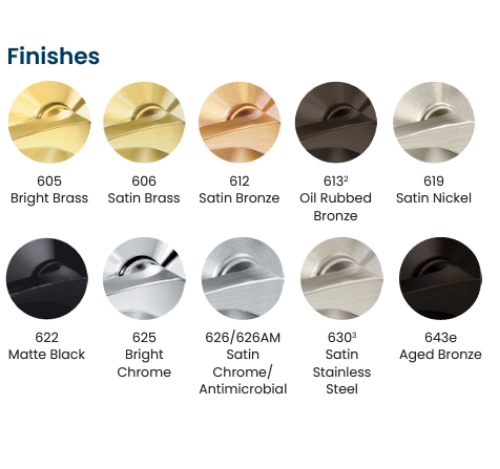

Four lever designs: LL (L Lever L Rose), LJ (J Lever L Rose), LB (B Lever L Rose), LP (P Lever L Rose). Six finishes: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Oil Rubbed Bronze, 625 (US26) Bright Chrome, 626 (US26D) Satin Chrome. Two strike options: 800 T strike or 808 ANSI strike. Freewheeling Locked Lever option (FW) available for vandalism resistance and added security; not available with J Lever.

Cylinder, IC Core, and Keying Options

Standard configuration ships with a Sargent 6-pin brass conventional cylinder in the LA keyway. Less Cylinder (LC) available for facilities with existing cylinder inventory. Interchangeable core options: 60- prefix for Sargent Large Format IC (less core), 70- prefix for Small Format IC (less core). Keying: KA Keyed Alike, MK Master Keyed, plus Construction Master Keying available. SKU prefixes: 28- for select keyway configurations, 2860- for 60 IC, 2870- for 70 IC.

Where This Sits in the Sargent Catalog

The 10G17 lives in the Sargent 10 Line Grade 1 family under Sargent Lever Locks within Cylindrical Lever Locks in the Commercial Locks catalog. For the matching passage function (free passage both sides, no locking) on the same 10 Line platform, see the Sargent 11U15 Grade 1 Passage Cylindrical Lock.
