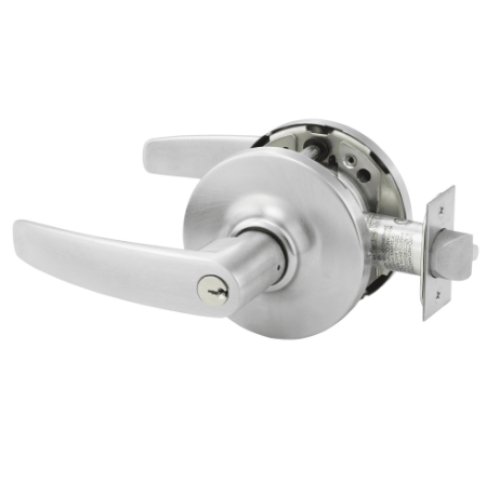

Sargent 10G54 Corridor, Dormitory Lock

Sargent 10G54 Corridor, Dormitory Lock

ANSI - F90

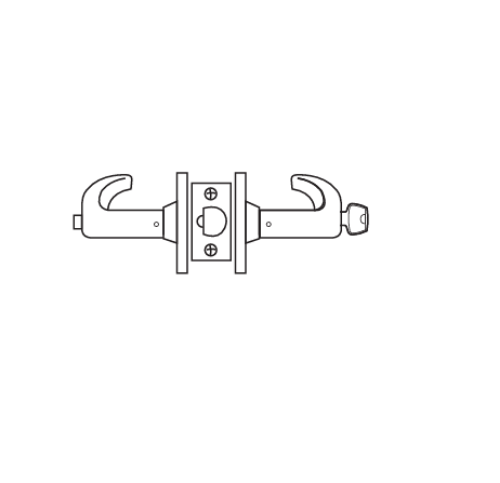

Deadlocking latch.Latch by either lever unless outside lever islocked by push button inside or key outside.Rotating inside lever or closing door releasesinside button only, but does not unlock theoutside lever if locked by key.Key outside locks or unlocks outside lever andalso retracts latchbolt when locked

Meets and greatly exceeds ANSI A156.2 Series 4000 - Grade 1

Lever: LLL Lever L Rose,LJJ Lever L Rose,LBB Lever L Rose,LPP Lever L Rose

Finishes:US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Dark Oxidized Satin Bronze, Oil Rubbed, US26 (625) Bright Chromium Plated, US26D (626) Satin Chromium Plated

Accommodates doors 1-3/4" to 2" thick (1-3/8" (35mm) thick door, 1- Option for Adapter plates)

Available with 2-3/8", 2-3/4", 3-3/4" and 5" backsets

1/2" latch bolt throw standard; 3/4" throw (41- prefix) for pairs of doors

Front: Wrought brass, bronze or stainless steel2-1/4" x 1-1/8" (57mmx 29mm)

Strike: Wrought brass, bronze or stainless steel 800 curved lip strike 2-3/4" x 1-1/4" x 1-1/4" or 808 curved lip ANSI strike 4-7/8" x 1-1/8" x 1-1/4"standard

Cylinder: Brass, 6-pin, LA keyway standard.

Keying Features Available:**Master keying, Construction master keying, Interchangeable core (IC).

Keys:Two nickel silver standard

Freewheeling Locked Lever Option Available (FW),Provides protection from vandalism and added security (Not available inJLever Design)

7 year limited warrantyno service required to maintain warranty

Model:Sargent, 10G54, 2810G54, 286010G54, 287010G54, 10G54LL, 2810G54LL, 286010G54LL, 287010G54LL, 10G54LP, 2810G54LP, 286010G54LP, 287010G54LP, 10G54LB, 2810G54LB, 286010G54LB, 287010G54LB, 10G54LJ, 2810G54LJ, 286010G54LJ, 287010G54LJ

Sargent, US26D, 626, 10G54LL26D, 2810G54LL26D, 286010G54LL26D, 287010G54LL26D, 10G54LP26D, 2810G54LP26D, 286010G54LP26D, 287010G54LP26D, 10G54LB26D, 2810G54LB26D, 286010G54LB26D, 287010G54LB26D, 10G54LJ26D, 2810G54LJ26D, 286010G54LJ26D, 287010G54LJ26D

Sargent,  US26, 625, 10G54LL26, 2810G54LL26, 286010G54LL26, 287010G54LL26, 10G54LP26, 2810G54LP26, 286010G54LP26, 287010G54LP26, 10G54LB26, 2810G54LB26, 286010G54LB26, 287010G54LB26, 10G54LJ26, 2810G54LJ26, 286010G54LJ26, 287010G54LJ26

Sargent, US10, 612, 10G54LL10, 2810G54LL10, 286010G54LL10, 287010G54LL10, 10G54LP10, 2810G54LP10, 286010G54LP10, 287010G54LP10, 10G54LB10, 2810G54LB10, 286010G54LB10, 287010G54LB10, 10G54LJ10, 2810G54LJ10, 286010G54LJ10, 287010G54LJ10

Sargent, US10B, 613, 10G54LL10B, 2810G54LL10B, 286010G54LL10B, 287010G54LL10B, 10G54LP10B, 2810G54LP10B, 286010G54LP10B, 287010G54LP10B, 10G54LB10B, 2810G54LB10B, 286010G54LB10B, 287010G54LB10B, 10G54LJ10B, 2810G54LJ10B, 286010G54LJ10B, 287010G54LJ10B

Sargent, US3, 605,10G54LL3, 2810G54LL3, 286010G54LL3, 287010G54LL3, 10G54LP3, 2810G54LP3, 286010G54LP3, 287010G54LP3, 10G54LB3, 2810G54LB3, 286010G54LB3, 287010G54LB3, 10G54LJ3, 2810G54LJ3, 286010G54LJ3, 287010G54LJ3

Sargent, US4, 606, 10G54LL4, 2810G54LL4, 286010G54LL4, 287010G54LL4, 10G54LP4, 2810G54LP4, 286010G54LP4, 287010G54LP4, 10G54LB4, 2810G54LB4, 286010G54LB4, 287010G54LB4, 10G54LJ4, 2810G54LJ4, 286010G54LJ4, 287010G54LJ4

Specifications

Cylindrical Housing -Steel, zinc dichromate finish

Roses -Heavy wrought brass and bronze

Minimum Stile:4-1/2" (114mm)

Certification Compliance

ANSI/BHMA Certified ANSI A156.2 Series 4000 - Grade 1

UL UL listed to U.S.A. and Canadian safety standards Listed for 3 hour doors (double doors require 41 - option)

Positive Pressure Meets UL 10C and UBC 7-2 (1997)

ADA All levers conform to ADA requirement for barrier-free accessibility

California Code Levers (L, J & P) conform to California Administrative Code Title 19 and 24
