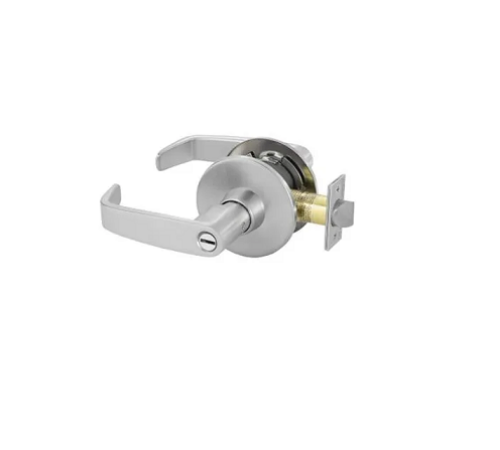

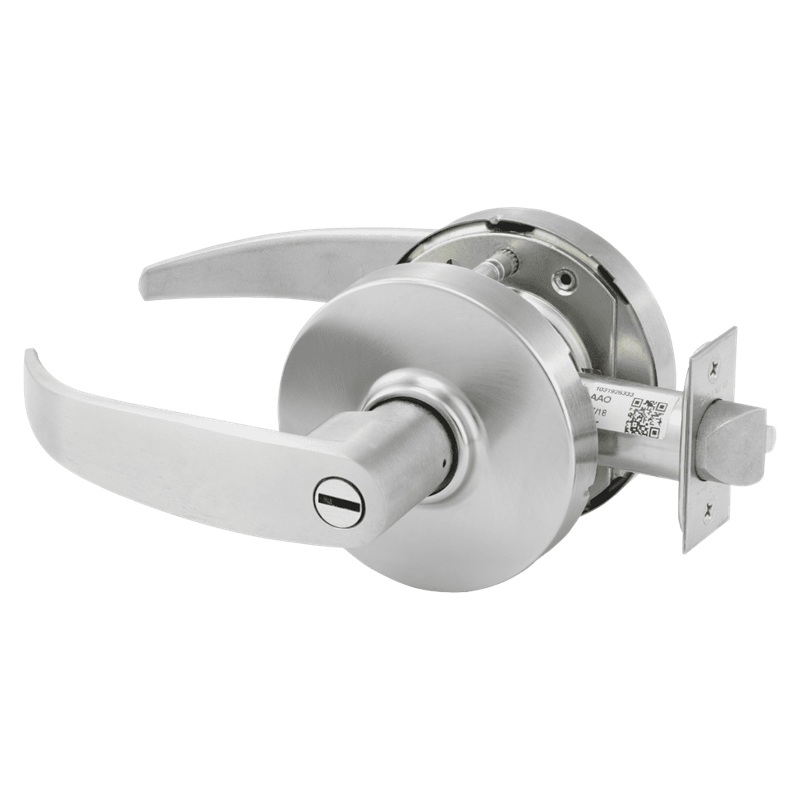

Sargent 10XU65 Grade 1 Privacy/Bathroom Cylindrical Lock, Non-Keyed

Sargent 10XU65 Grade 1 Privacy/Bathroom Cylindrical Lock, Non-handed, Non-Keyed

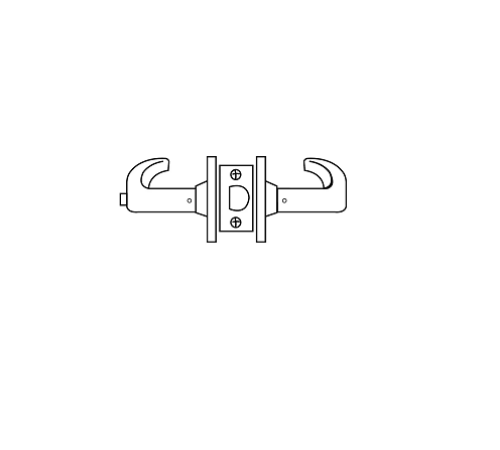

Function: 10XU65 -  Passage - ANSI No. F76A- Latch by either lever unless outside lever is locked by push button in inside lever- Turning inside lever or closing door releases button- Emergency cointurn in outside lever releases inside button

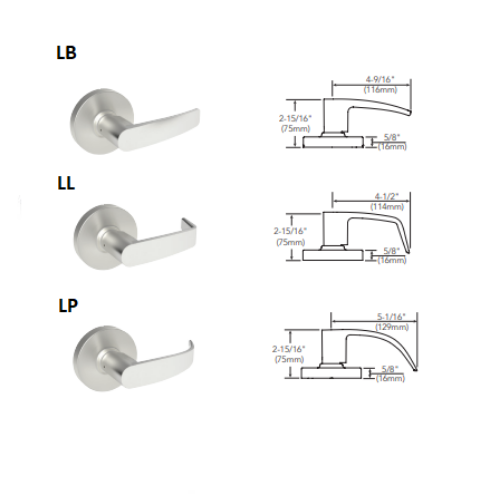

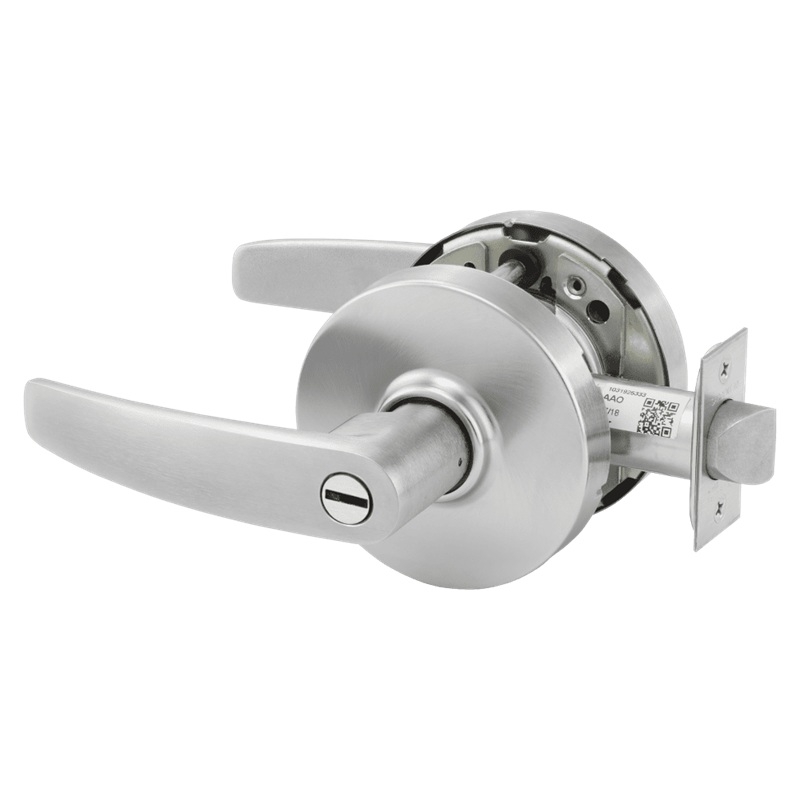

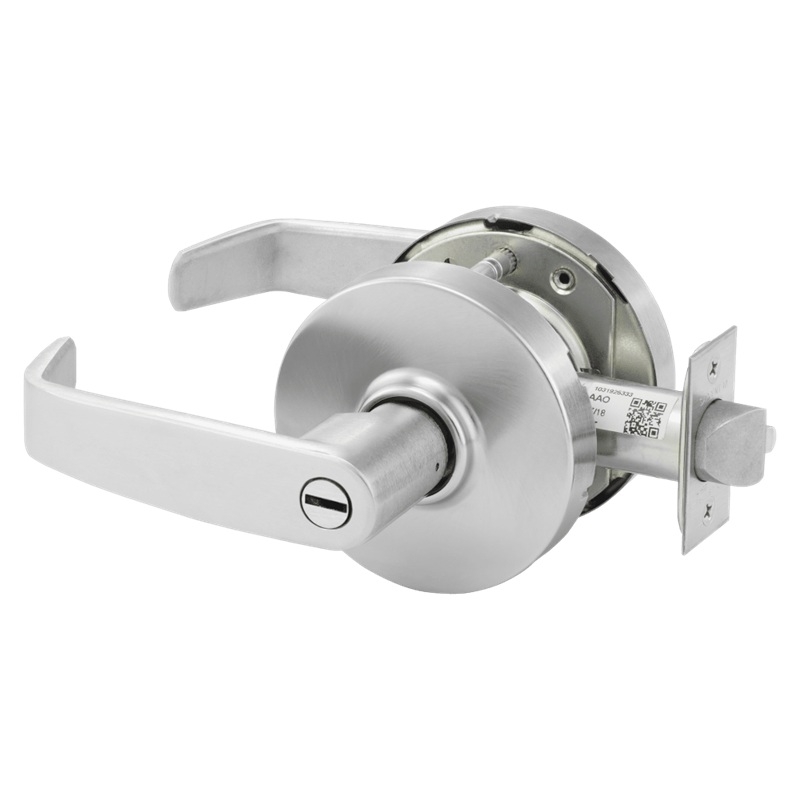

Lever: L - Standard

Rose: L - Standard

Applications: Heavy duty commercial and institutional interior and exterior doors, Offices, Schools/Universities, Hospitals, Manufacturing facilities, Government

Features: Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements) Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements) UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148) Utilizes Eco Flex technology on all electromechanical functions, creating up to 92% energy savings Innovative push/turn button design prevents damage from door stops and walls 26 mechanical and 2 electromechanical functions offered Available in 15 finishes with multiple lever designs Lockbody design supports all cylinder formats - from fixed to interchangeable core - and all SARGENT Key Systems Windstorm certified to comply with Florida Building Code requirements & UL listing

Benefits: Provides maximum resistance to vandalism and other malicious attacksComplements the look of any design style Minimizes inventory stocking requirements Simplifies installation in new and retrofit applications Integrates with new or existing facility's key systems

Model: Sargent 10XG05LL26D

ANSI/BHMA Code: A156.2

Backset Depth (Standard): 2 3/4"

Cylinder Format: Large Format, Small Format, Conventional

Cylinder Pins: 6 pin, 7 pin

Door Thickness (Standard): 1 3/4"

Grade: Grade 1

Handing: Non-handed

Latchbolt Throw: 1/2"

Maximum Backset: 5"

Minimum Backset: 2 3/8"

Maximum Door Thickness: 2"

Minimum Door Thickness: 1 3/8"

Number of Keys: 2Strike Type (Standard): T-Strike Curved Lip

UL Listed: Yes

ULC Listed: Yes

Warranty: 10-year limited warranty; 2-year for electrical components

Certifications: ANSI/SDI 250.13 CertifiedASTM E330 Certified Florida Building Code Approved FL# 2998 Americans with Disabilities Act (ADA) Compliant UL-c UL Fire-Rated Up to 3 Hours ASTM E1996 Certified ASTM E1886 Certified NFPA 80 Compliant TAS 201 Certified TAS 202 Certified TAS 203 Certified ICC A117.1 Compliant UL 437 listed when using Degree high-security UL 437 cylinders ANSI/BHMA A156.2, Series 4000, Grade 1 ANSI/BHMA A156.41
