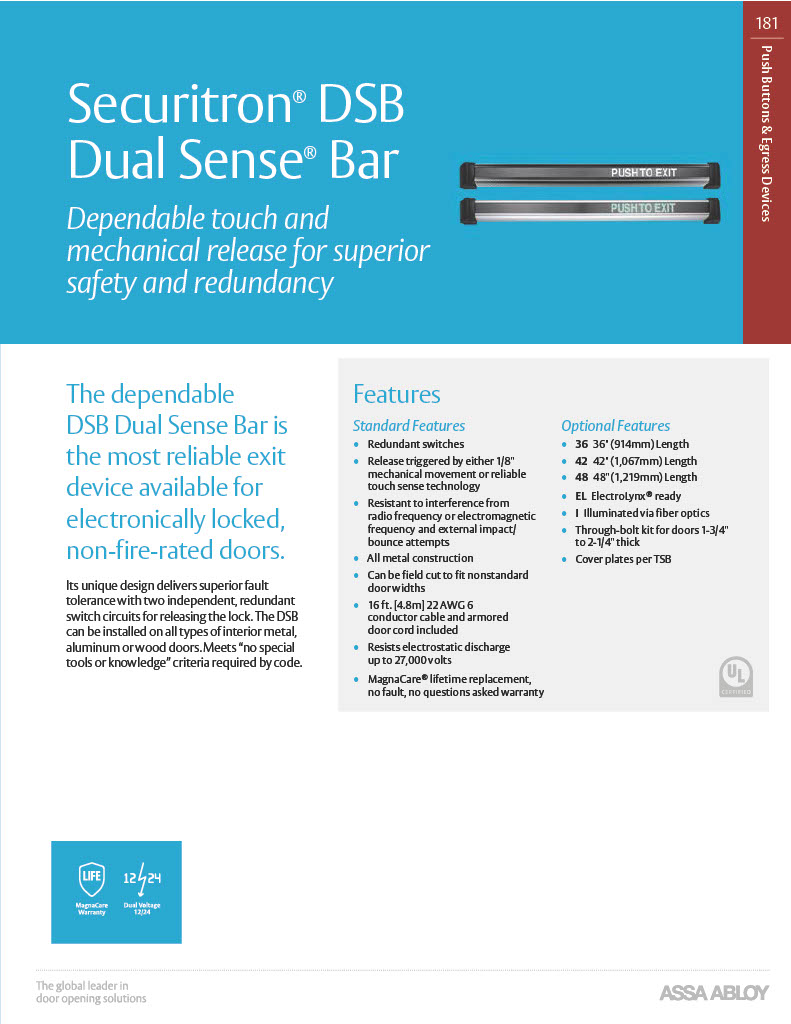

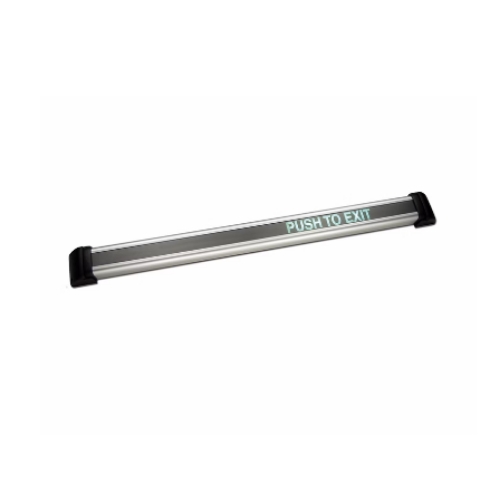

Securitron DSB-CLI - Dual Sense Bar - Illuminated Sign - Clear Anodized - 36"

Securitron DSB-CLI - Dual Sense Bar - Illuminated - Clear Anodized - 36"

illuminated "Push To Exit" via internal fiber optic strip

Features:

The most dependable exit device available for magnetically locked openingsLess than 1/8" mechanical movement and ultra-reliable touch sense technology working together in a single exit barStandard length: 36"Touch sensing and redundant movement-activated switches complies with current fire and life safety egress codesResistant to interference from radio frequency or electromagnetic frequency and external impact/ bounce attemptsCan be field cut to fit non-standard door widthsCircuit board is immune to electrostatic discharge - switching power supplies, proximity and garment readers and neon signsAll metal construction will stand up to rugged interior environments16 ft. [4.8m] 22AWG 6 conductor cable and armored door cord includedAvailable ElectroLynxreadyOperates on either 12 or 24VDCTested to 27,000 volts electrostatic dischargeMagnaCare Lifetime Replacement No Fault WarrantyUL Listed

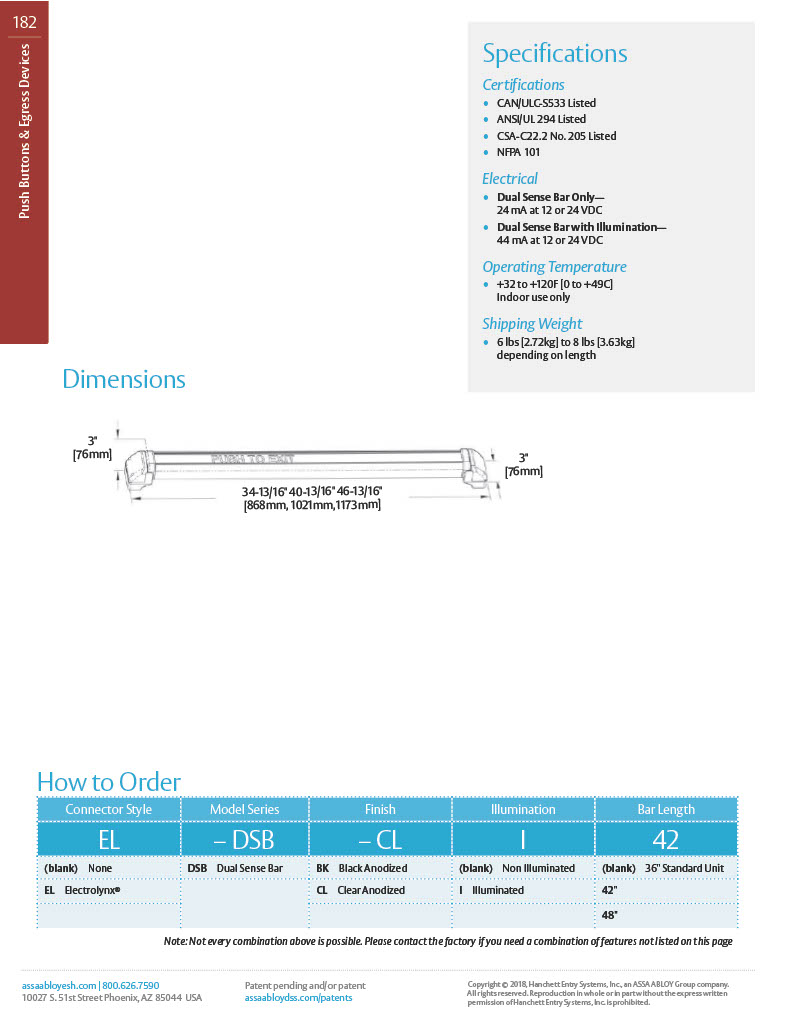

Current Draw and Voltage: Dual Sense Bar Only - 24mA Dual Sense Bar with Illumination - 44mA

Voltage: 12 or 24VDC

Operating Temperature: +32 to +120F [0 to +49C] Recommended for indoor use

Shipping Weight: 6 to 8 lbs. depending on length

Finishes: CL - Clear Anodized

Model:DSBCLI

CAN/ULC - S533 ListedANSI/UL 294 ListedCSA - C22.2 No.205 ListedNFPA 101
