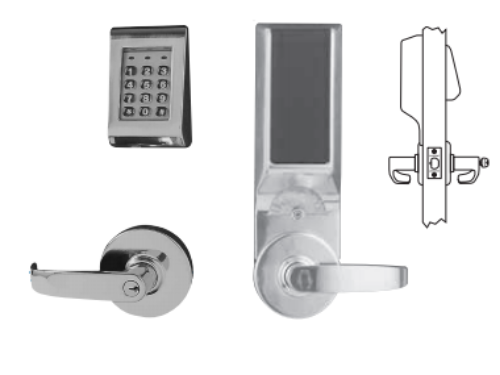

Sargent 28-KP10XG77 Keypad Stand Alone Cylindrical Lock W/ Key override standard feature

Sargent 28-KP10XG77 Keypad Stand Alone Cylindrical Lock W/ Key override standard feature

Cylindrical Lock Functions

Key outside always retracts latchLever outside rigid except when valid credential presentedLever inside always retracts latchGuardbolt deadlocks latchKey override standard with #C10X-E1 cylinder suppliedLow battery (for IN120), request-toexit (REX), Door Position (DPS), and tamper signaling standardDoor Position Switch (DPS, P/N 52-5373) supplied

Non-Handed

Easily programmable at keypad

Operating temperature for keypad: 4 Degree F – 140 Degree F

Operates with 4 “C" alkaline batteries (included)

Low battery indication - four chirps after code entry

External battery input connector included to power unit in case of battery failure

100 user codes - over 1,100,000 possible user combinations

One master code - assigns emergency, supervisory, and user codes

‘One Time’ user codes allows visitors ‘one time’ entry

Unit can be put in ‘passage only‘ mode at keypad

One supervisory code - allows temporary lockout of selected users, changes unlock time duration, requests infrared interrogation output, and may add user codes

Operates utilizing any one to six digits per code - digits may be repeated or start with ‘0’

Entry of three wrong user codes in succession disables all codes for ten seconds

Piezo horn sounds with each keystroke or can be disabled through master or supervisory codes

UL listed for fire doors

UL listed to Canadian safety standards

Mechanical Features

Meets ANSI A156.2 Grade 1 requirements

Motor driven 10 line cylindrical lock

2-3/4" (70mm) backset standard

Strike: 808 curved lip ANSI strike 4-7/8" x 1-1/8" x 1-1/4" standard

key override standard

For 1-3/4" (44mm) thick doors standard

Model:Sargent, KP10XG77, 28KP10XG77, 2860KP10XG77, 2870KP10XG77, KP10XG77LL, 28KP10XG77LL, 2860KP10XG77LL, 2870KP10XG77LL, KP10XG77LP, 28KP10XG77LP, 2860KP10XG77LP, 2870KP10XG77LP, KP10XG77LB, 28KP10XG77LB, 2860KP10XG77LB, 2870KP10XG77LB, KP10XG77LJ, 28KP10XG77LJ, 2860KP10XG77LJ, 2870KP10XG77LJ

Sargent, US26D, 626, KP10XG77LL26D, 28KP10XG77LL26D, 2860KP10XG77LL26D, 2870KP10XG77LL26D, KP10XG77LP26D, 28KP10XG77LP26D, 2860KP10XG77LP26D, 2870KP10XG77LP26D, KP10XG77LB26D, 28KP10XG77LB26D, 2860KP10XG77LB26D, 2870KP10XG77LB26D, KP10XG77LJ26D, 28KP10XG77LJ26D, 2860KP10XG77LJ26D, 2870KP10XG77LJ26D

Keypad made of ultraviolet stable textured material

Infrared link to DTD to view audit trials

Three LED’s on keypad - green indicated unlocked - yellow indicates programming mode, flashing green and yellow indicates deadbolt thrown

Unlock time adjustable

Built-in remote ‘Request to Enter’ requires connector

Mechanical FeaturesHeavy duty lever spring return rose assembly

Steel spacer bushing and extended one-piece bearing sleeves

Steel mounting studs
