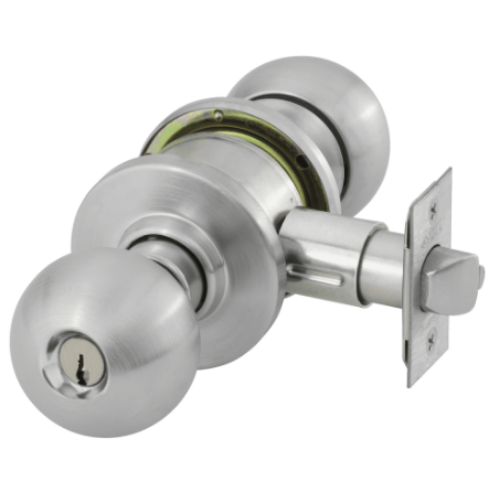

Sargent 6G04 Grade 2 Store/Closet Cylindrical Lock

Sargent 6G04 Storeroom Knob Lock**-ANSI F86

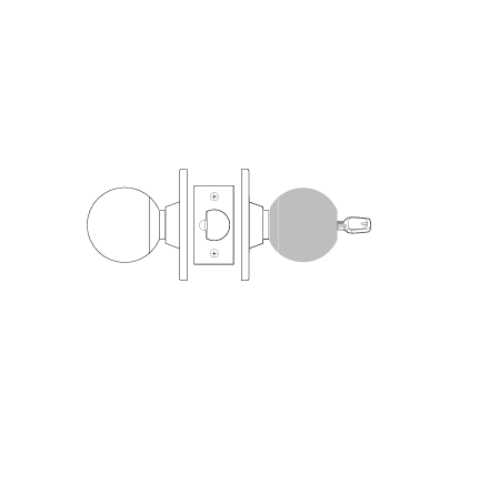

Key outside retracts latch Knob outside rigid at all times Knob inside retracts latchbolt Deadlocking latch

Knob & Rose:Heavy wrought brass and bronze

Door Thickness:fits doors from 1-3/8" (35mm) to 1-3/4" (44mm) thick standard

Hand:Universal, not handed

Backsets:2-3/4" (70mm) standard, optional 2 3/8" ( 60mm), optional 3 3/4" (95mm)

Front: Wrought brass or bronze 2-1/4" x 1" (57mm x 25mm) standard - other options available

Latch:Brass 1/2" (13mm) throw

Strike:Wrought brass, bronze or stainless steel 800 curved lip strike 2-3/4" x 1-1/4" x 1-1/4" or 808 curved lip ANSI strike 4-7/8" x 1-1/8" x 1-1/4"standard

Cylinder:Brass, 6 pin, LA keyway standard

Keys:Two, nickel silver

Keying:Can be masterkeyed

Minimum Stile: 4-1/2" (114mm)

Warranty:one year limited warranty

Model:Sargent 6G04, 28-6G04, 6G04OB, 28-6G04OB, 6G04OB3, 28-6G04OB3, 6G04OB10, 28-6G04OB10, 6G04OB10B, 28-6G04OB10B, 6G04OB26, 28-6G04OB26, 6G04OB26D, 28-6G04OB26D

Certification Compliance:

ANSI:Certified ANSI A156.2 Series 4000 - Grade 2

UL:UL listed to U.S.A. and Canadian safety standards Listed for 3 hour doors

Positive Pressure:Meets UL 10C and UBC 7-2 (1997)
