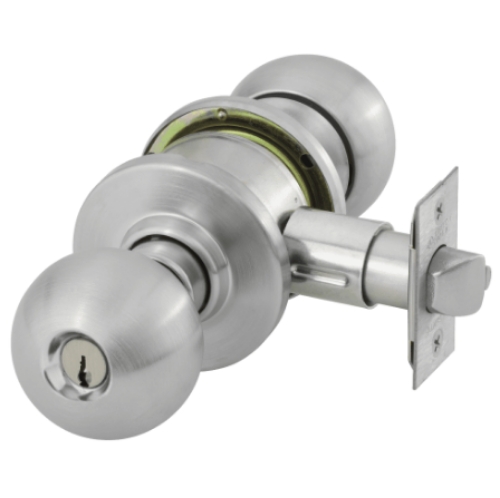

Sargent 6G37 Grade 2 Classroom Cylindrical Lock

Sargent 6G37 Classroom Knob Lock-ANSI F84

Deadlocking latchLatch retracted by either knob unlessoutside knob is locked by keyKey in outside knob locks or unlocksoutside knob

Knob & Rose: Heavy wrought brass and bronze

Door Thickness: fits doors from 1-3/8" (35mm) to 1-3/4" (44mm) thick standard

Hand: Universal, not handed

Backsets: 2-3/4" (70mm) standard, optional 2 3/8" ( 60mm), optional 3 3/4" (95mm), optional 5" (127mm) backset available

Front: Wrought brass or bronze 2-1/4" x 1" (57mm x 25mm) standard - other options available

Latch: Brass 1/2" (13mm) throw

Strike: Wrought brass, bronze or stainless steel 800 curved lip strike 2-3/4" x 1-1/4" x 1-1/4" or 808 curved lip ANSI strike 4-7/8" x 1-1/8" x 1-1/4" standard

Cylinder: Brass, 6 pin, LA keyway standard

Keys: Two, nickel silver

Keying: Can be masterkeyed

Minimum Stile: 4-1/2" (114mm)

Warranty: one year limited warranty

Model:Sargent 6G37, 28-6G37, 6G37OB, 28-6G37OB, 6G37OB3, 28-6G37OB3, 6G37OB10, 28-6G37OB10, 6G37OB10B, 28-6G37OB10B, 6G37OB26, 28-6G37OB26, 6G37OB26D, 28-6G37OB26D

Certification Compliance:

ANSI:Certified ANSI A156.2 Series 4000 - Grade 2

UL:UL listed to U.S.A. and Canadian safety standards Listed for 3 hour doors

Positive Pressure:Meets UL 10C and UBC 7-2 (1997)
