Sargent 6U65 Grade 2 Privacy/Bathroom Cylindrical Lock

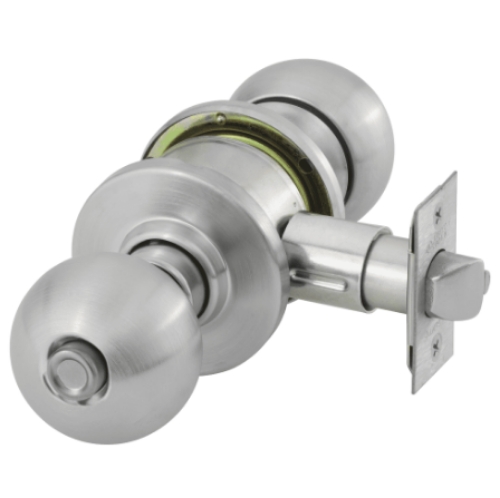

Sargent 6U65 Privacy/Bathroom Knob Lock-ANSI F76

Latch retracted by either knob unless outside knob is locked by push button in inside knob Turning inside knob or closing door releases button Emergency key or flat blade screwdriver in the emergency button releases the inside button and unlocks the outside knob Emergency key supplied only when ordered separately (14-0300)

Knob & Rose: Heavy wrought brass and bronze

Door Thickness: fits doors from 1-3/8" (35mm) to 1-3/4" (44mm) thick standard

Hand: Universal, not handed

Backsets: 2-3/4" (70mm) standard, optional 2 3/8" ( 60mm), optional 3 3/4" (95mm), optional 5" (127mm) backset available

Front: Wrought brass or bronze 2-1/4" x 1" (57mm x 25mm) standard - other options available

Latch: Brass 1/2" (13mm) throw

Strike: Wrought brass, bronze or stainless steel 800 curved lip strike 2-3/4" x 1-1/4" x 1-1/4" or 808 curved lip ANSI strike 4-7/8" x 1-1/8" x 1-1/4" standard

Cylinder: Brass, 6 pin, LA keyway standard

Keys: Two, nickel silver

Keying: Can be masterkeyed

Minimum Stile: 4-1/2" (114mm)

Warranty: one year limited warranty

Model:Sargent 6U65, 28-6U65, 6U65OB, 28-6U65OB, 6U65OB3, 28-6U65OB3, 6U65OB10, 28-6U65OB10, 6U65OB10B, 28-6U65OB10B, 6U65OB26, 28-6U65OB26, 6U65OB26D, 28-6U65OB26D

Certification Compliance:

ANSI:Certified ANSI A156.2 Series 4000 - Grade 2

UL:UL listed to U.S.A. and Canadian safety standards Listed for 3 hour doors

Positive Pressure:Meets UL 10C and UBC 7-2 (1997)
