Sargent 710 ET_ Exit Trim - Pull Only Function for 8300, 8500, 8700, 8800, 8900 Devices

Some doors don't need outside entry control. Emergency exit stairwells, service corridors, and exterior secondary exits often require only that someone inside can push the exit device bar to leave, but outside re-entry is controlled by a separate keyed door or is not permitted at all. On those openings, a keyed trim set adds cost, cylinder management, and a mechanism that will never be used. The Sargent 710ET is the correct specification: a pull-only dummy lever trim with no cylinder, no outside mechanical operation, and no key. The lever is present only as a physical pull handle, typically used when the exit device is dogged (held open in the retracted position for free-flow traffic). When the door is in normal panic mode, the lever does not retract the latch. Inside push-bar egress remains the only way to operate the device.

The 700 Series ET trim is through-bolted to the chassis for greater security and durability than surface-mounted alternatives. For all commercial exit hardware, browse our full exit hardware catalog.

When to Specify Pull Only vs. Other 700 Series Trim Functions

The Sargent 700 Series ET trim family covers every outside access function from pull-only through keyed entry. Understanding which trim the opening requires prevents misorders and costly return shipping on handed trim sets.

The 710ET (this product) is for openings with no outside entry requirement. Lever is dummy, no cylinder, no outside operation. The 704ET is the night latch function: key from outside retracts the latch each time for entry. The 706ET and 713ET both provide keyed lever control (key locks and unlocks the outside lever) for different device series. The 715ET is the passage function: no cylinder, lever always operates freely from outside for unrestricted entry. The 740ET is the freewheeling pull-only version, where the lever turns under force rather than staying rigid, reducing stress on the trim mechanism in high-abuse applications.

Sargent 710ET Technical Specifications

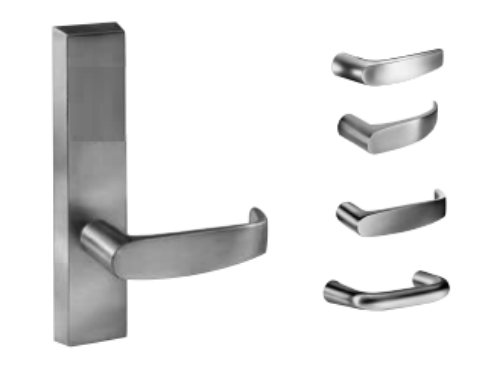

SKU: 710ET_ (underscore indicates lever style: B, J, L, or P). Function: Pull Only, Dummy Lever, No Cylinder. Series: Sargent 700 Series ET Exit Trim. Mounting: Through-bolted to chassis for maximum security and durability. Door thickness: 1-3/4" standard. Cylinder: None. Outside operation: Lever serves as pull handle only; does not retract latch from outside. Inside operation: Exit device push-bar always allows free egress. Handing: RHR (Right Hand Reverse) or LHR (Left Hand Reverse); specify at time of order. Lever styles available: B, J, L, P.

Compatible Exit Devices

The 710ET trim is compatible with the following Sargent 80 Series exit devices. Rim devices: 8510 (narrow stile), 8810, 8888, HC8810 (wide stile). Surface vertical rod devices: 8710, HC8710, NB8710, PP8710, PR8710, SP8710. Mortise devices: 8310, 8910. Additional configurations: PP8610, PR8610, SP8610.

For concealed vertical rod devices (8400 and 8600 Series), the correct pull-only trim is the Sargent 710-4ET, not the 710ET. Confirm the device series before ordering.

Handing Note

The 710ET is a hand trim: it installs as either RHR (Right Hand Reverse) or LHR (Left Hand Reverse). RHR installs on doors where the hinges are on the right when approaching from the pull (outside) side. LHR installs where hinges are on the left. The exit device body is non-handed; the trim is handed. Ordering incorrect handing is the most common error on exit device trim orders and requires a return.
