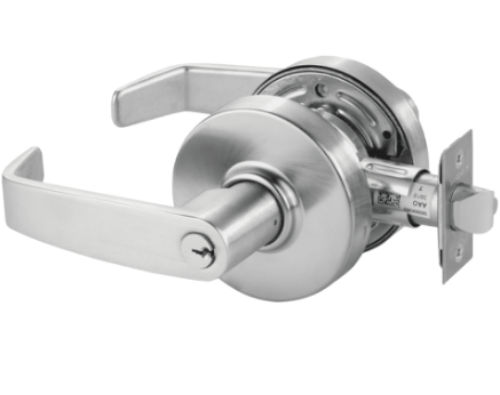

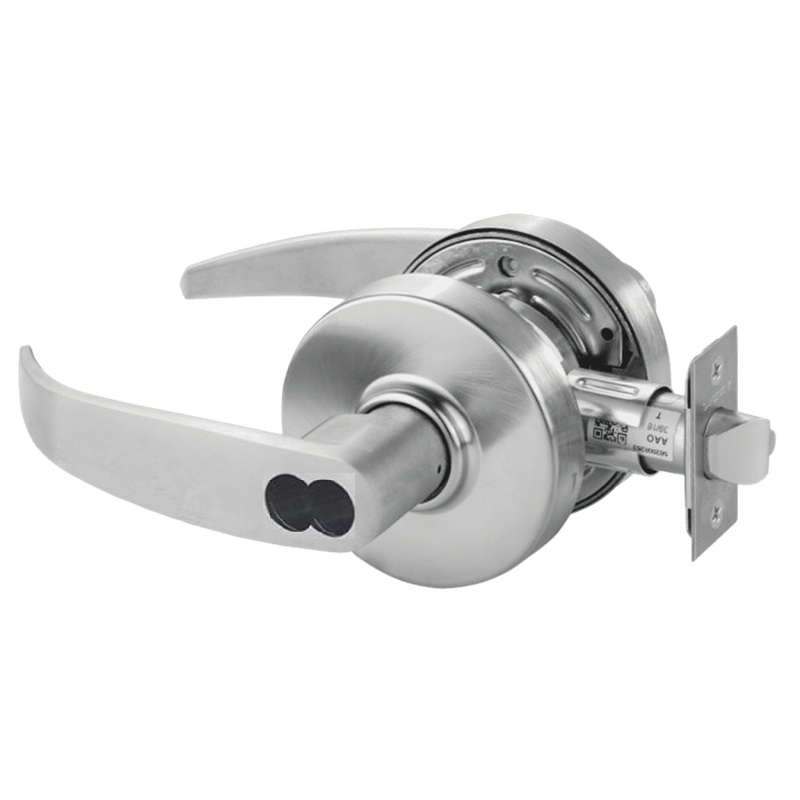

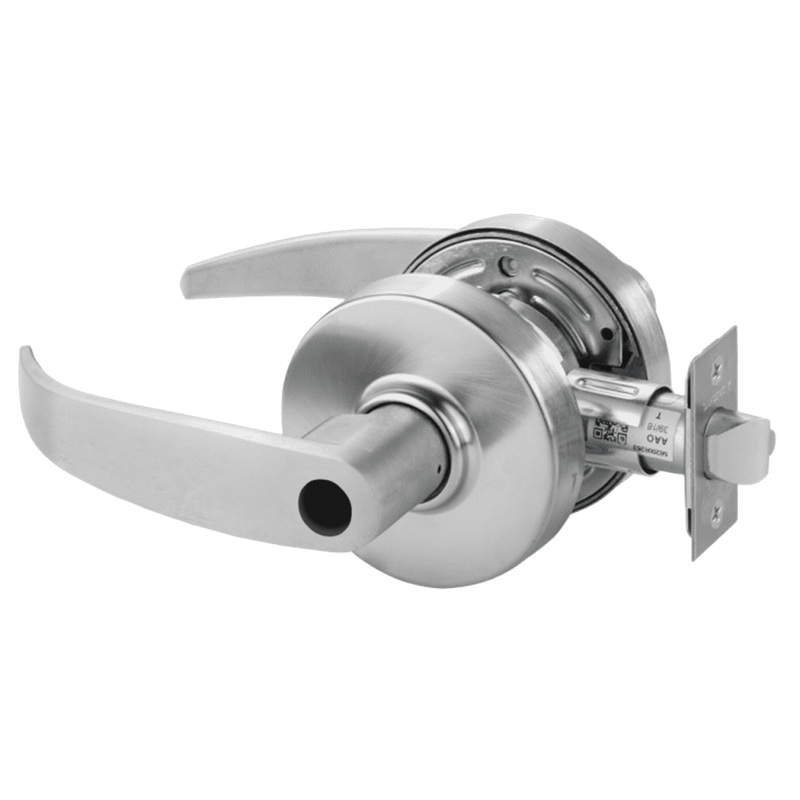

Sargent 7G04 Storeroom or Closet Lock

Sargent 7G04 Storeroom or Closet Lock

ANSI F86

Meets and greatly exceeds ANSI A156.2Series 4000, Grade 2

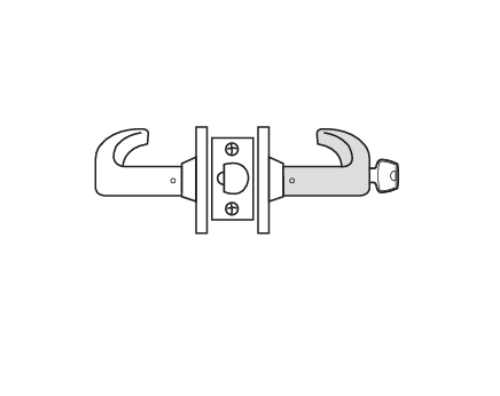

Deadlocking latch Latch by lever inside or key outsiden Outside lever rigid at all times

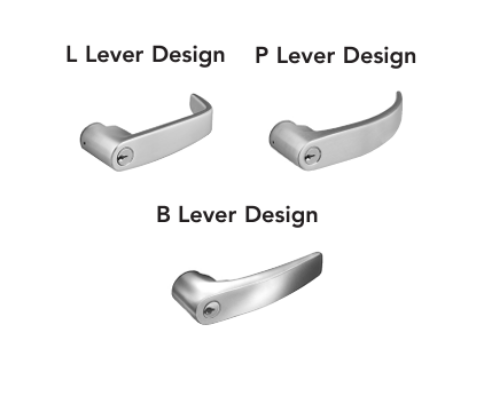

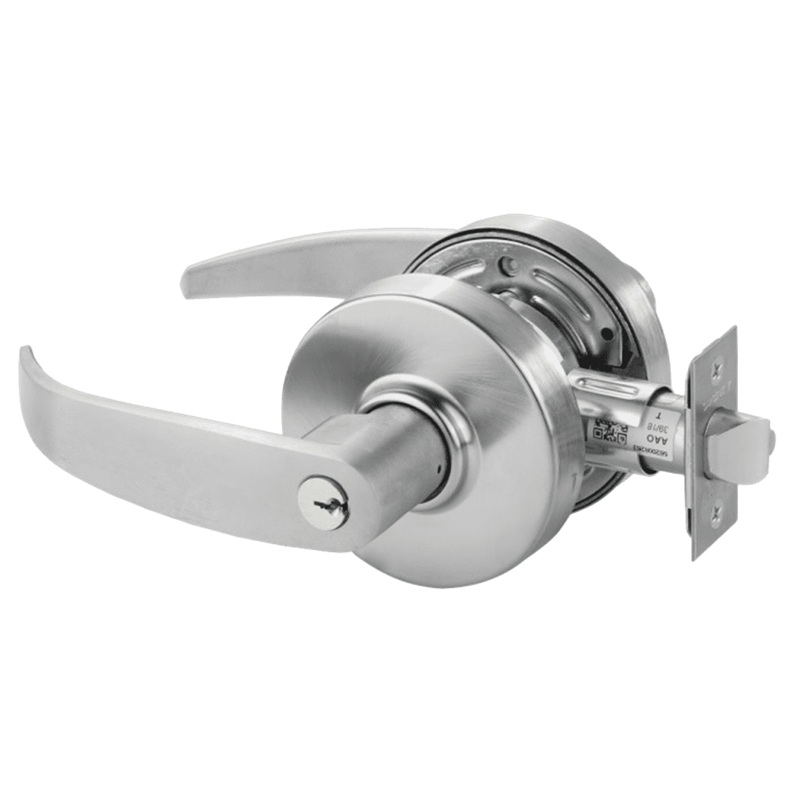

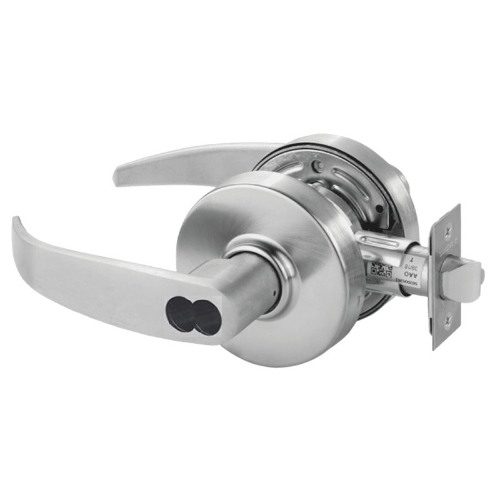

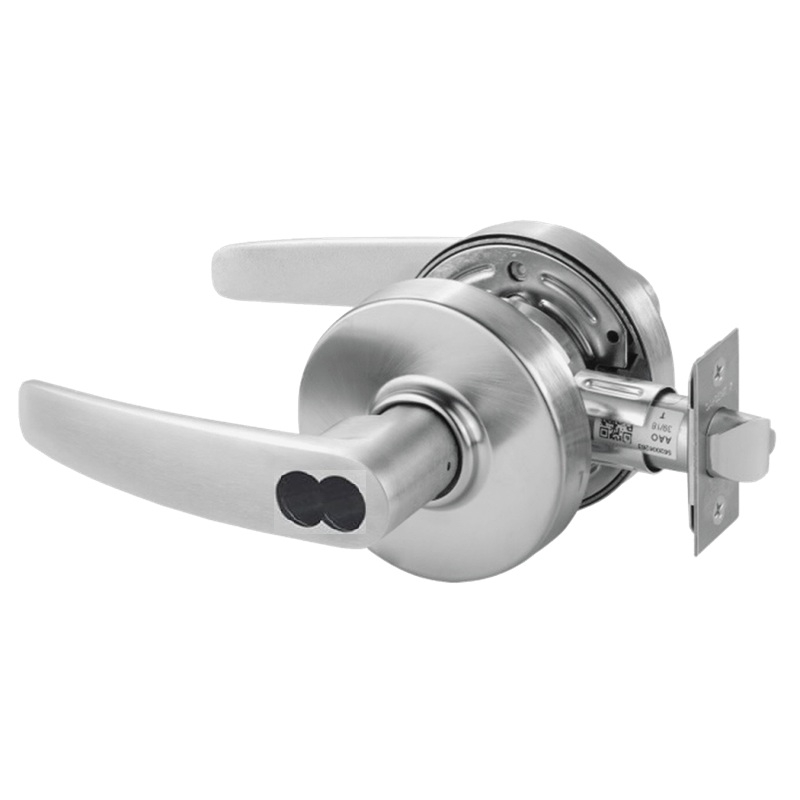

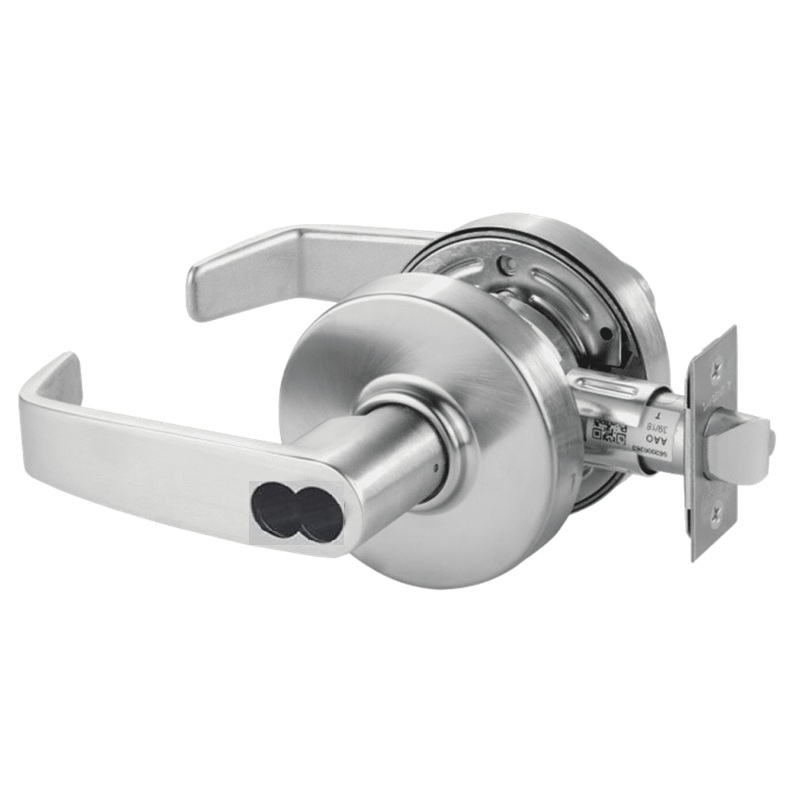

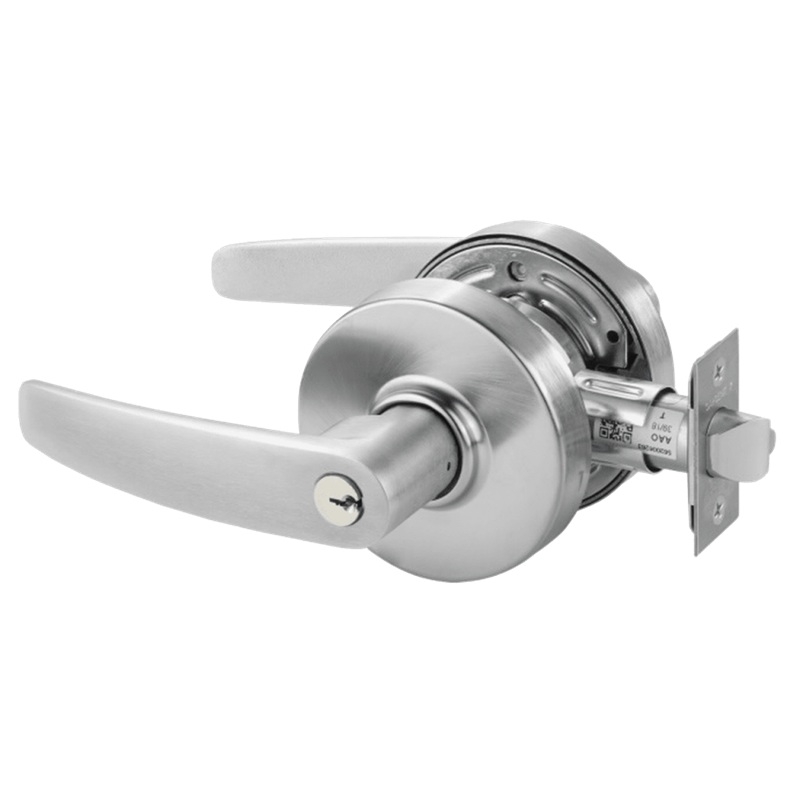

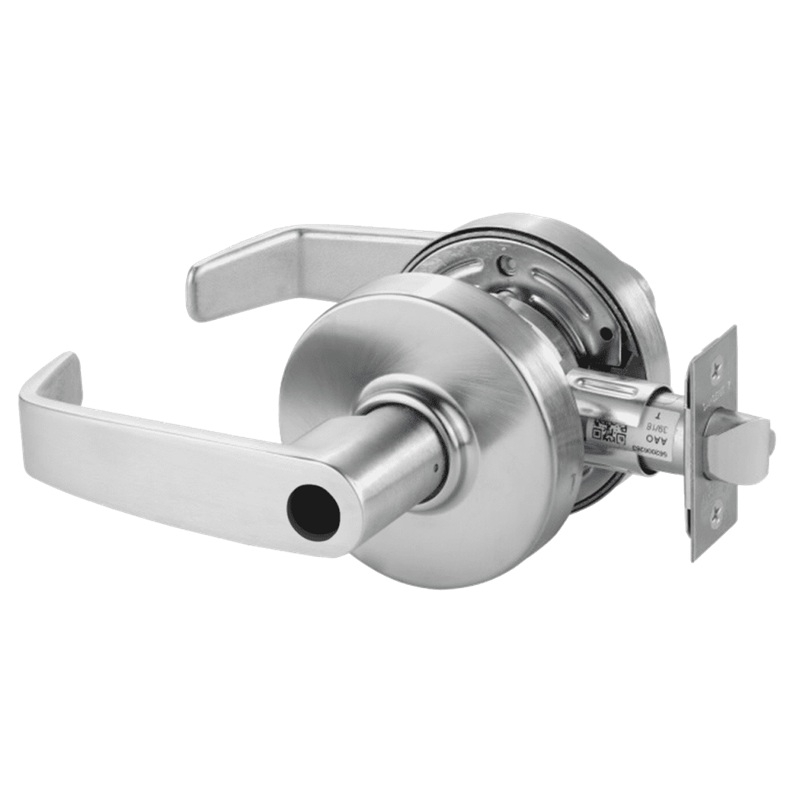

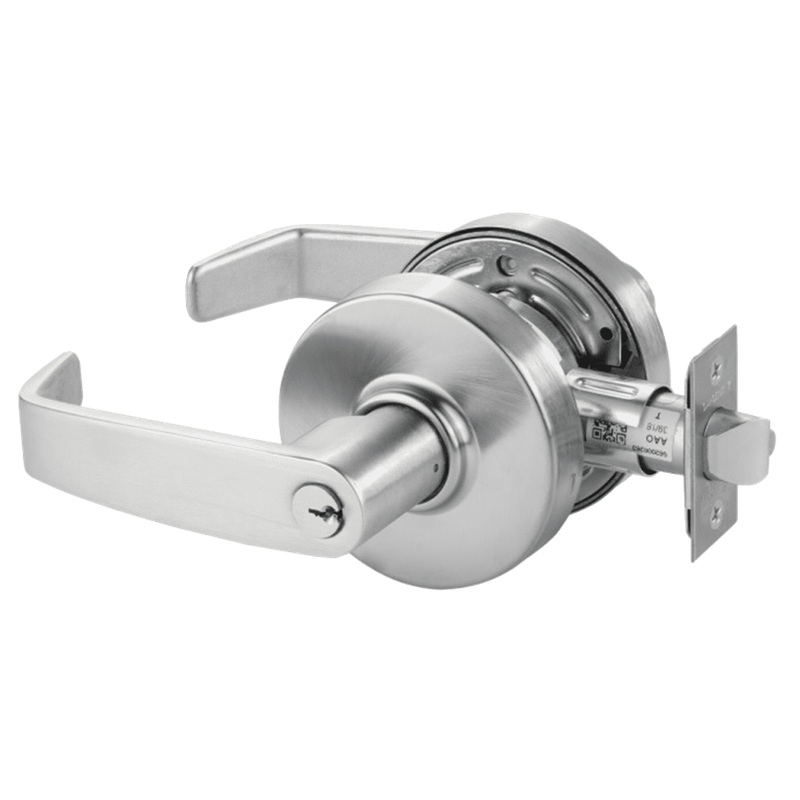

Lever: LL L Lever L Rose, LB B Lever L Rose, LP P Lever L Rose

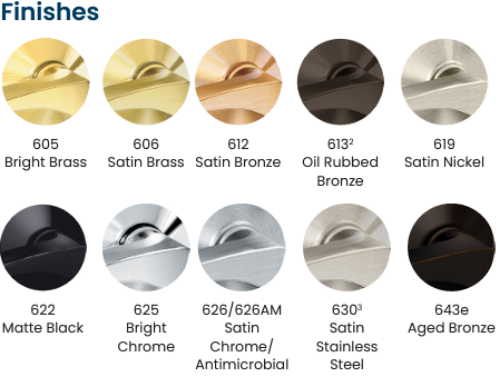

Finishes: US3 (605) Polished brass, US4 (606) Satin brass, US10 (612) Satin Bronze, US10B (613) Dark Oxidized Satin Bronze, Oil Rubbed, US26 (625) Bright Chromium Plated, US26D (626) Satin Chromium Plated, US15 (619) Satin Nickel

Non-handed except for the G & Y Levers

1-3/4" (44mm) Thick Door standard. Available for 1-3/8" (35mm) Thick Door

Available with 2-3/4", 2-3/8" backsets

1/2" latch bolt throw

Front: Wrought brass or stainless steel2-1/4" x 1-1/8" (57mmx 29mm)

Strike: Wrought brass or stainless steel 800 curved lip strike 2-3/4" x 1-1/4" x 1-1/4" or 808 curved lip ANSI strike 4-7/8" x 1-1/8" x 1-1/4".

Cylinder: Brass, 6-pin, LA keyway standard.

Keying Features Available: Master keying, Construction master keying, Interchangeable core (IC).

Keys: Two nickel silver standard

5 year limited warrantyno service required to maintain warranty

Model: Sargent, 7G04, 287G04, 28607G04, 28707G04, 7G04LL, 287G04LL, 28607G04LL, 28707G04LL, 7G04LP, 287G04LP, 28607G04LP, 28707G04LP, 7G04LB, 287G04LB, 28607G04LB, 28707G04LB

Sargent, US26D, 626, 7G04LL26D, 287G04LL26D, 28607G04LL26D, 28707G04LL26D, 7G04LP26D, 287G04LP26D, 28607G04LP26D, 28707G04LP26D, 7G04LB26D, 287G04LB26D, 28607G04LB26D, 28707G04LB26D

Sargent,  US26, 625, 7G04LL26, 287G04LL26, 28607G04LL26, 28707G04LL26, 7G04LP26, 287G04LP26, 28607G04LP26, 28707G04LP26, 7G04LB26, 287G04LB26, 28607G04LB26, 28707G04LB26

Sargent, US10, 612, 7G04LL10, 287G04LL10, 28607G04LL10, 28707G04LL10, 7G04LP10, 287G04LP10, 28607G04LP10, 28707G04LP10, 7G04LB10, 287G04LB10, 28607G04LB10, 28707G04LB10

Sargent, US10B, 613, 7G04LL10B, 287G04LL10B, 28607G04LL10B, 28707G04LL10B, 7G04LP10B, 287G04LP10B, 28607G04LP10B, 28707G04LP10B, 7G04LB10B, 287G04LB10B, 28607G04LB10B, 28707G04LB10B

Sargent, US3, 605,7G04LL3, 287G04LL3, 28607G04LL3, 28707G04LL3, 7G04LP3, 287G04LP3, 28607G04LP3, 28707G04LP3, 7G04LB3, 287G04LB3, 28607G04LB3, 28707G04LB3

Sargent, US4, 606, 7G04LL4, 287G04LL4, 28607G04LL4, 28707G04LL4, 7G04LP4, 287G04LP4, 28607G04LP4, 28707G04LP4, 7G04LB4, 287G04LB4, 28607G04LB4, 28707G04LB4

Cylindrical Housing - Steel, zinc dichromate finish

Lock levers made of solid material.

Certification Compliance

ANSI Certified ANSI A156.2 Series 4000 - Grade 2

UL UL Listed to U.S.A. and Canadian safety standards Listed for 3 Hour Doors

Positive Pressure Meets UL 10C and UBC 7-2 (1997)

ADA All levers conform to ADA requirements for barrier-free accessibility California Code Levers (L and P) conform to California Administrative Code Title 19 and 24
