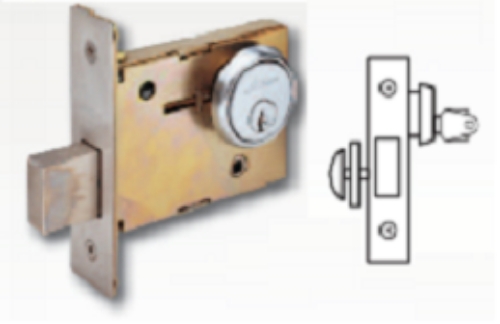

Arrow N41 Mortise Deadbolt, Single Cylinder

Arrow N41 Mortise Deadbolt, Single Cylinder

Description:Throw or retract bolt by key outside, thumbturn inside.

N Series Features:

Housing:Heavy wrought steel with zinc dichromate finish.

Deadbolt:1" (25 mm), throw solid brass deadbolt with hardened steel pin.

Backset:2 3/4" (69.85 mm).

Doors:1-3/8" (34.92 mm) to 1-3/4" (44.45 mm) thick standard.

Strikes:Supplied standard with #380 security strike - 1 1/8" x 3 1/2".

Handing:All functions are reversible.

Certification:Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors when used in conjunction with a rated primary latching device.

MODEL: N41 26D, ARROW N41 26D, N41 26D, N41 ARROW, ARROW N41 10B , ARROW N41 26, N4126D. N4010B
