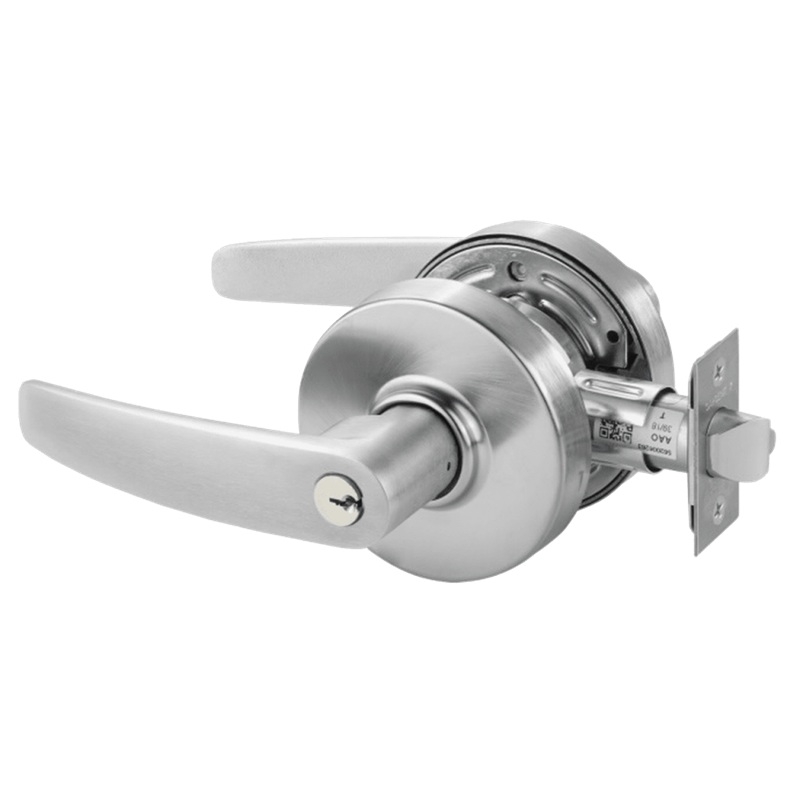

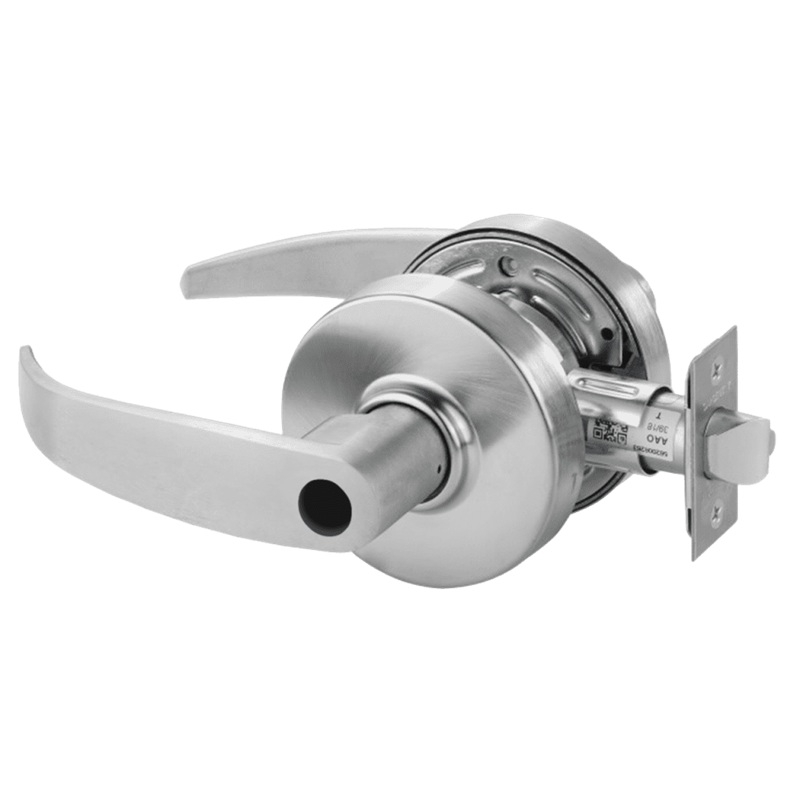

Sargent 7G05 Entrance or Office Lock

The Sargent 7G05 is the Entrance/Office function (ANSI F109) within the Sargent 7 Line Grade 2 cylindrical lever lockset family. Deadlocking latch, dual-credential operation where the outside lever locks by push/turn button on the inside, push button released by either a key from outside or turning the lever from inside, turn button released manually. Key always retracts the latch when the outside lever is locked, so authorized key holders always get in. Meets and exceeds ANSI/BHMA A156.2 Series 4000 Grade 2 cycling standards. Non-handed (except G and Y lever options which are handed), 1-3/4" standard door thickness (1-3/8" available), 2-3/4" backset standard (2-3/8" available), 1/2" latch bolt throw, 6-pin brass cylinder with LA keyway standard. 3 lever styles, 7 BHMA finishes, master keying and IC core options at checkout.

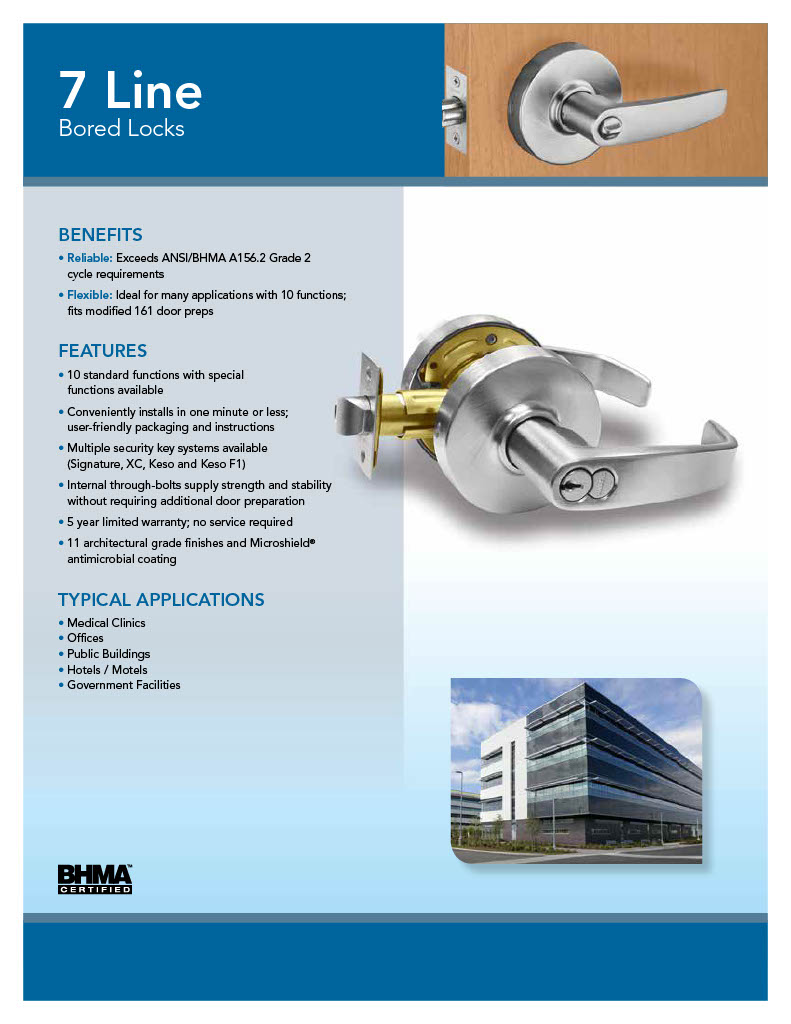

About Sargent and the 7 Line

Sargent Manufacturing was founded in New Haven, Connecticut in 1864 and is one of the four pillar commercial lock brands in North America alongside Schlage, Corbin Russwin, and Yale. All four are now divisions of ASSA ABLOY, which means the 7 Line integrates with the broader ASSA ABLOY ecosystem including Aperio wireless access, HID credentials, and SargentKEY mobile credential. The 7 Line is Sargent's Grade 2 cylindrical lever series, positioned as the best overall lock in the Grade 2 class. Standard duty for interior and exterior applications in public buildings, medical offices, hotels, motels, government facilities, schools, office buildings, property management, and any commercial opening that doesn't require heavy-duty Grade 1 cycling. For heavy-duty Grade 1 Sargent cylindrical lever locks, step up to the 10 Line or 8 Line. For Grade 2 knob (not lever) locks, see the Sargent 6 Line Grade 2. For the full Sargent lever lock lineup across all grades, see the Sargent Lever Locks category or the Sargent 7 Line Grade 2 parent category.

7G05 Model Decode and Function (ANSI F109)

Sargent's 7 Line model naming packs function and configuration into a compact code:

• 7 = 7 Line Series (Grade 2 cylindrical lever)

• G = G Chassis

• 05 = Function code for Entrance/Office (ANSI F109)

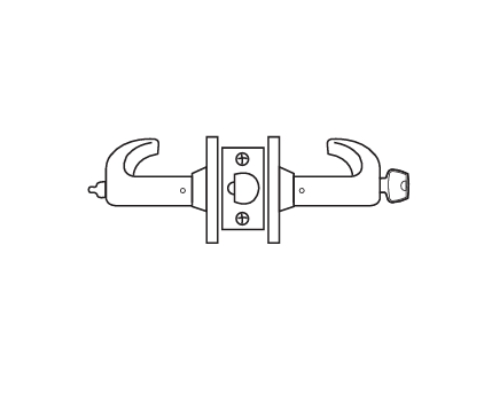

F109 Entrance/Office is the classic office door function. In the unlocked state, the latch operates from either lever and anyone can come and go. To lock it, a staff member presses the push/turn button on the inside lever, which locks the outside lever. Anyone with a key can still retract the latch from outside, and the inside lever always retracts the latch for instant egress. To unlock fully (turn button), you either key it from the outside or turn the inside lever, which releases the button. This is the right function for private offices, suite entries, medical exam rooms, small office meeting rooms, small business entries, and any door where staff needs to lock up for the day but keep it accessible during hours. Related function codes within the 7 Line: 7G01 Passage F75 (no locking), 7G04 Privacy F76 (inside thumb turn bedroom/bath), 7G05 Entrance/Office F109 (this product), 7G37 Classroom F84 (outside key only, inside always free), 7G38 Classroom Security F88 (outside key locks/unlocks outside lever), 7G70 Storeroom F86 (outside always locked, key retracts).

7G05 Specifications

• Function: ANSI F109 Entrance/Office (deadlocking latch, push/turn button lock from inside, key retracts from outside)

• Grade: ANSI/BHMA A156.2 Series 4000 Grade 2, exceeds cycling standards

• Chassis: steel with zinc dichromate finish

• Door thickness: 1-3/4" (44mm) standard, 1-3/8" (35mm) available

• Backsets: 2-3/4" standard, 2-3/8" available

• Latch throw: 1/2" deadlocking

• Front: wrought brass or stainless steel, 2-1/4" × 1-1/8" (57mm × 29mm)

• Strike options: 800 curved lip T-strike 2-3/4" × 1-1/4" × 1-1/4", or 808 curved lip ANSI strike 4-7/8" × 1-1/8" × 1-1/4"

• Cylinder: brass, 6-pin, LA keyway standard

• Keyway options: LA (standard), LB, LC, LE, LF, LG, LJ, LK, LL, HA, HB, HC, HE, HF, HG, HJ, HK, HL, RA, RB, RC, RE, RF, RG, RJ, RK, RL

• Keying options: standard keyed different (KD), keyed alike (+$20), master keyed (+$30), or less cylinder

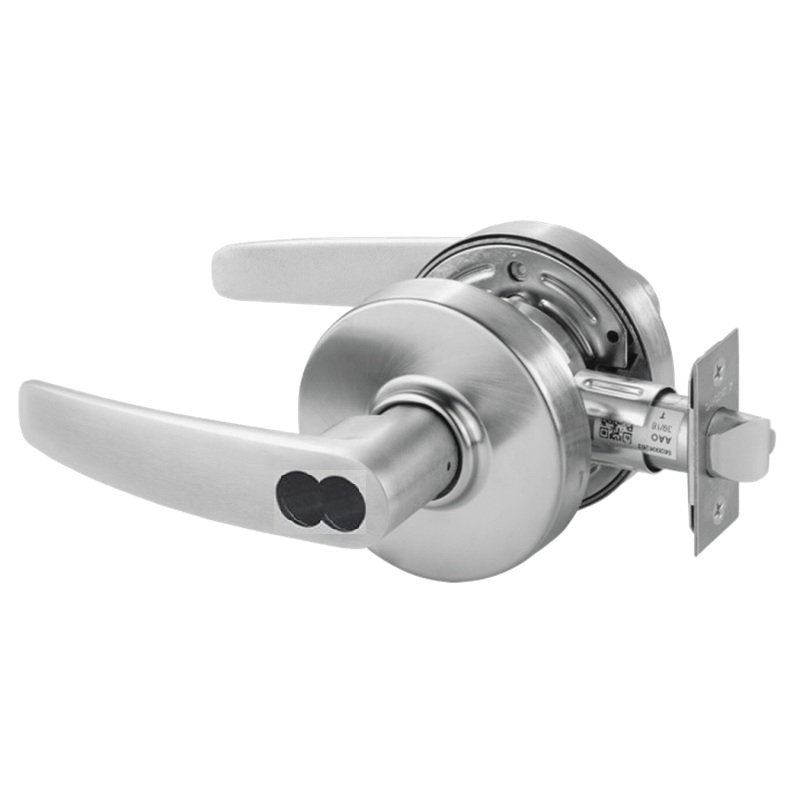

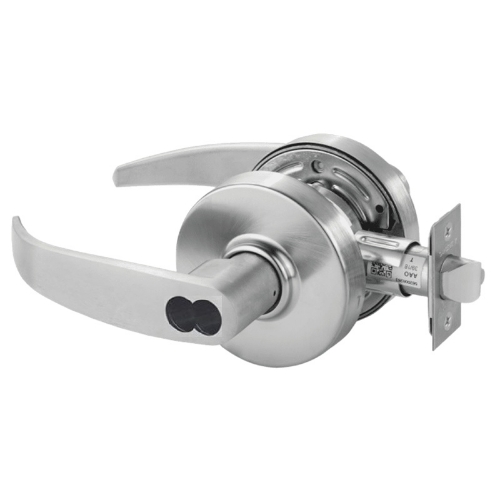

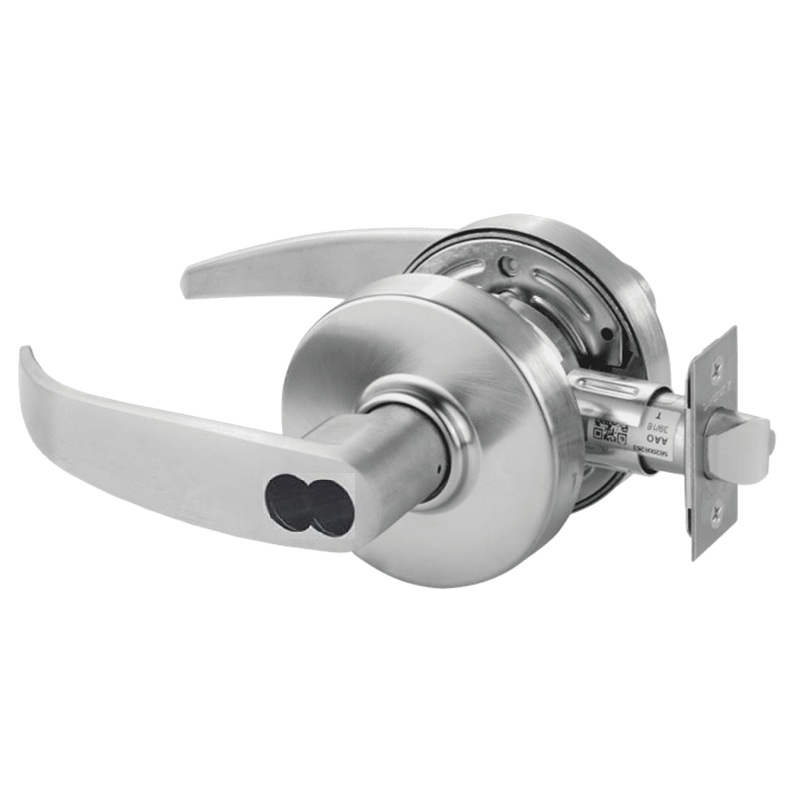

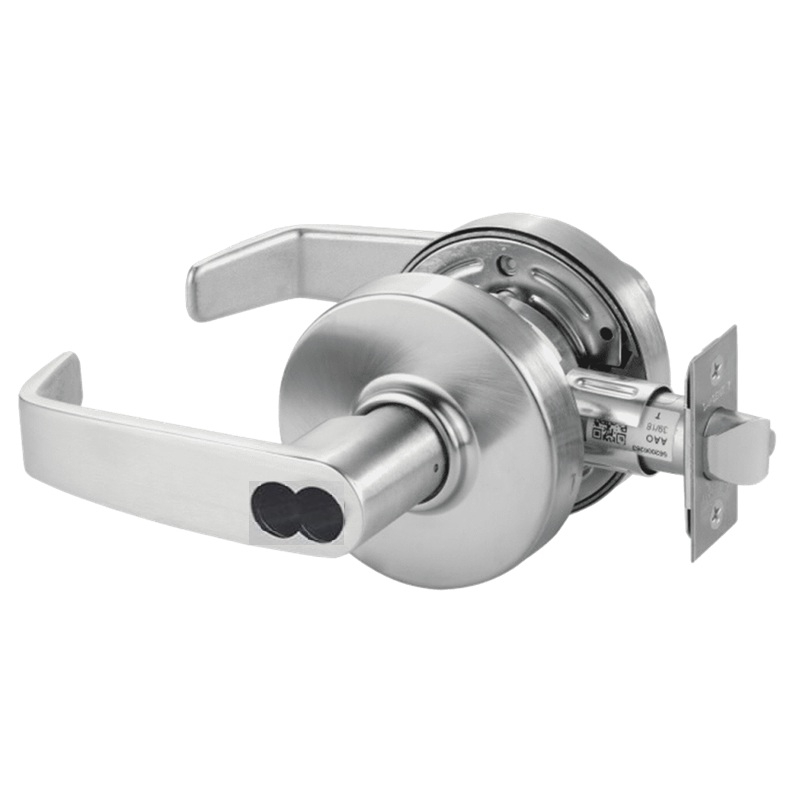

• IC core options: 2860 Large Format IC (less core) or 2870 Small Format IC (less core)

• Keys: two nickel silver standard

• Handing: non-handed (except G and Y lever options which are handed)

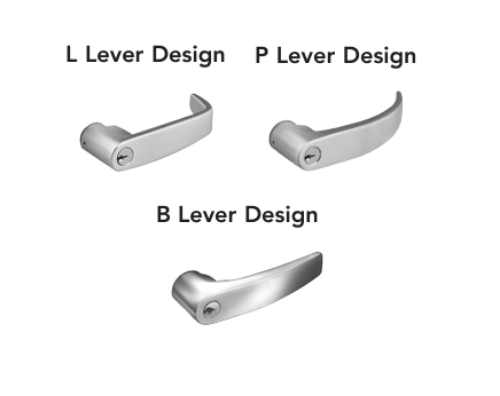

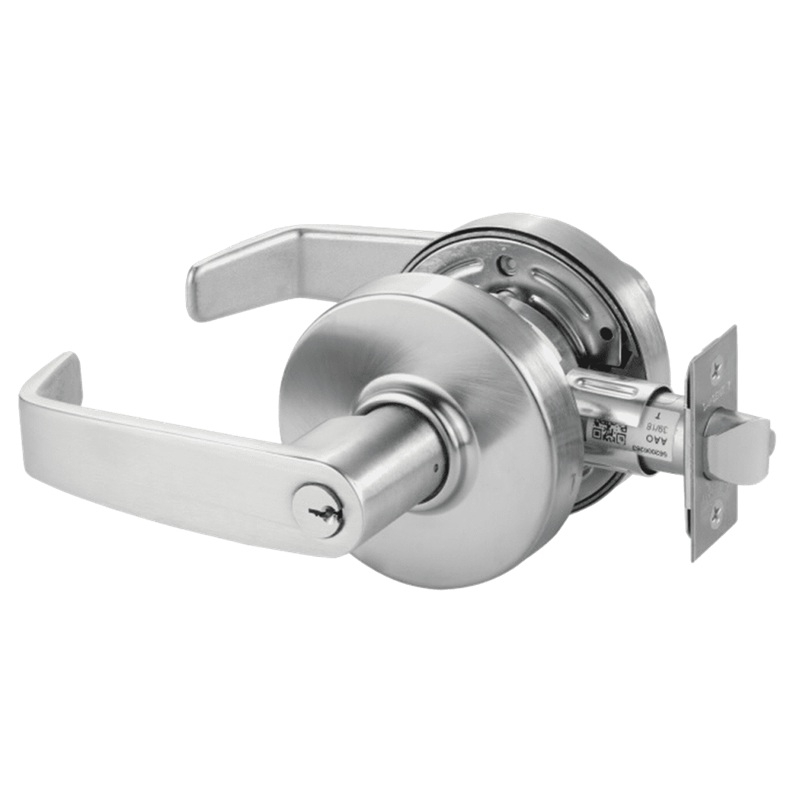

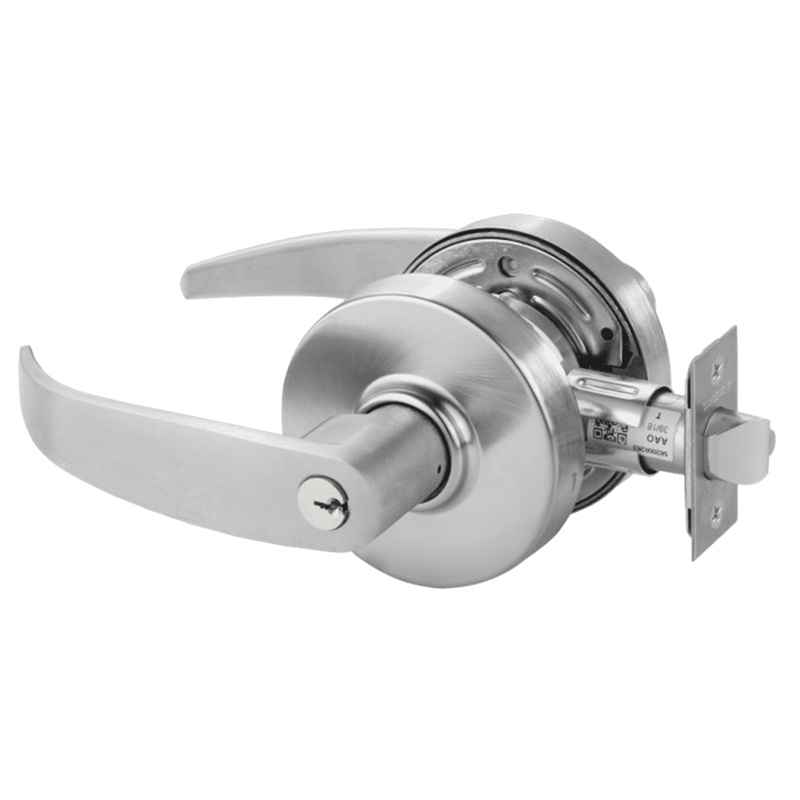

• Lever styles: LL (L Lever with L Rose), LB (B Lever with L Rose), LP (P Lever with L Rose)

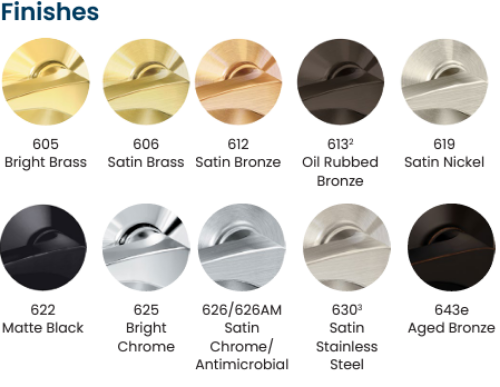

• Finishes: US3 / 605 Polished Brass, US4 / 606 Satin Brass, US10 / 612 Satin Bronze, US10B / 613 Dark Oxidized Oil Rubbed Bronze, US15 / 619 Satin Nickel, US26 / 625 Bright Chrome, US26D / 626 Satin Chrome, plus BSP Black Suede Powder Coat (at checkout)

• Warranty: 5-year limited, no service required to maintain warranty

• SKU: 7G05 (finish and lever variants encoded, e.g., 7G05LL26D = LL lever + 26D satin chrome)

Configuration Guide for the Order Page

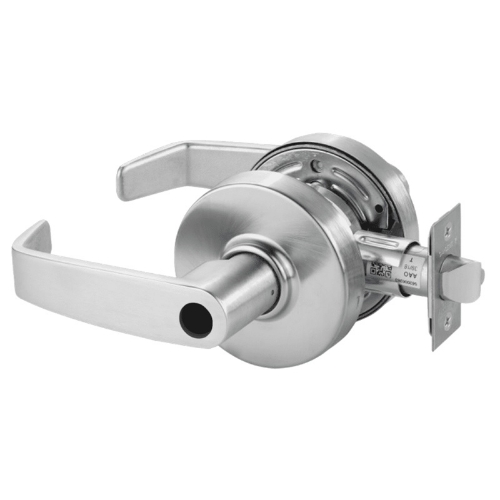

At checkout, you'll configure 7 options: lever style (LL, LB, or LP), cylinder (standard, 2860 LFIC less core, 2870 SFIC less core, or LC less cylinder), finish (26D, 10, 10B, or BSP in the primary checkout set), backset (2-3/4" or 2-3/8"), strike (ANSI 4-7/8" standard or T-strike 2-3/4"), keyway (LA standard plus 28 alternates), and keying (KD, KA, MK, or none). If you're retrofitting existing Sargent openings, match the keyway to the existing Sargent master key system (most commonly LA for standard commercial). If you're starting fresh on a new construction, LA is the default and works for almost all commercial applications. For facilities already running Best, Corbin Russwin, Schlage, or Medeco IC core systems, use the 2860 (LFIC) or 2870 (SFIC) options and order the IC core separately to match your existing system.
