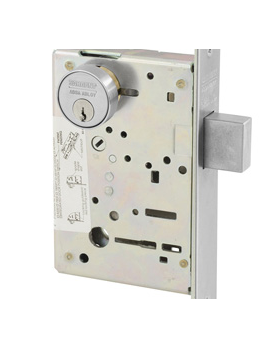

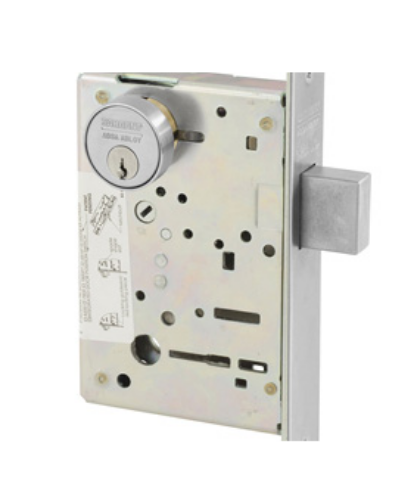

Sargent 8222-26D Double Cylinder Deadbolt - Satin Chrome

Sargent 8222-26D Double Cylinder Deadbolt - Satin Chrome

• Deadbolt operation only

• Key outside or inside retracts and projects deadbolt

• ANSI F16

Features:

Door thickness: 1-3/4" (44 mm) standard

Backset: 2-3/4" only

Strike: Universal, ANSI Standard A115.1;

Deadbolt: One piece hardened stainless steel deadbolt with 1" throw

Case: 12 gauge heavy duty wrought steel, zinc dichromate plated

Armored front: Brass, bronze and stainless steel. 8" x 1-1/4", ANSI Standard 115.1. Adjustable at any angle from flat to beveled 1/8' in 2"   Hand: Non-handed

Outside Front Plate: Brass, Bronze and stainless steel. 8" (203mm)x 1-1/4" (32mm), ANSI Standard 115.1. Adjustable at any angle from flat to beveled 1/8" (3mm) in 2"(51mm)
