Schlage 1910-1 In Door Use Electronic Horn, 12/24VDC, Surface Mounted

Schlage 1910-1 In Door Use Electronic Horn, 12/24VDC, Surface Mounted

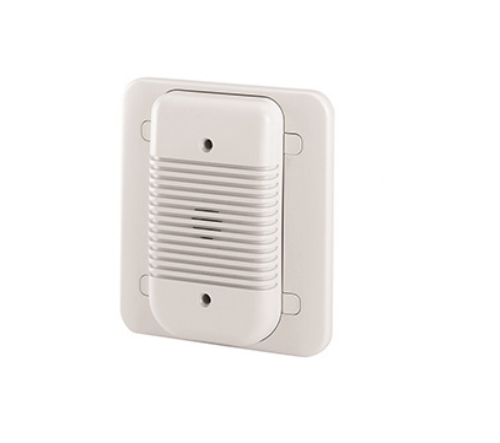

Model:1910-1: 12/24 VDC horn

Overview Electric horns are designed for use as an immediate local audible warning device incorporated in a security system. 1910 celica horns have six combinations of volume using continuous or intermittent tone that are easy to configure. Latching models can be set up to sound when a door latchbolt retracts or the door opens. Strobe light models are also available.

Units are flush (partially recessed) or surface mounted using a 4" black box and attached using two #8-32 X 3⁄4" screws. Surface and flush mounting kits are included with all horns.

Features and benefits:

-  Latching models alarm upon the latch release or opening of a connected door.   - Audible warning has six combinations of volume using intermittent or continuous tone with loudest tested to 102 dba.    - Strobe option adds visual warning indication.    - Intended for indoor use only.    - Flush mount to wall over a standard one- or two-gang electrical box.    - Surface mount using pull through wiring and the backbox kit included with the product.

 - Horn shell and trim skirt in off-white.   - Unit dimensions: 43⁄4"W x 51⁄2"H.

Power requirements: - Less than 14 mA @ 12 VDC. - Less than 28 mA @ 24 VDC. - Less than 71 mA @ 24 VDC with strobe.

Operating temperature: 32 F to 120 F Anechoic chamber tested @30 V 102 dba UL reverberant room tested @30 V 88 dba

Schlage Electronics 19101, Schlage Electronics 1910-1, Schlage 19101, Schlage 1910-1,  19101 Schlage Electronics, 1910-1 Schlage Electronics,  19101 Schlage, 1910-1 Schlage,
