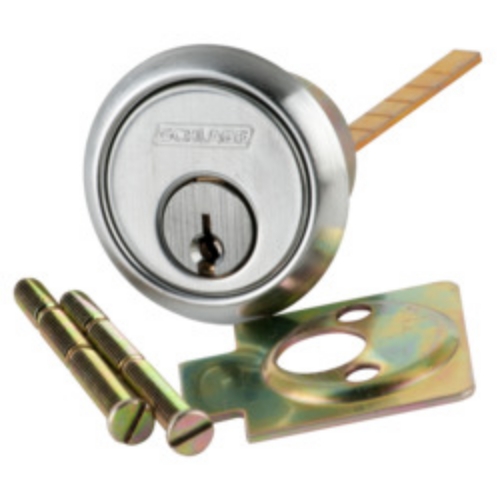

Schlage 20-022F Rim Conventional cylinder For Exit Devices, aluminum door, etc. - Horizontal Tailpiece

Schlage 20-022F Rim Conventional cylinder For Exit Devices, aluminum door, etc. - Horizontal Tailpiece

F- Keyway

Standard Features:

Certification BHMA certified to ANSI A156.5, 2001, Grade 1 Operational

Standard Cylinder Solid Brass 6 pin plugs and shells. Rim cylinders utilize a two piece Stainless Steel sintered housing secured by 2 Torx® screws.

Furnished Keyed Different (KD) with two 6 pin nickel silver keys

All items include collar, mounting screws and backplate.

Tailpiece orientation may be changed in the field. For Von Duprin, Monarch and most other applications, tailpiece should be horizontal.

Model:20-022F-606, 20-022F-612, 20-022F-613, 20-022F-619, 20-022F-625,  20-022F-626, 20022F606,  20-022F612, 20022F613, 20-022F619,  20022F-625, 20022F626,
