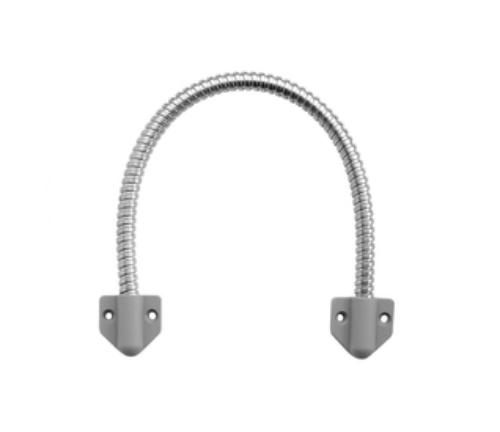

Schlage 798-12 Flexible Armored Door Cord 12" - For 692 Smartbar

Schlage 798-12  Flexible Armored Door Cord 12" - For 692 Smartbar

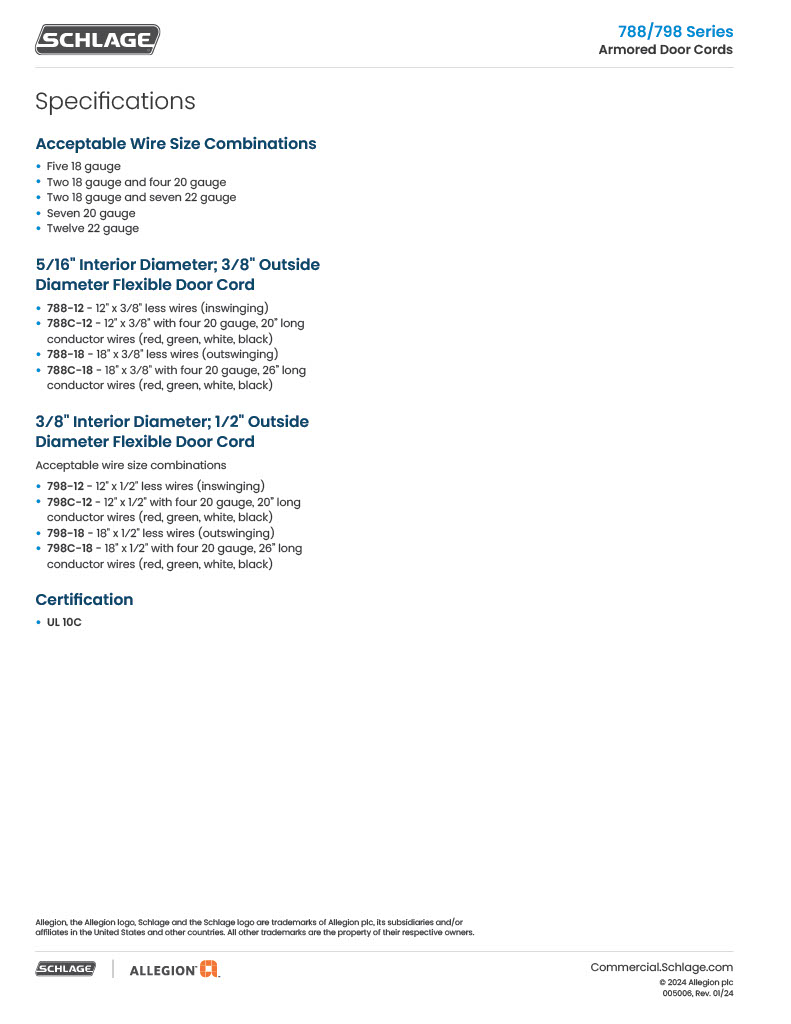

Specifications:

 - ANSI/UL 10C, CAN/ULC-S104-15

Acceptable wire size combinations: -  Five 18 gauge.  - Two 18 gauge and four 20 gauge.  - Two 18 gauge and seven 22 gauge.  - Seven 20 gauge. - Twelve 22 gauge.

3/8" interior diameter; 1/2" outside diameter flexible door cord: -798-12 - 12" x 1/2" less wires (inswinging). - 788C-12 - 12" x 1/2" with four 20 gauge, 20" long conductor wires (red, green, white, black). - 788-18 - 18" x 1/2" less wires (outswinging). - 788C-18 - 18" x 1/2" with four 20 gauge, 26" long conductor wires (red, green, white, black).

Certification: - UL 10 C

Schlage 798, Schlage 798C, Schlage 798-12, Schlage 798-18, Schlage 798C, Schlage 798C-12, Schlage 798C-18,  Schlage Electronics 798, Schlage 798C, SchlageElectronics  798-12, Schlage Electronics 798-18, Schlage Electronics 798C, Schlage Electronics 798C-12, SchlageElectronics  798C-18, 798C-18, 798C-12, 798C, 798-18, 798-12, 798C-18 Schlage, 798C-18 Schlage, 798C-12 Schlage, 798C Schlage, 798-18 Schlage, 798-12 Schlage
