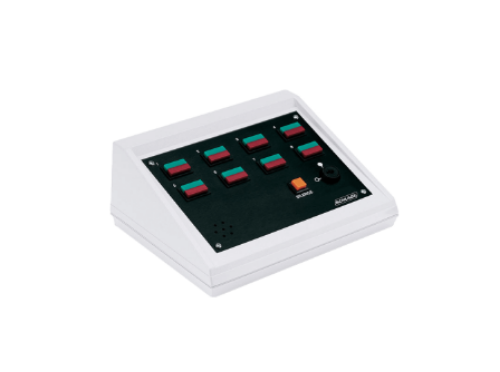

Schlage 8200AS Switch assembly Console, Alternative Action - Maintained

Product Details

Schlage 8200AS Switch assembly Console, Alternative Action - Maintained

8200AS  Alternate action (maintained) switch assembly

Features and benefits

  • Slope front design, with anodized face plate and durable housing.

-  Each station provides maintained or momentary Single Pole, Double Throw (SPDT) pushbutton switch.

-  Red and green indicator lamps.

-  Security keyswitch.

-  Signaling horn.

-  Alarm reset button.

-  24 VDC operation.

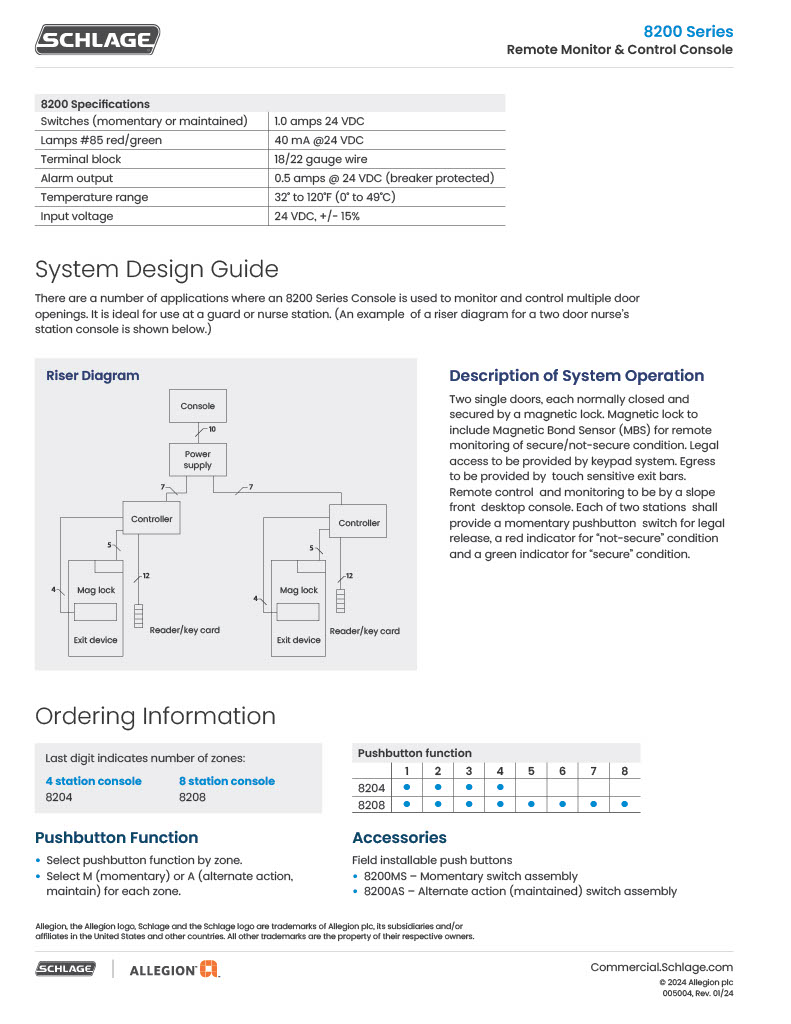

Specifications

Switches:(momentary or maintained) 1.0 amps 24 VDC.

Lamps #85 red/green:40 mA @24 VDC.

Terminal block:18/22 gauge wire.

Alarm output:0.5 amps @ 24 VDC (breaker protected).

Temperature range:32  to 120 F (0 to 49 C).

Input voltage:24 VDC, +/- 15%.



Schlage 8200,Schlage Electronics 8200,8200Schlage,8200Schlage Electronics

Schlage 8200AS Switch assembly Console, Alternative Action - Maintained

SKU: 8200AS

In Stock

$153.60

$231.00

You saved $77.40

About this item

Schlage 8200 Series desk consoles provide door control and monitoring for up to eight zones. Designed to meet a wide range of security requirements, the 8200 Series can control and monitor electric strikes, electromagnetic locks, electromechanical exit devices or other electric locks. The console can also be used for surveillance of monitoring devices.

Schlage 8200AS Switch assembly Console, Alternative Action - Maintained

8200AS  Alternate action (maintained) switch assembly

Features and benefits

  • Slope front design, with anodized face plate and durable housing.

-  Each station provides maintained or momentary Single Pole, Double Throw (SPDT) pushbutton switch.

-  Red and green indicator lamps.

-  Security keyswitch.

-  Signaling horn.

-  Alarm reset button.

-  24 VDC operation.

Specifications

Switches:(momentary or maintained) 1.0 amps 24 VDC.

Lamps #85 red/green:40 mA @24 VDC.

Terminal block:18/22 gauge wire.

Alarm output:0.5 amps @ 24 VDC (breaker protected).

Temperature range:32  to 120 F (0 to 49 C).

Input voltage:24 VDC, +/- 15%.



Schlage 8200,Schlage Electronics 8200,8200Schlage,8200Schlage Electronics

8200ASs
Schlage 8200AS Switch assembly Console, Alternative Action - Maintained

Product code: 8200AS

In Stock

$231.00

$153.60



8200ASs
Schlage 8200AS Switch assembly Console, Alternative Action - Maintained

Product code: 8200AS

In Stock

$231.00

$153.60

Related products

M420
Schlage Locknetics M420 Electromagnetic Single Lock - 500 Lb. Hold

Product code: W561BD

In Stock
$887.00

$586.70

M402

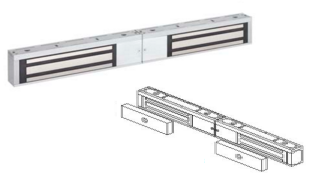

Schlage Locknetics M422 Electromagnetic Double Lock - 500 Lb. Hold
