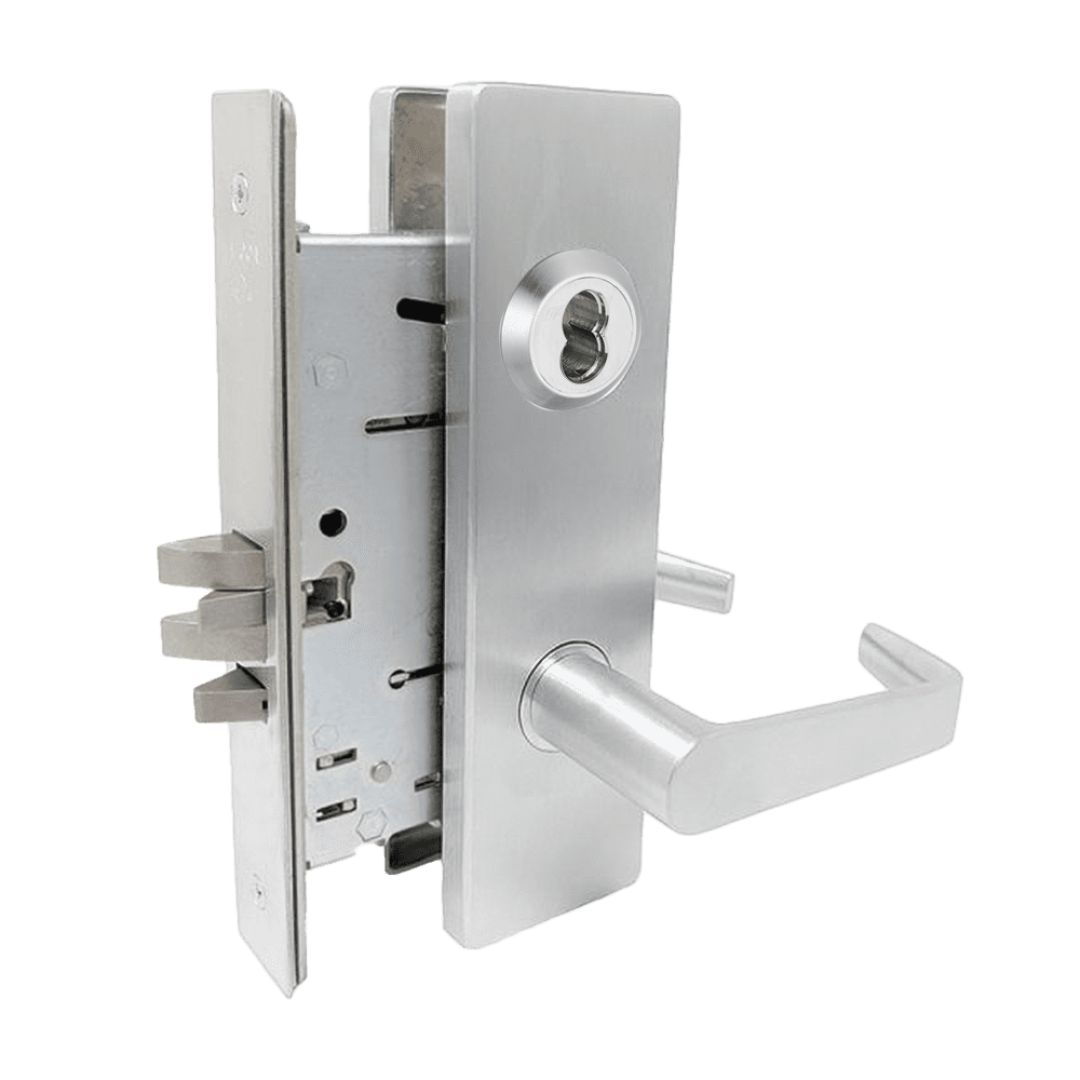

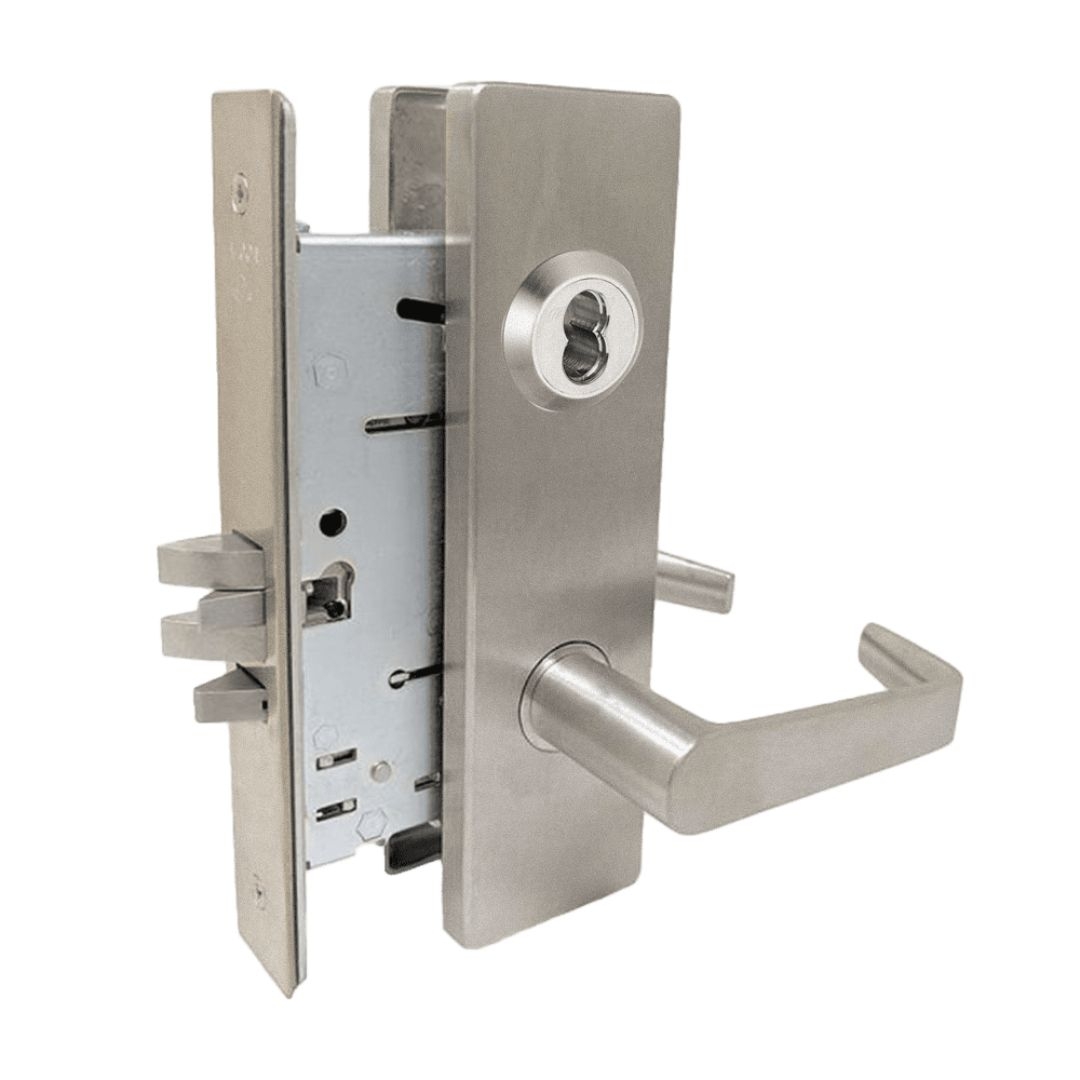

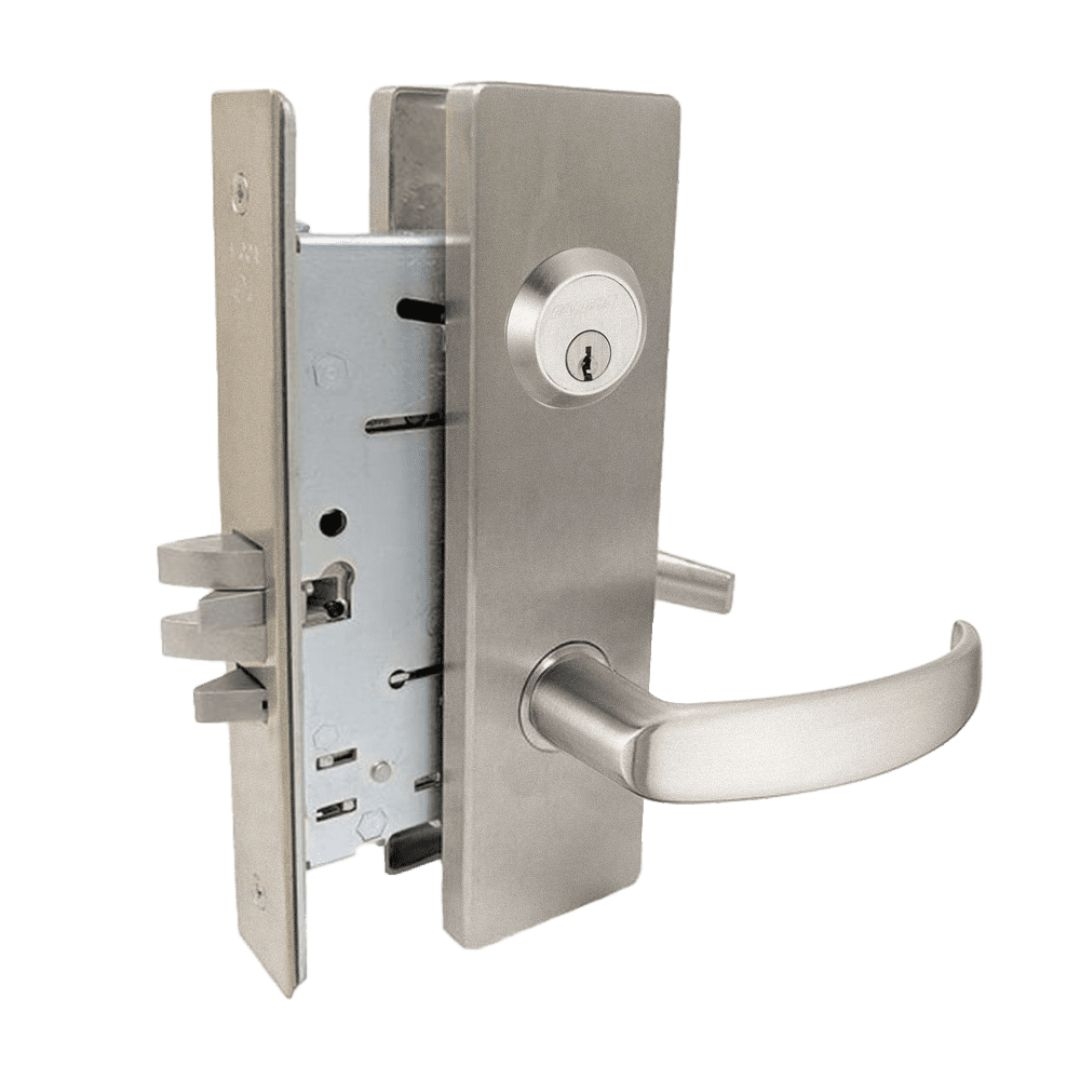

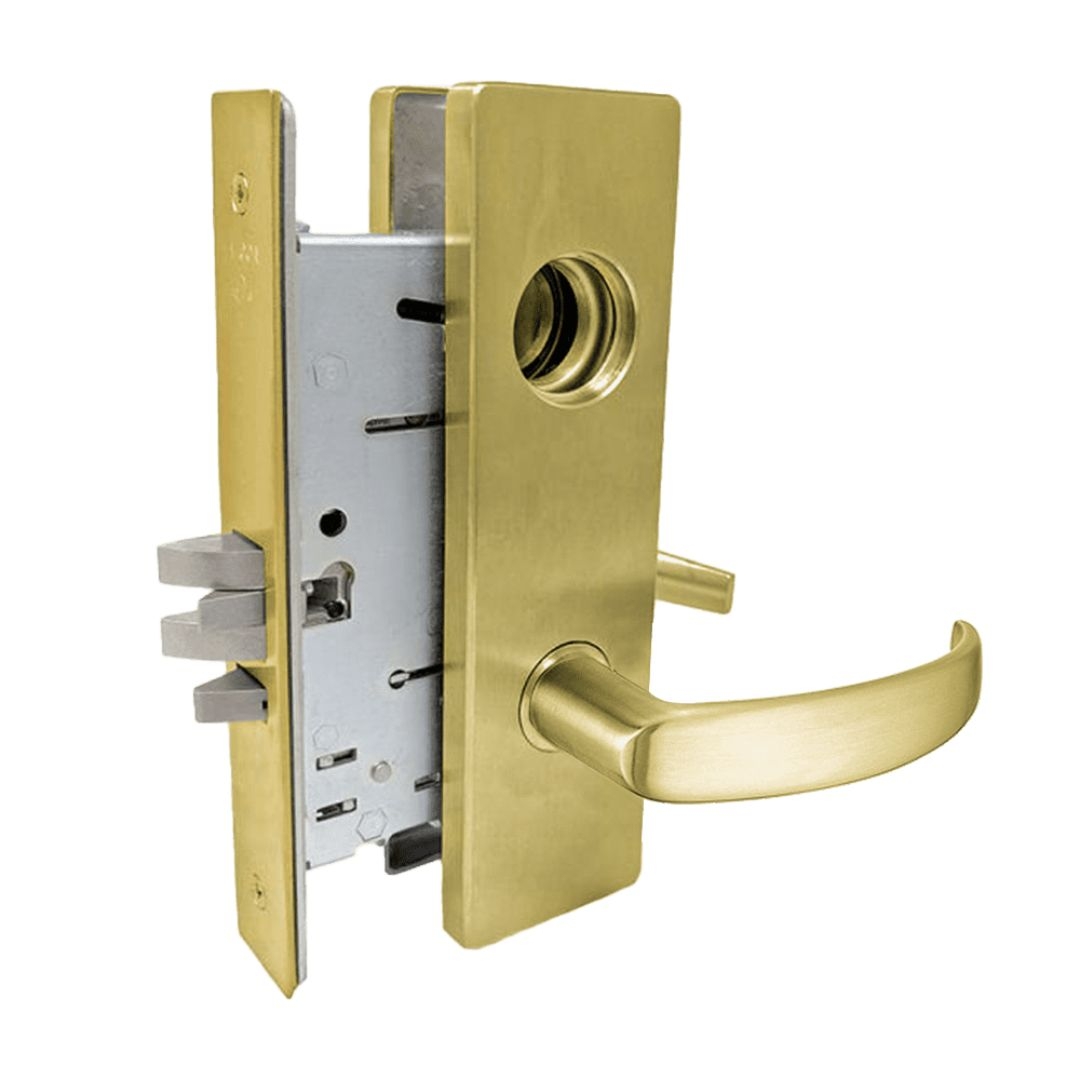

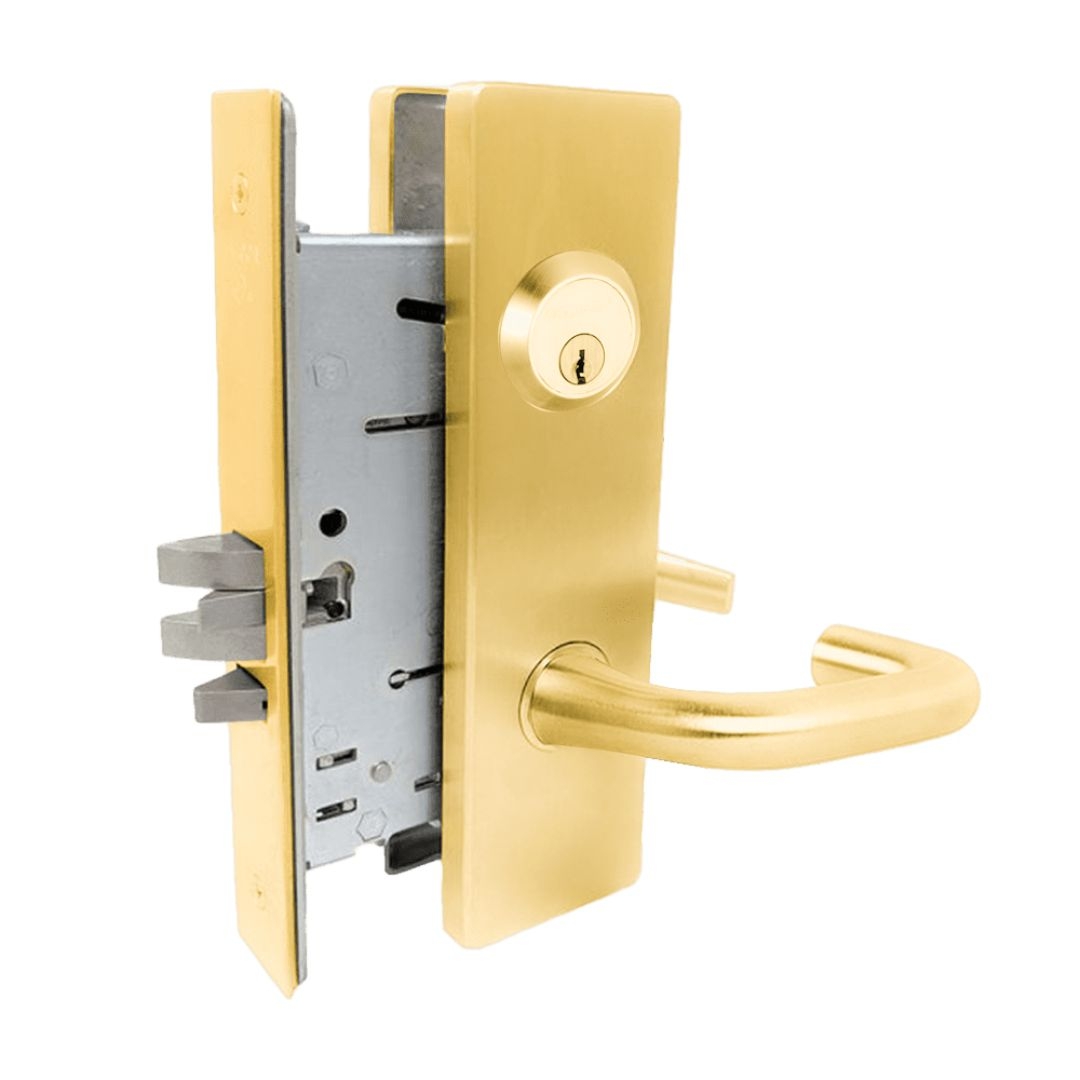

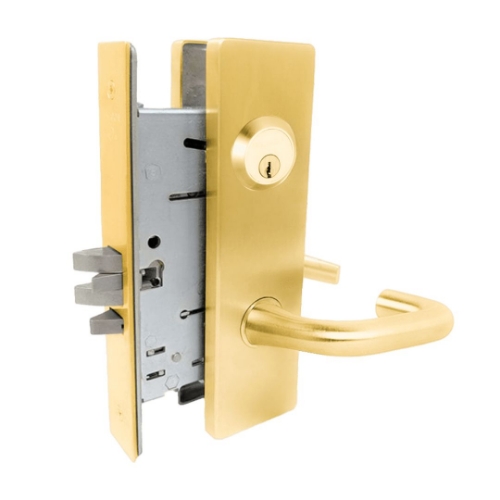

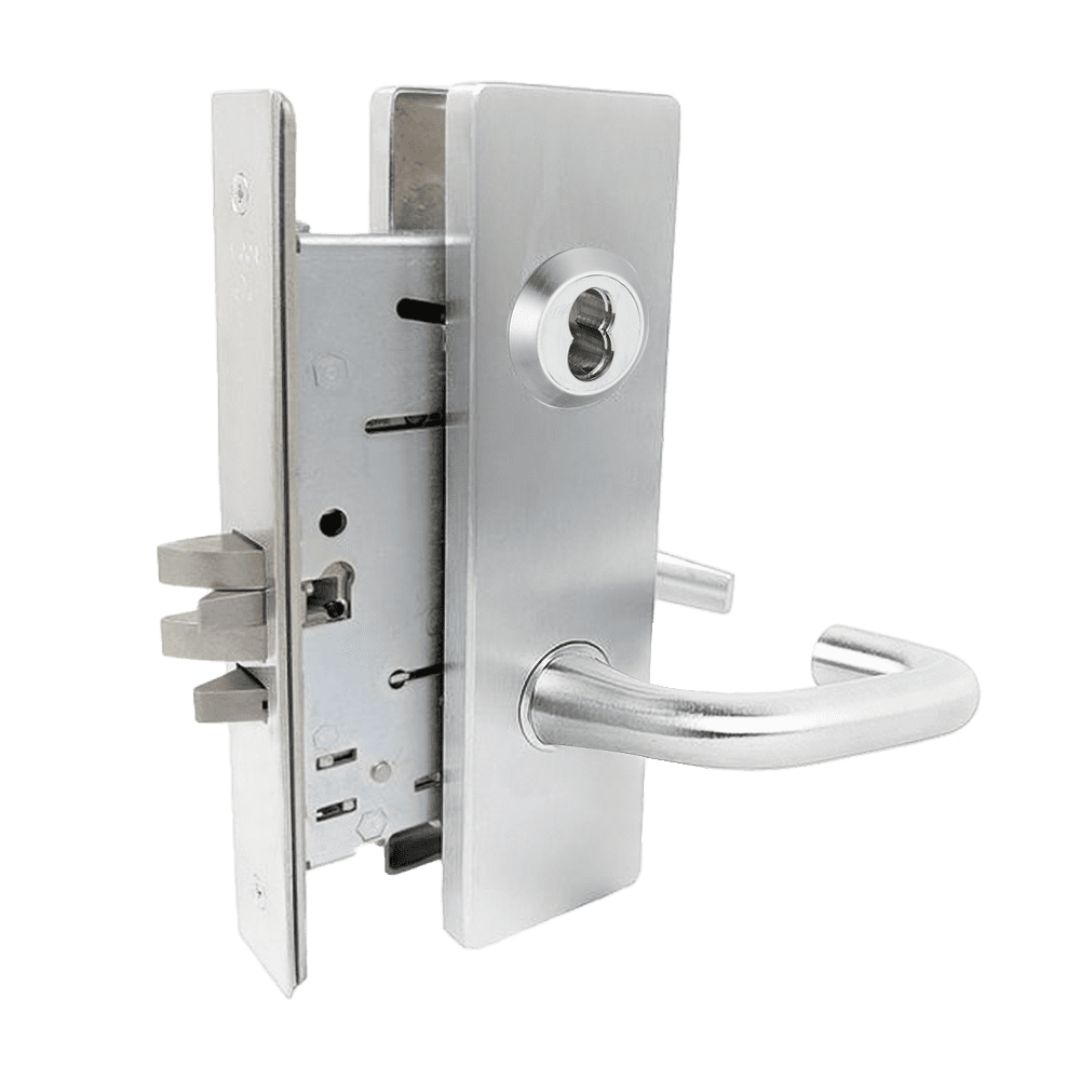

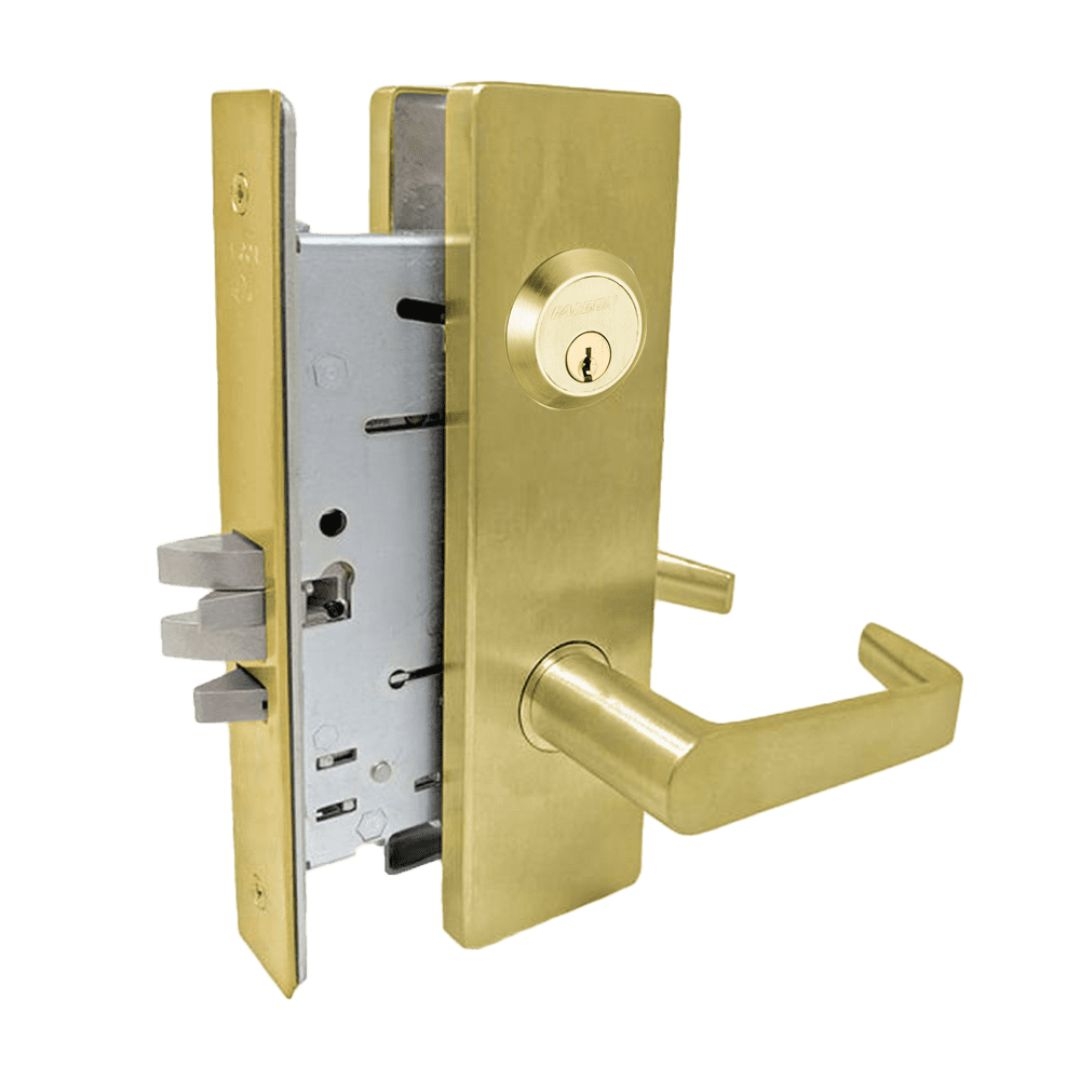

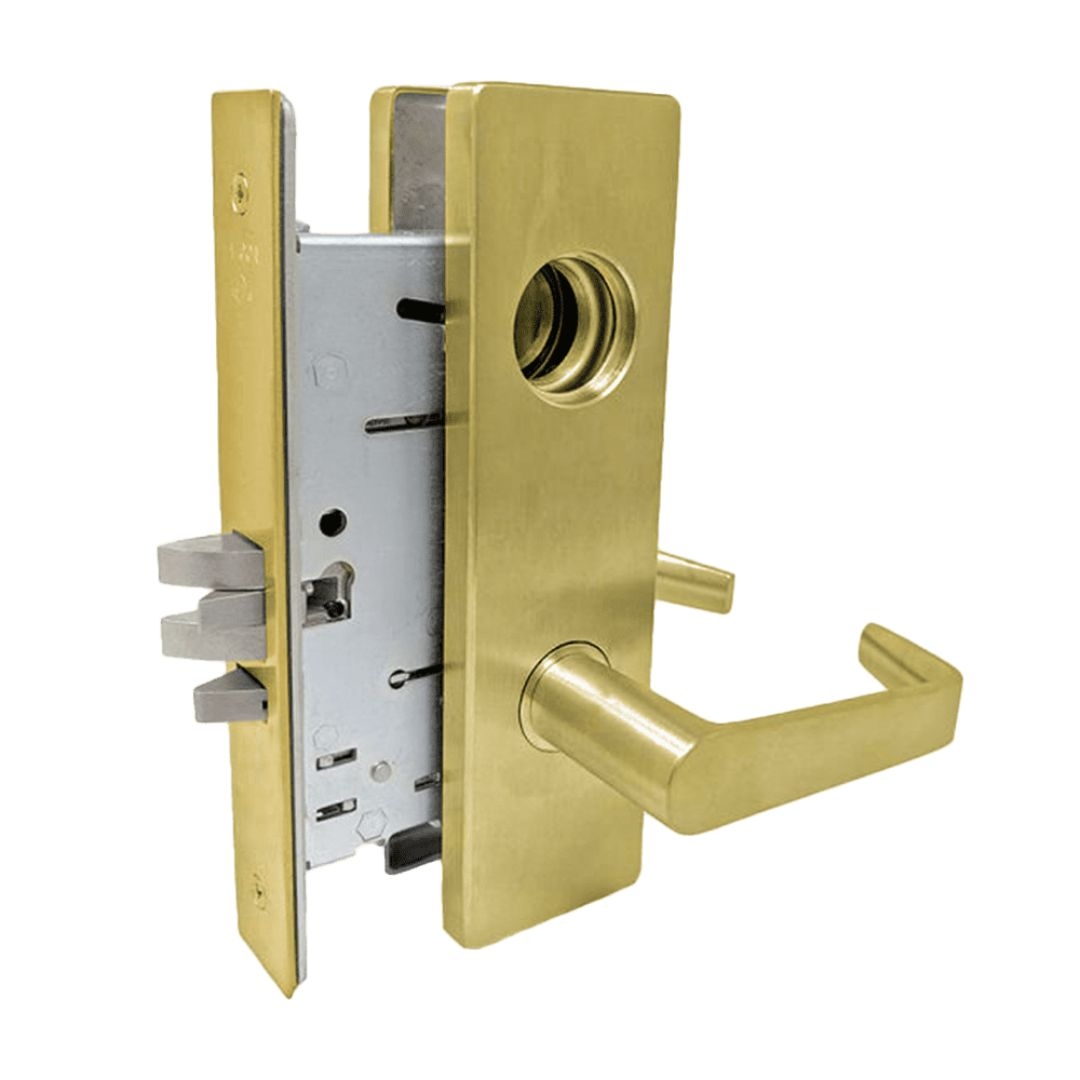

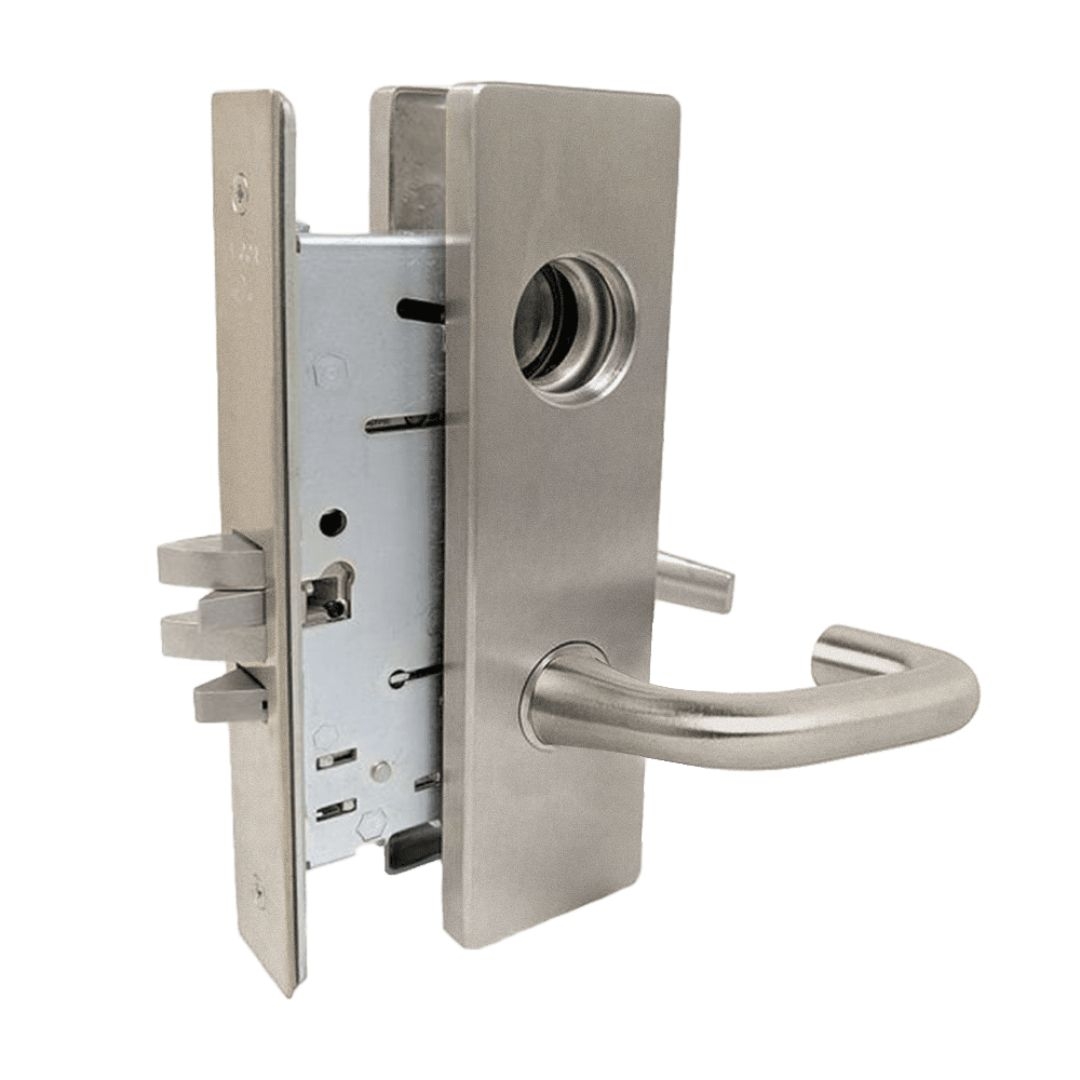

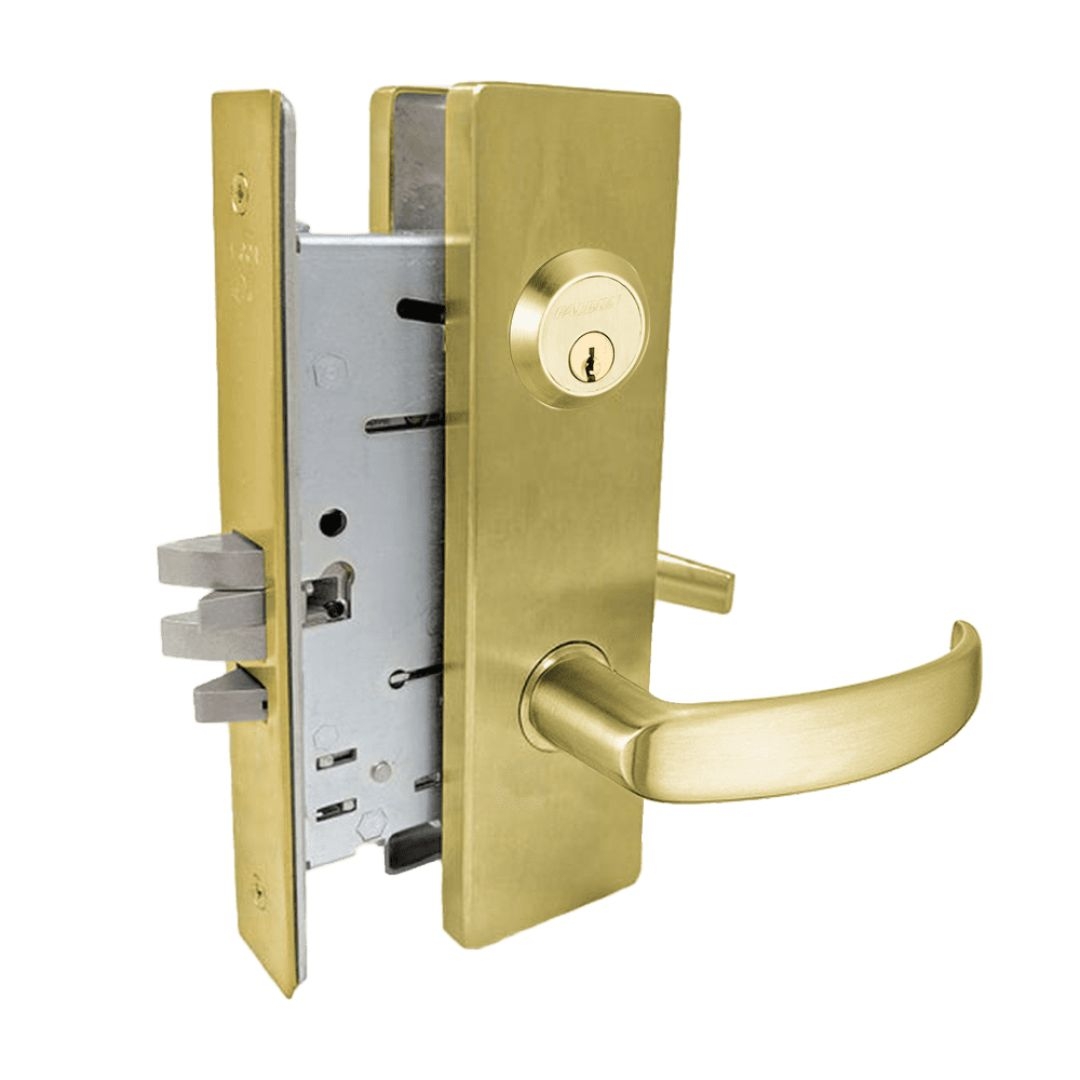

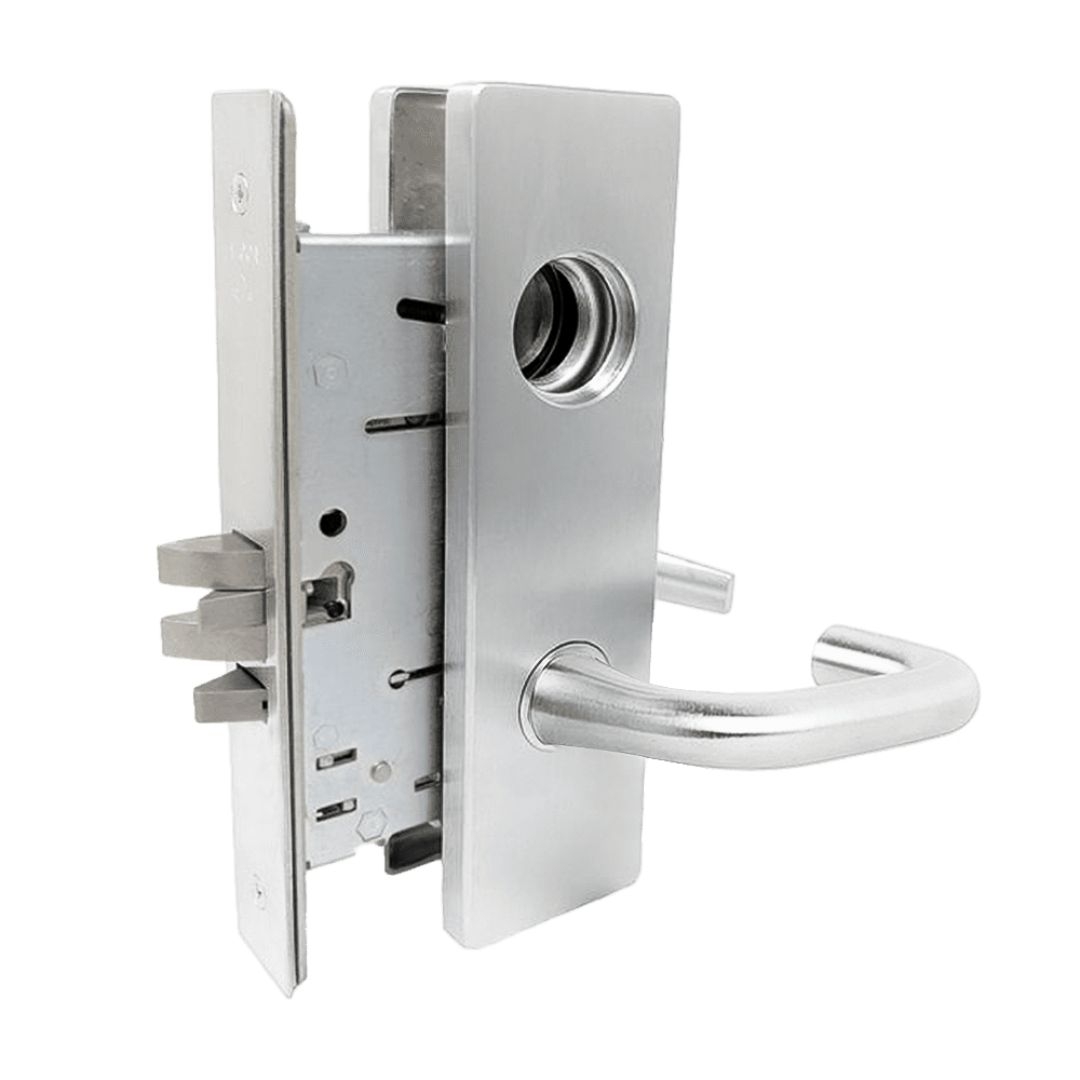

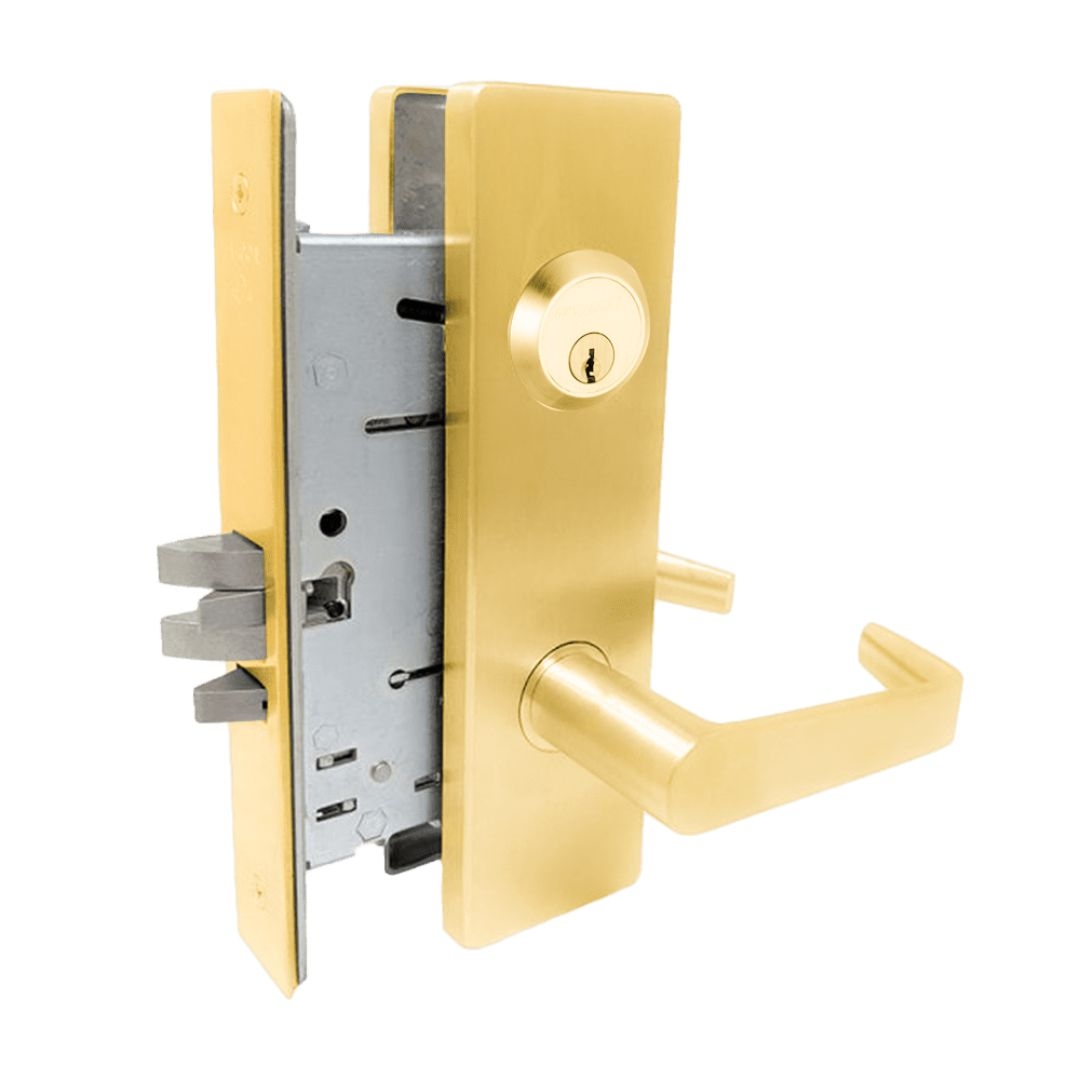

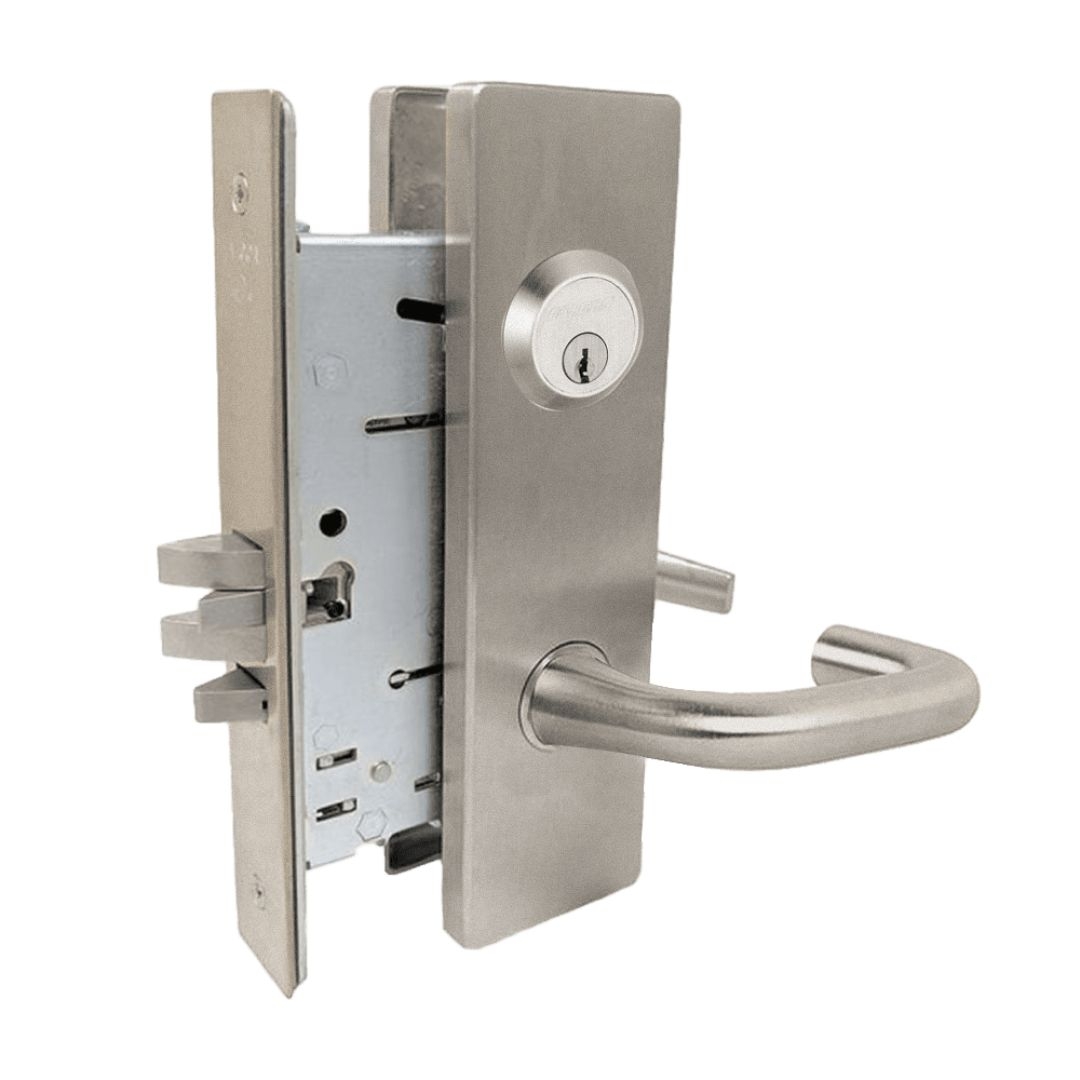

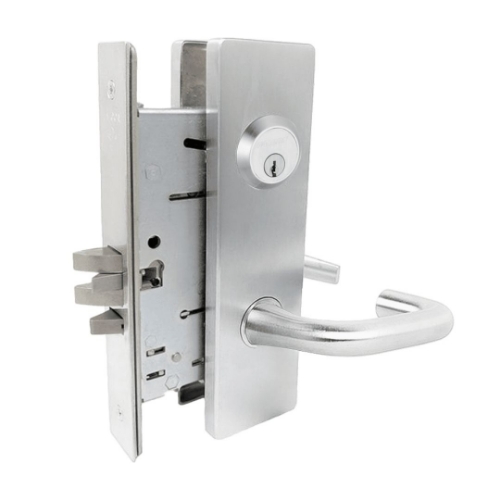

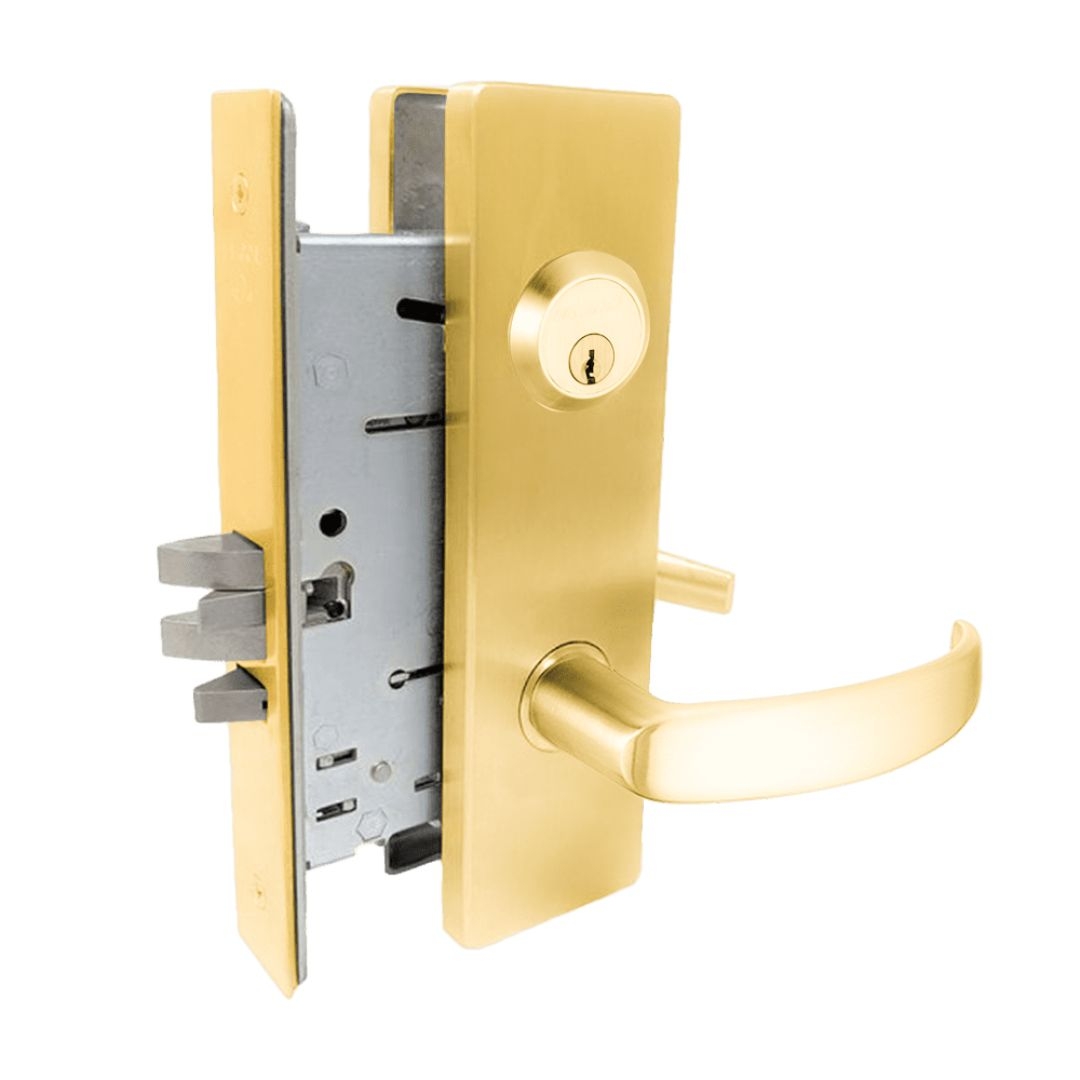

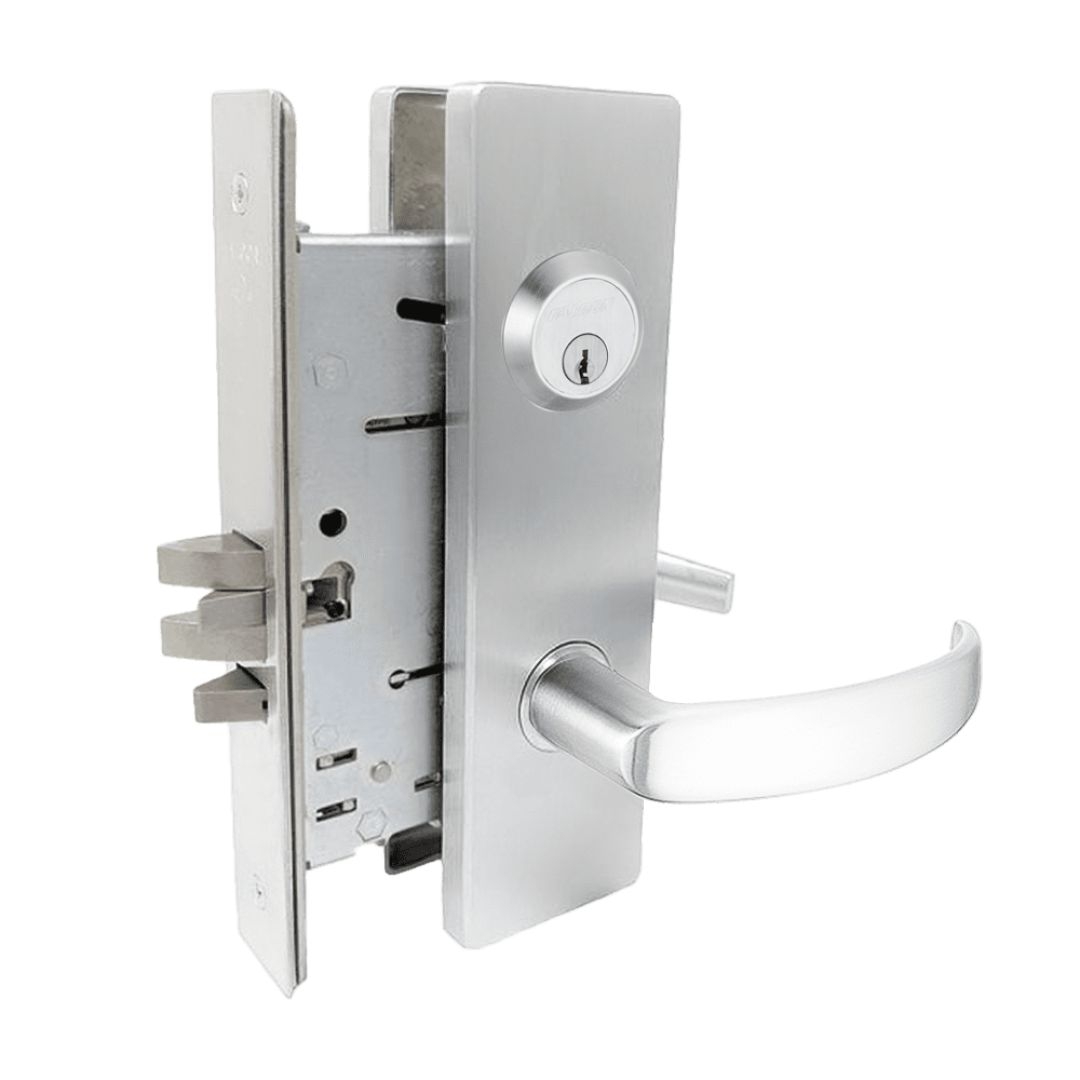

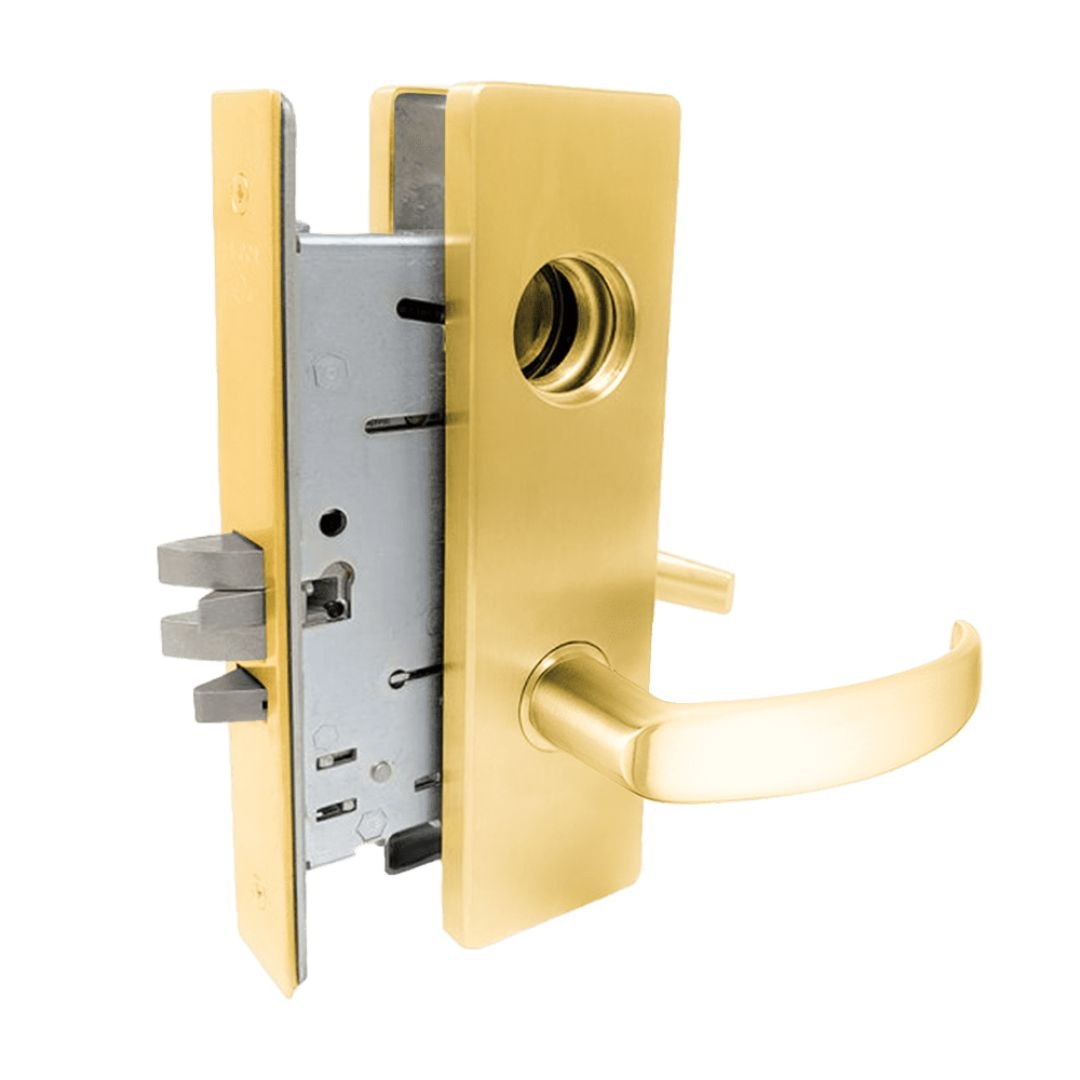

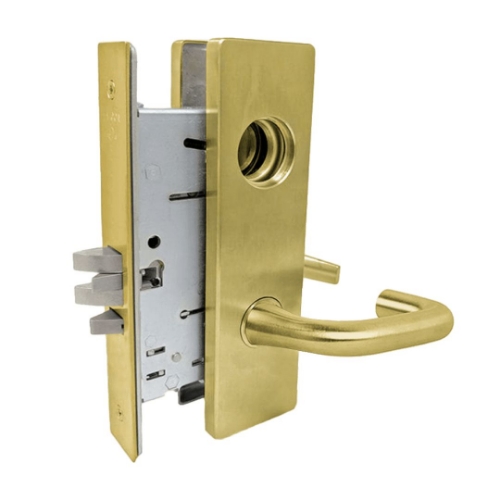

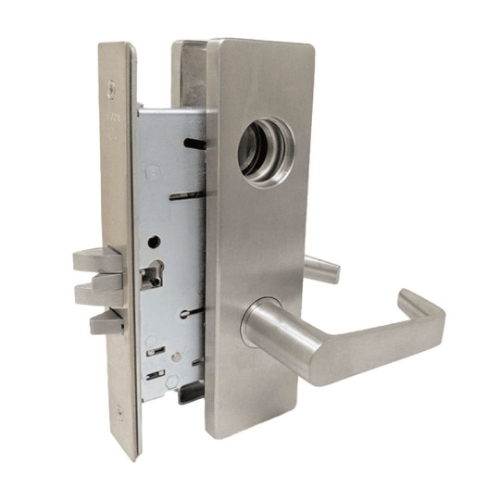

Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function

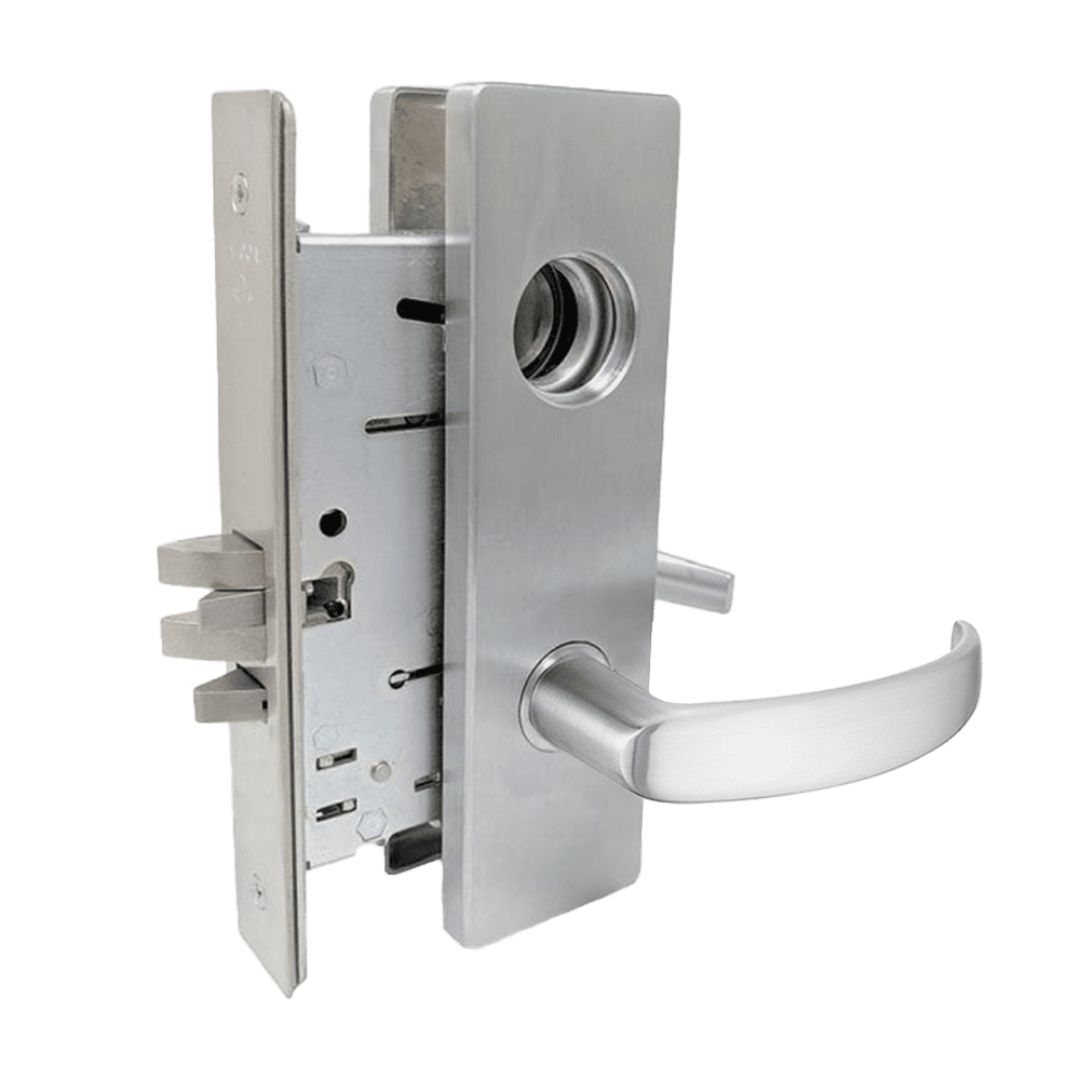

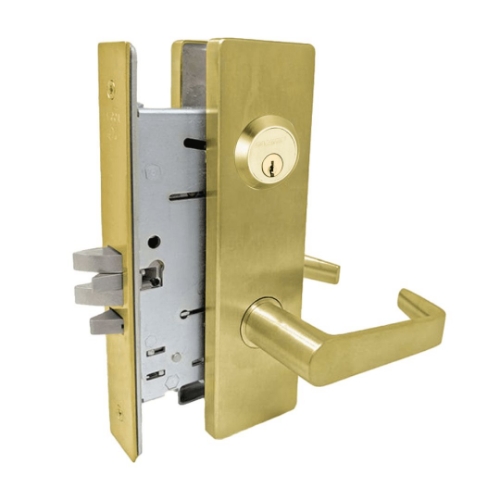

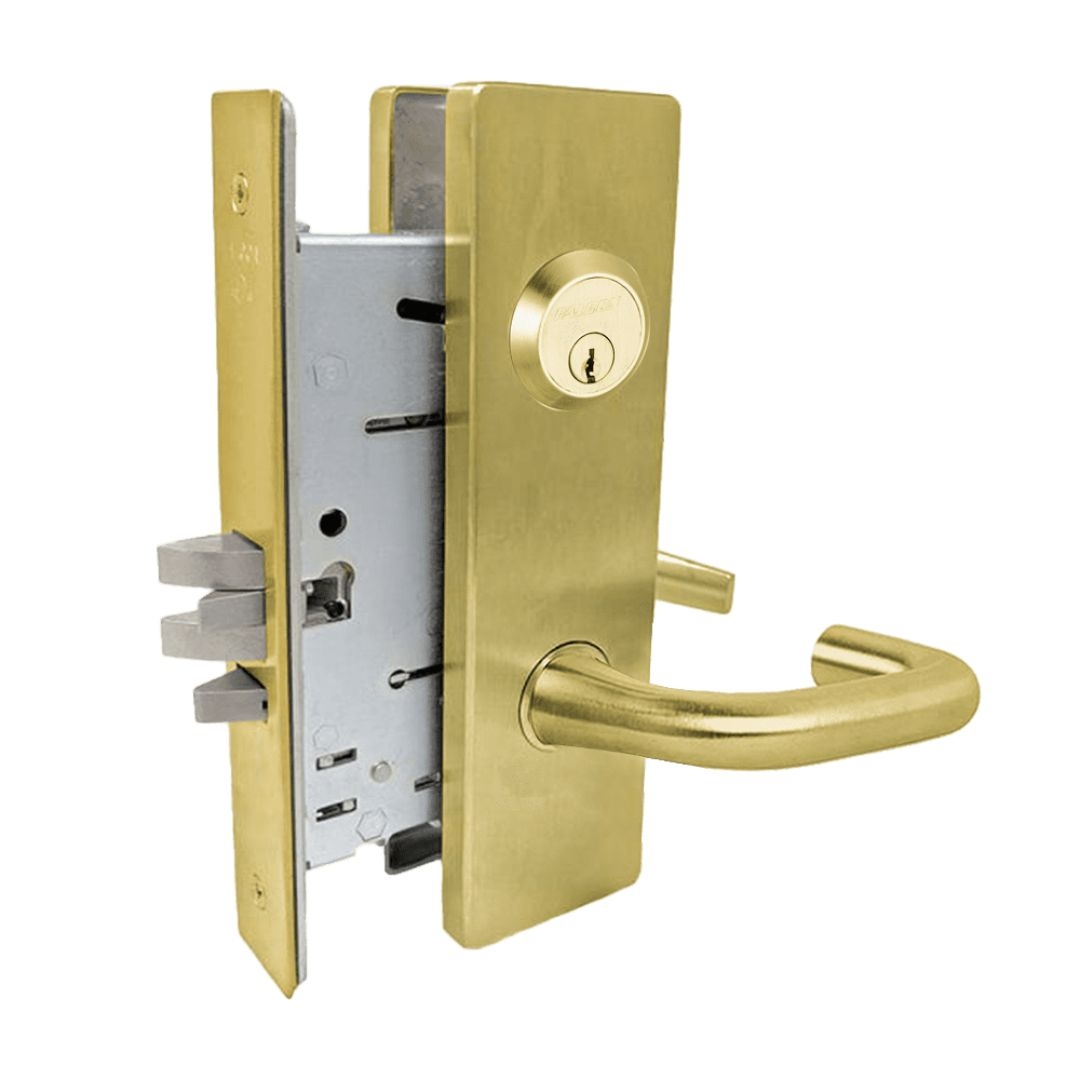

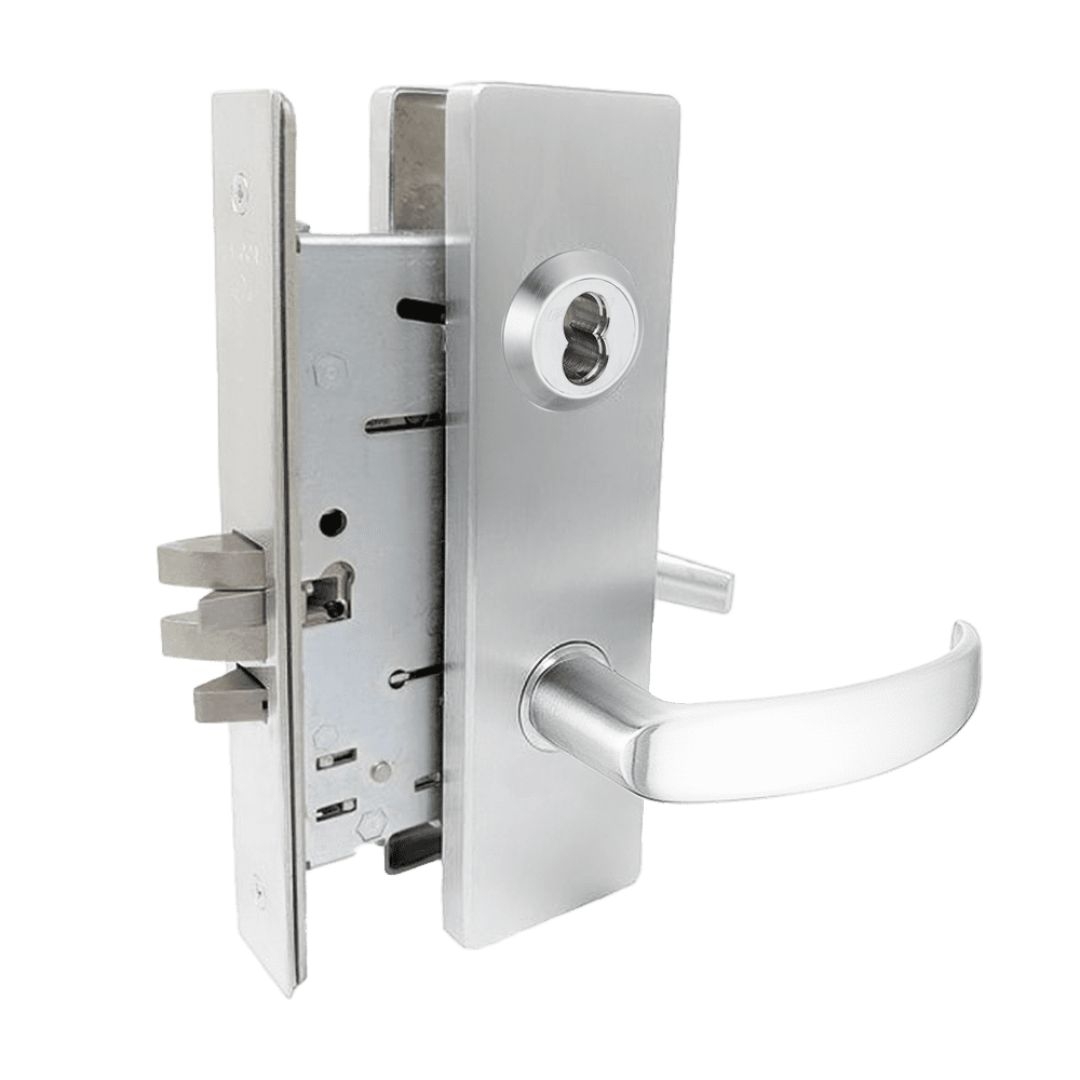

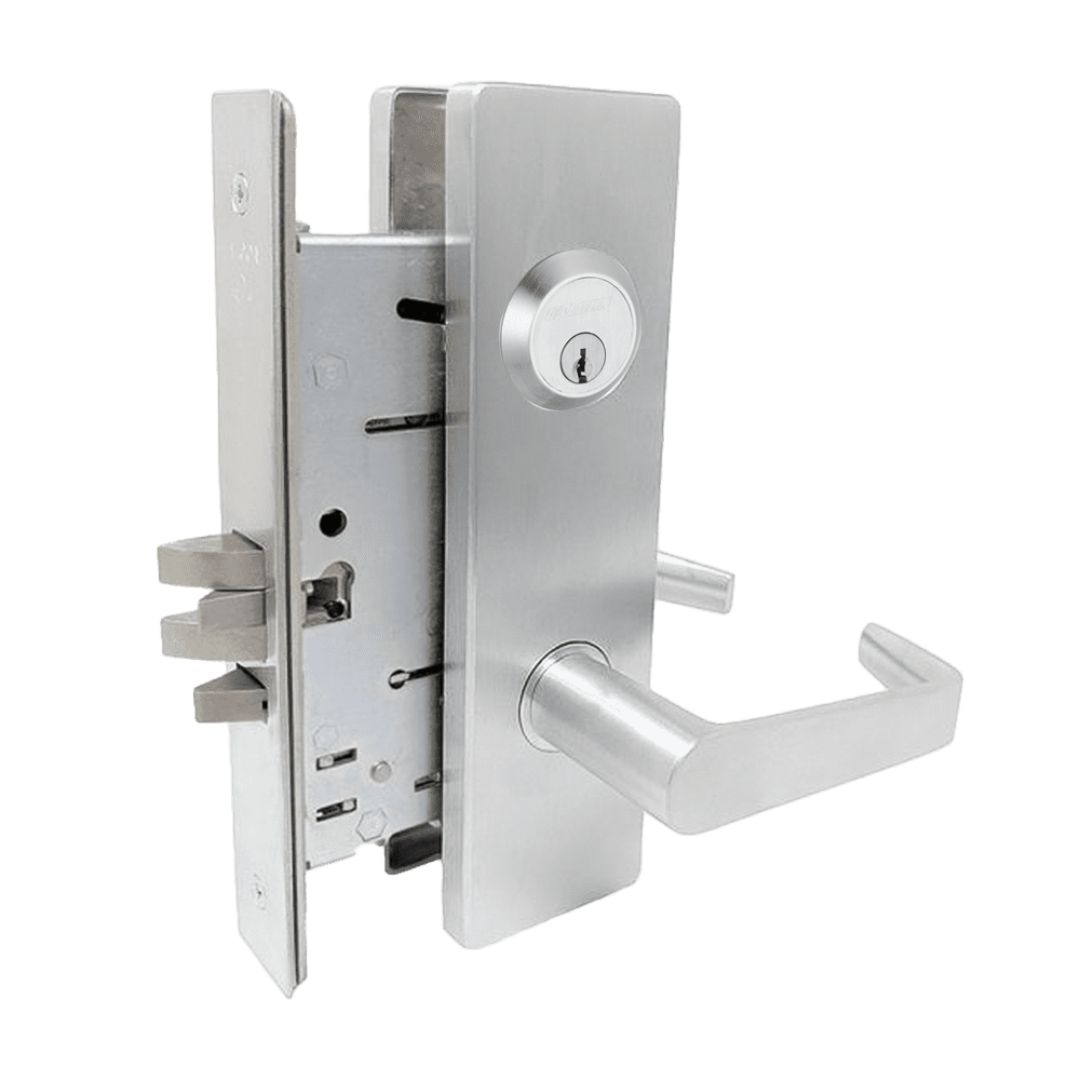

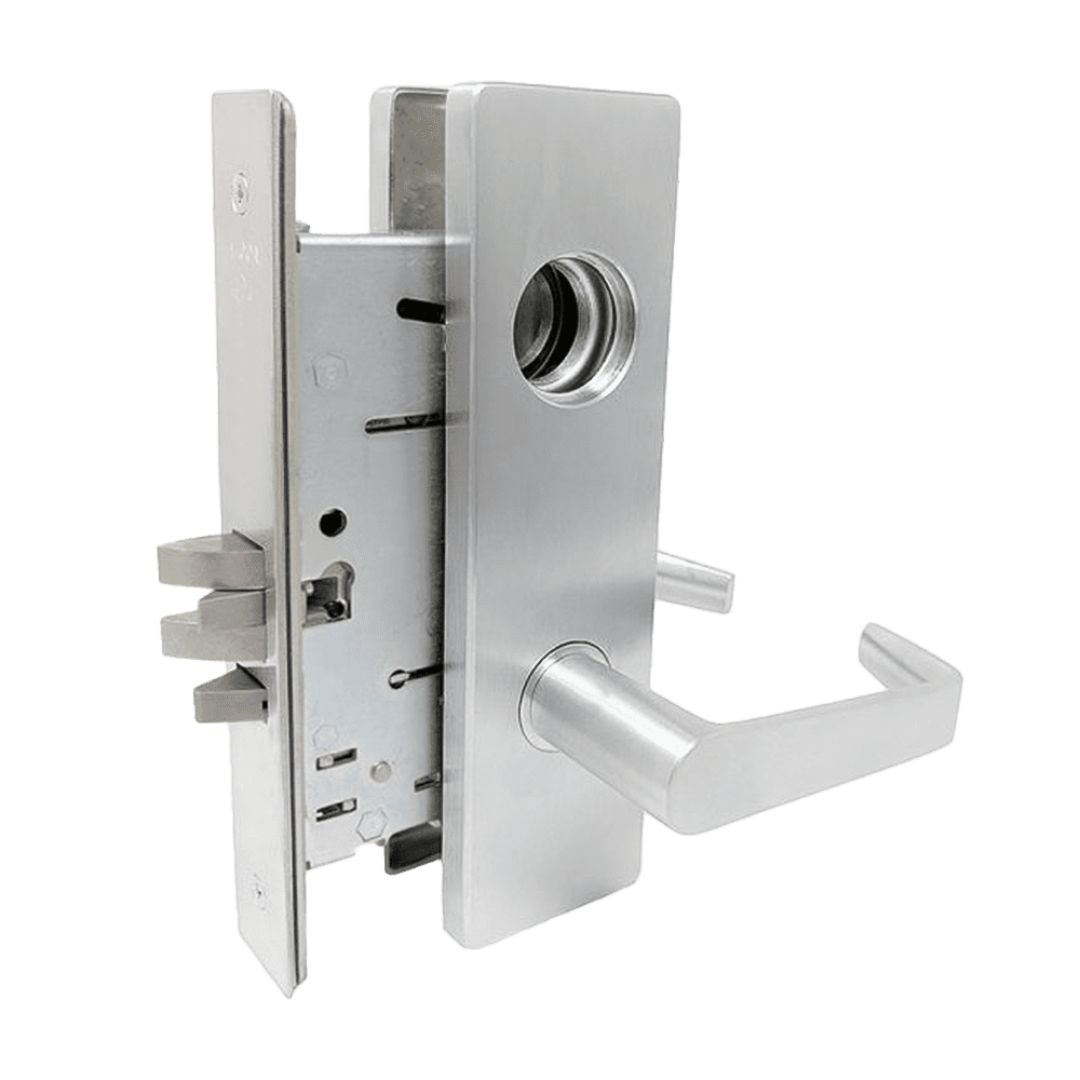

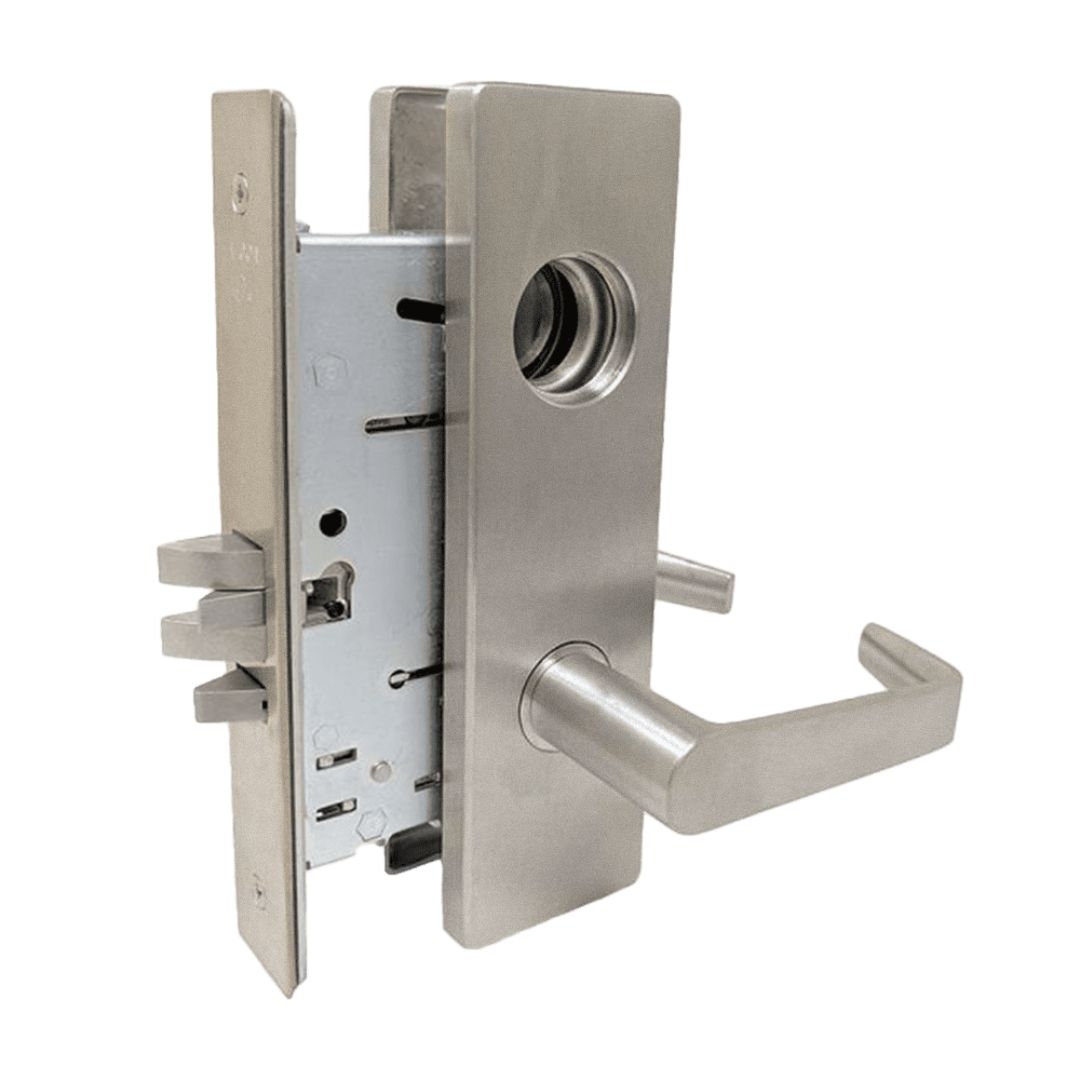

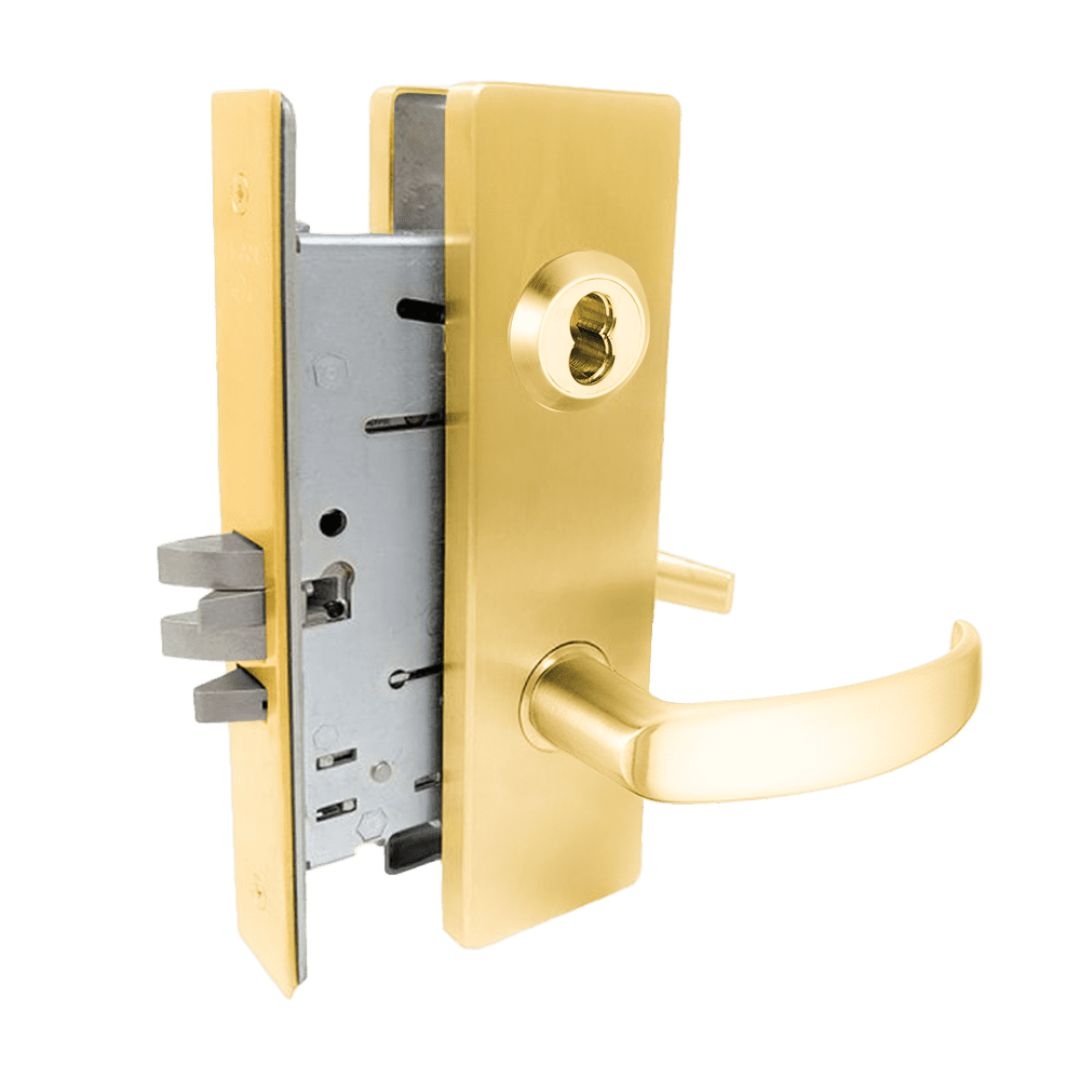

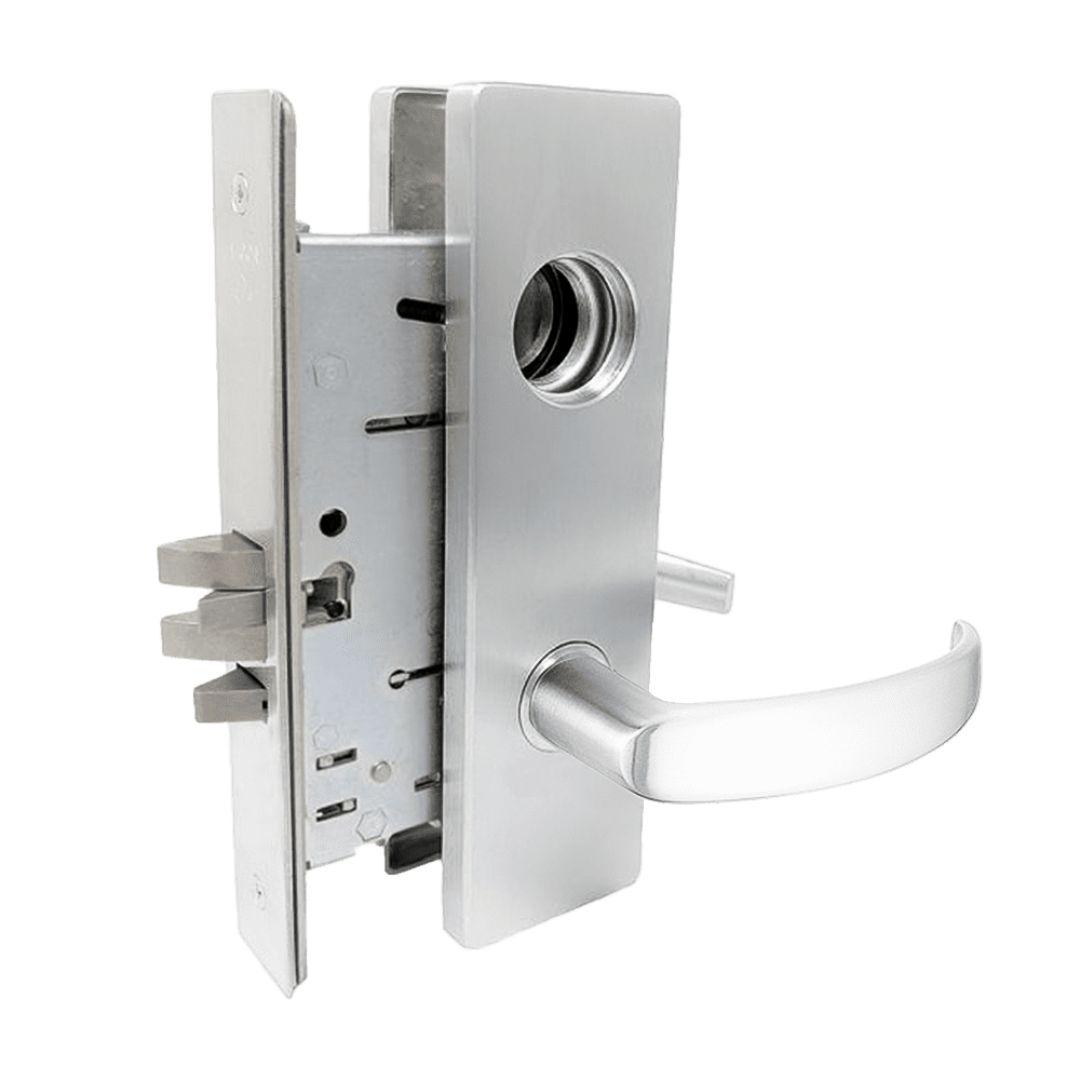

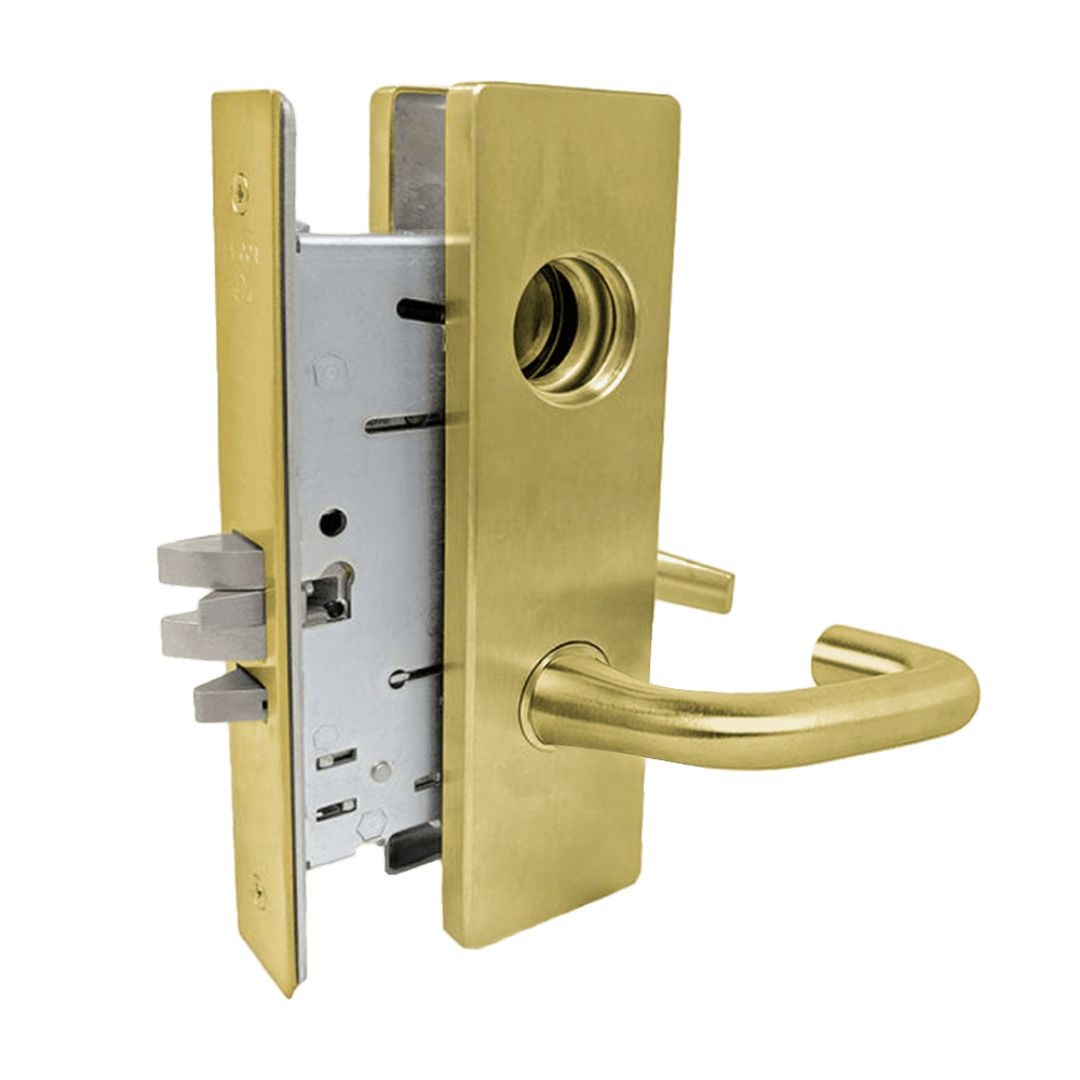

Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
MA541

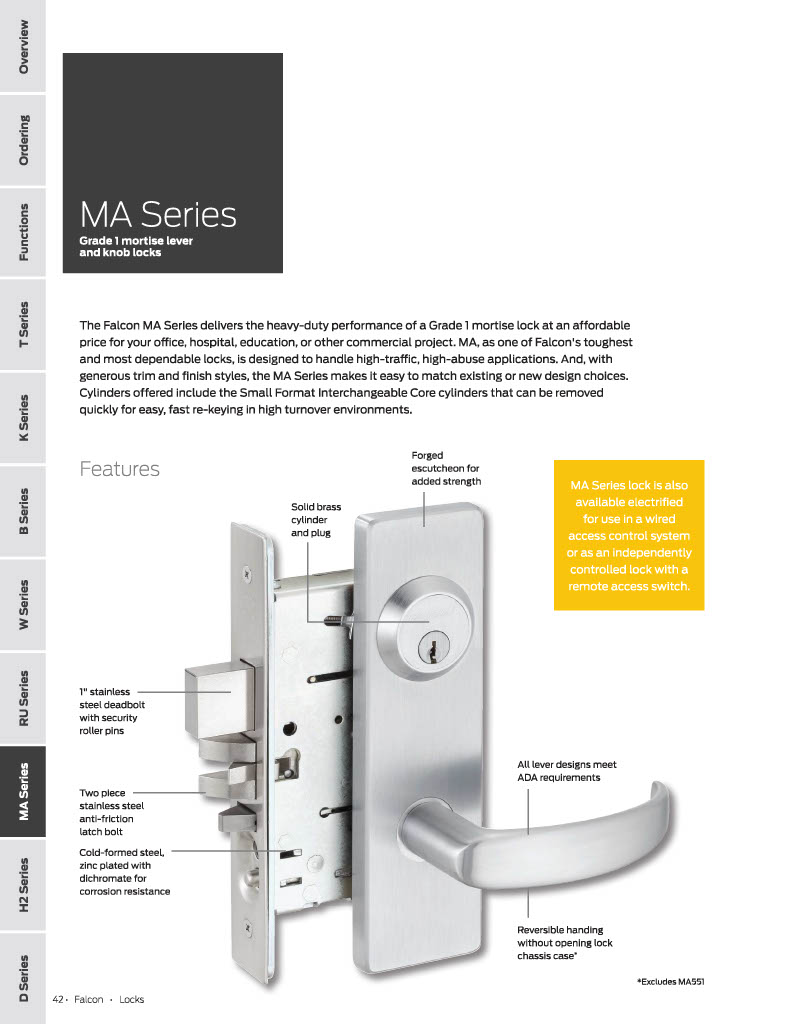

1-FalconMA-42

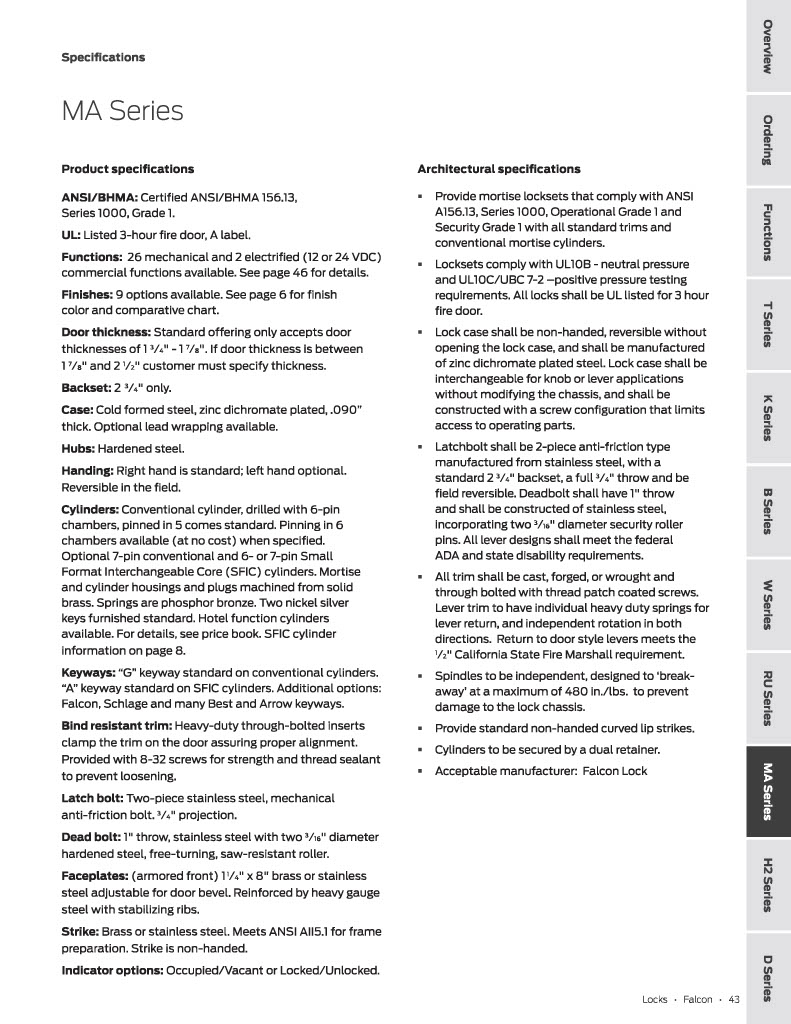

1-FalconMA-43
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
MA541
1-FalconMA-42
1-FalconMA-43
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
naxt
prev

Product Details

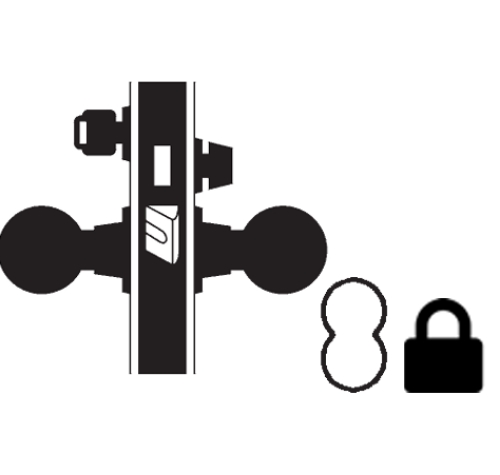

Falcon MA541 Entry/Office Mortise Lock - ANSIF21

Latch bolt operated by knob/lever from either side. Dead bolt operated by key from outside or turn from inside.

MA Series Lock Features

Door thickness: Standard accommodates thickness of 1-3/8to 2-1/2".

Backset: 2-3/4 only.

Case: Cold formed steel, zinc dichromate plated, .090thick.

Hubs: Hardened steel.

Handing: Right hand is standard; left hand optional. Reversible in the field.

Cylinders: Solid brass cylinder and plug.Standard mortise cylinders are furnished as 5-or 6-pin as standard. 6 or 7-pin are available on interchangeable core cylinder.

Furnished with two nickel silver keys standard

Keyways: G keyway standard on standard cylinder. A Keyway standard on I/C cylinder.

Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.

Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4projection.

Dead Bolt: 1 throw, stainless steel with two 13/16diameter hardened steel, free-turning, saw-resistant roller.

Faceplates: (Armored Front) 1-1/4x 8brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.

Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.

Electrified Functions: Available in 12 or 24 VDC. ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.

UL: 3 hour A label.

Model: Falcon MA541, DG, Dane-Gala, QG, -Quantum-Gala, SG, Sutro-Gala, DN, Dane-Napa, QN, -Quantum-Napa, SN, Sutro-Napa, HG, Hana-Gala, HN, Hana-Napa, 626, Satin Chrome, 613, Oil Rubbed Bronze, 630, Satin Stainless Steel, MA541DG, MA541QG, MA541SG, MA541HG, MA541DN, MA541QN, MA541SN, MA541HN, MA541DG626, MA541DG613, MA541DG630 ,MA541QG626, MA541QG613, MA541QG630, MA541SG626, MA541SG613, MA541SG630, MA541DN626, MA541QN626, MA541SN626, MA541HG626, MA541HN626

Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function

SKU: MA541

In Stock
Picture for manufacturer Falcon
icon Chat

$325.85

Cylinder *

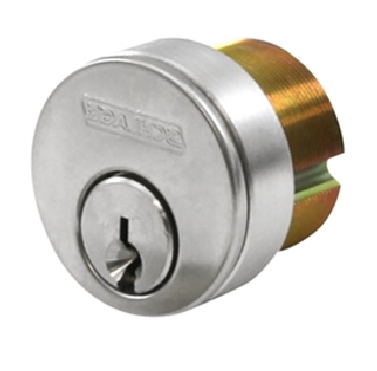

P - 6 Pin Mortise Cylinder (standard)
P - 6 Pin Mortise Cylinder (standard)

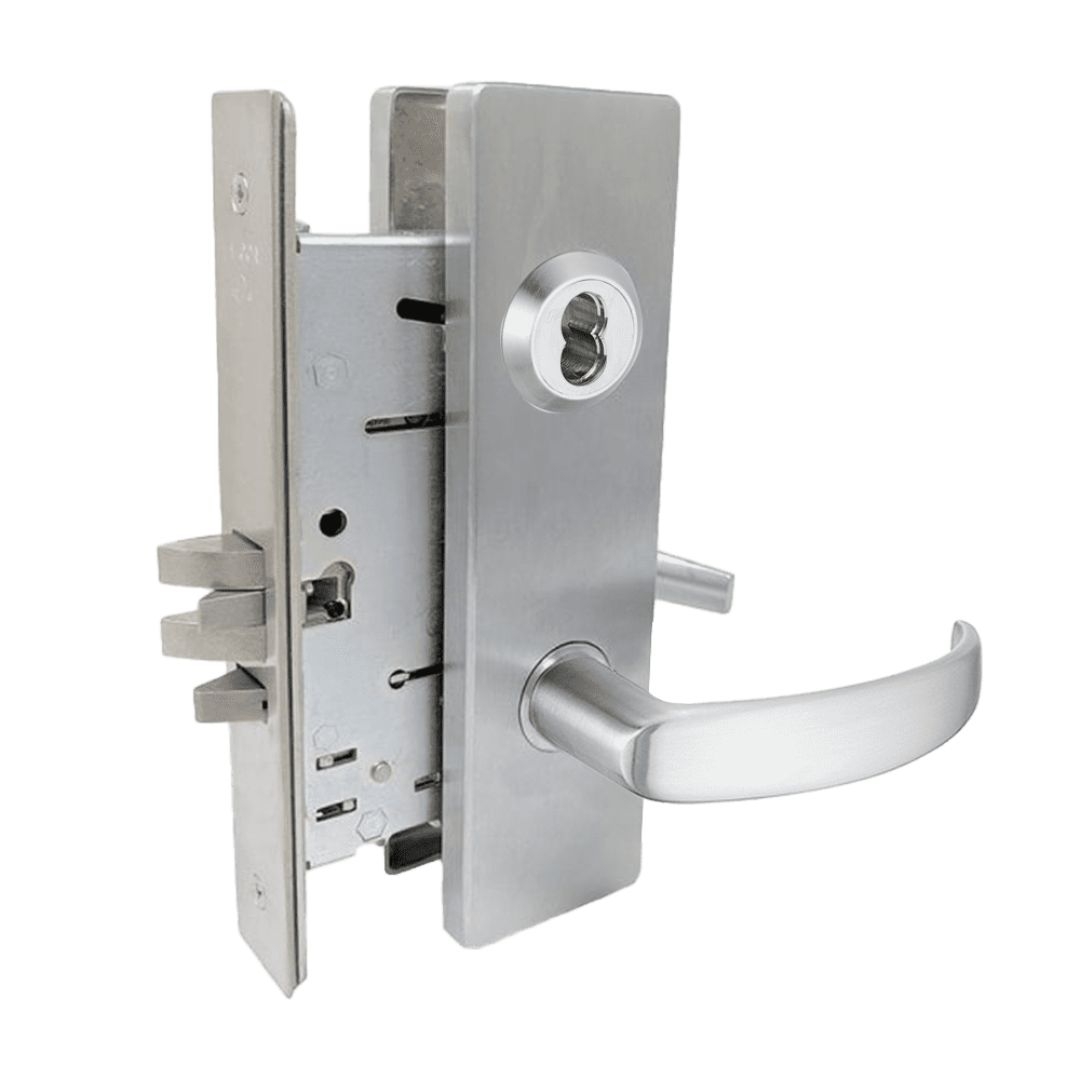

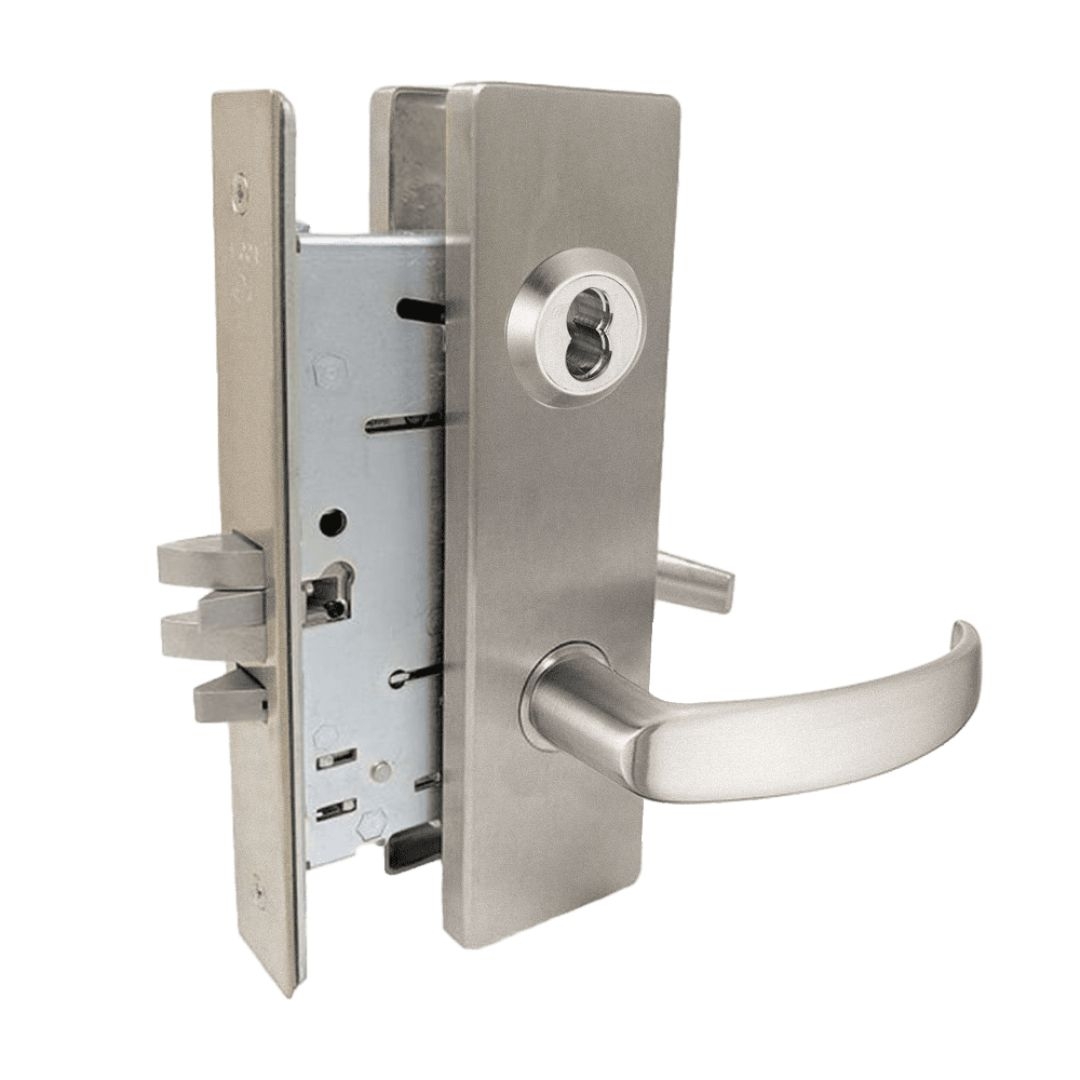

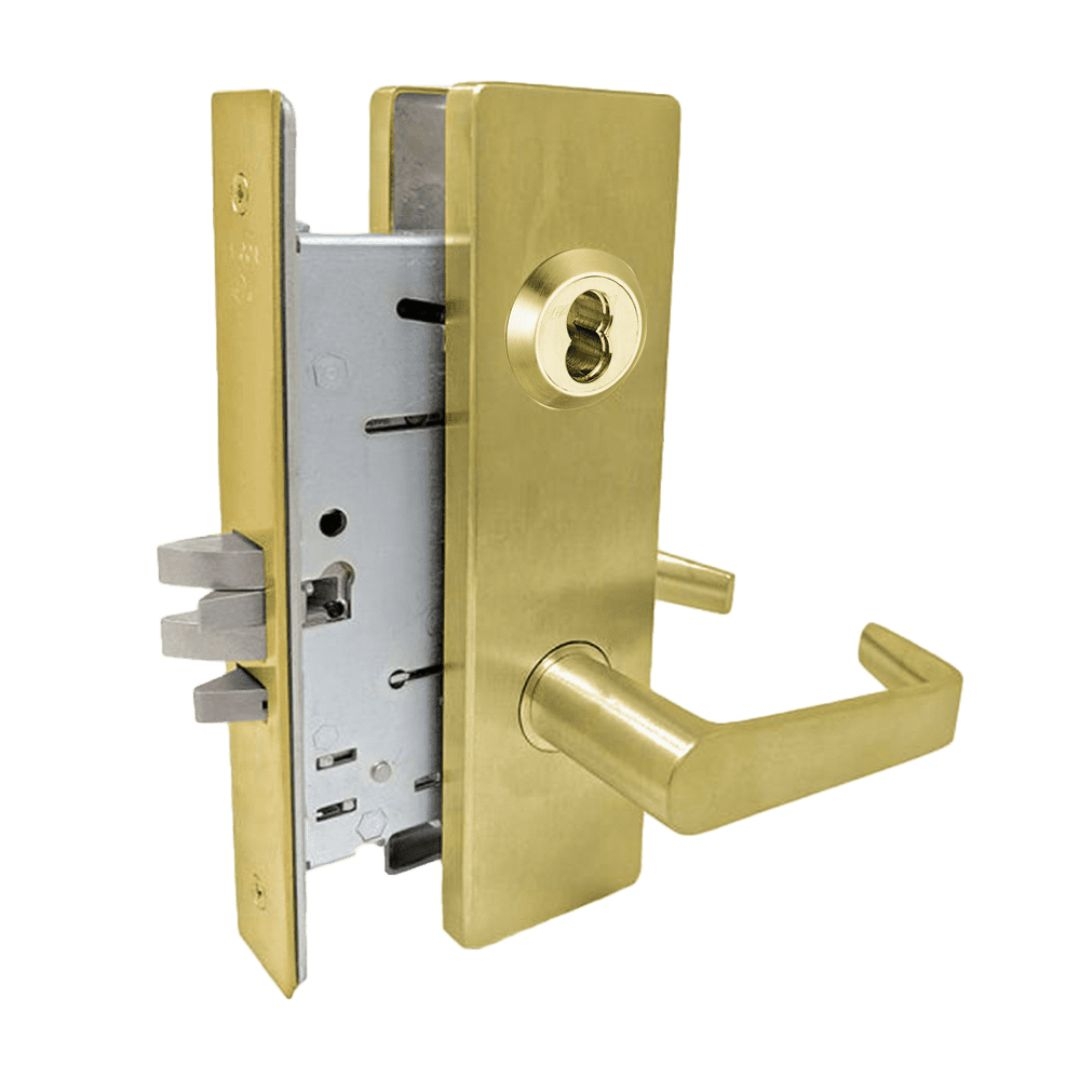

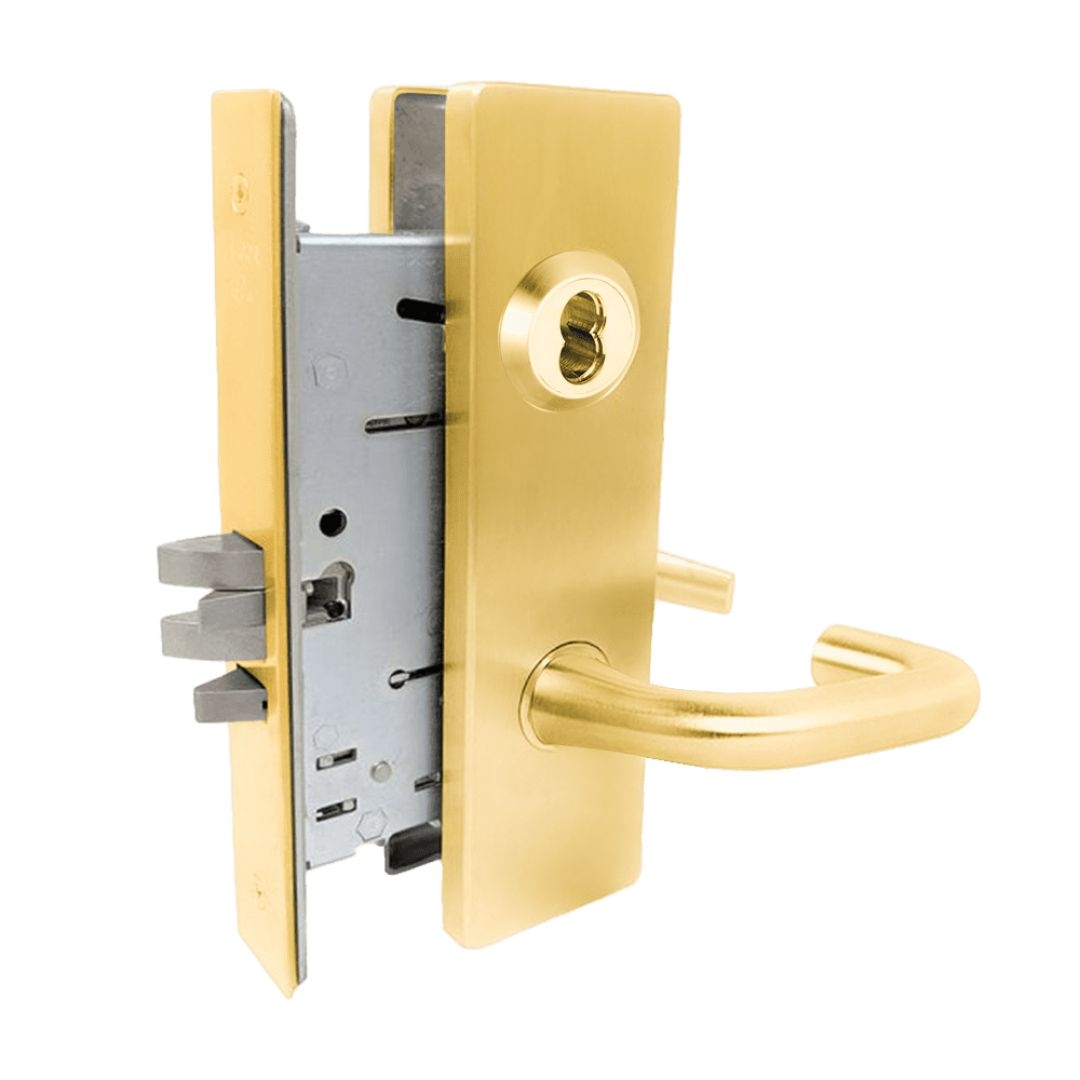

B - To Accept Best SFIC Core
B - To Accept Best SFIC Core
L - Less Cylinder
L - Less Cylinder

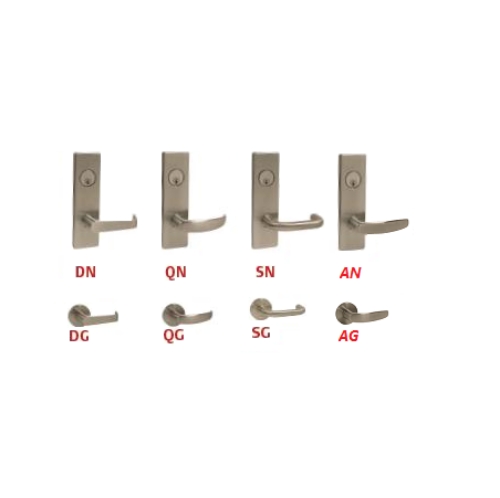

Trim *

DN - Dane Lever with Napa Escutcheon
DN - Dane Lever with Napa Escutcheon

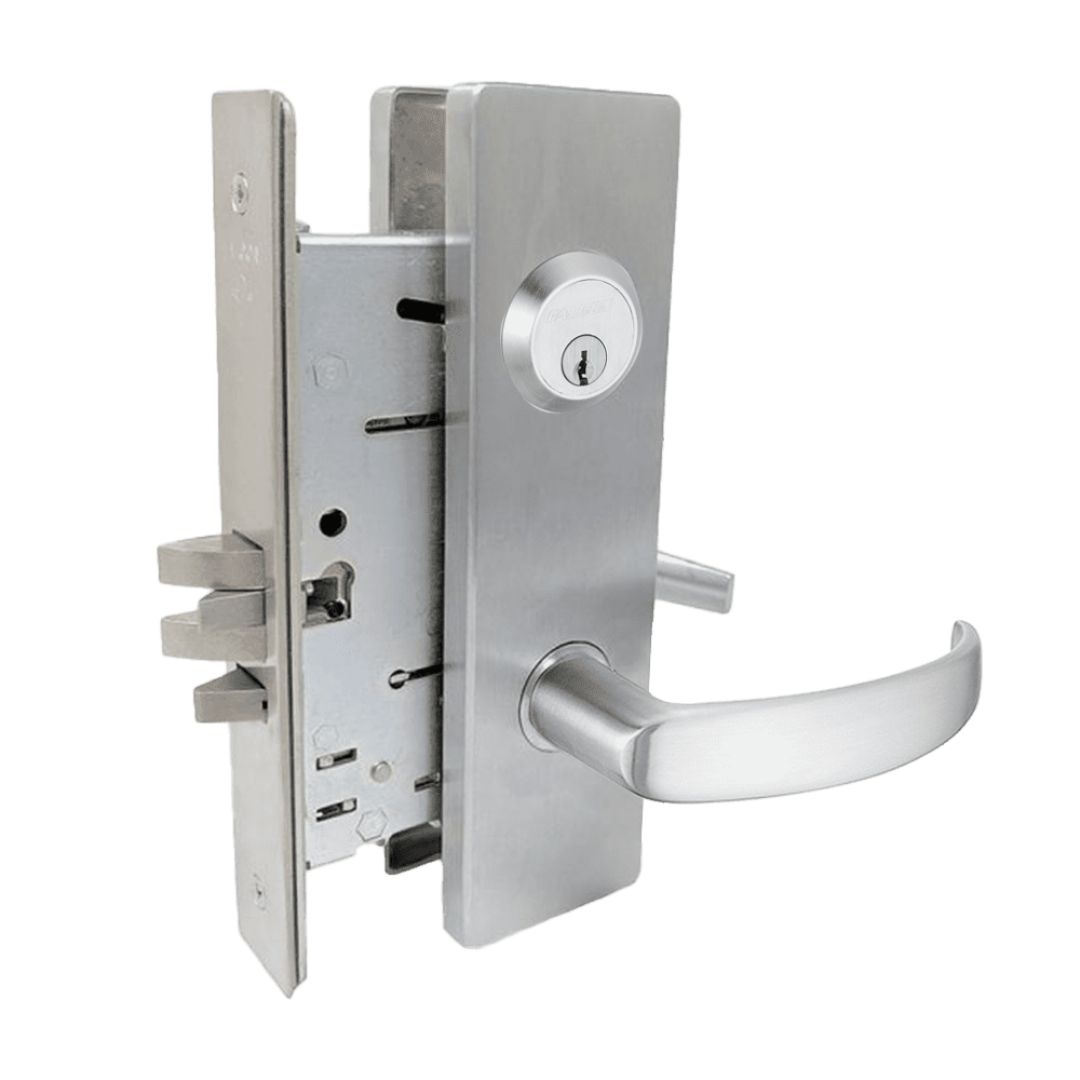

QN - Quantum Lever with Napa Escutcheon
QN - Quantum Lever with Napa Escutcheon

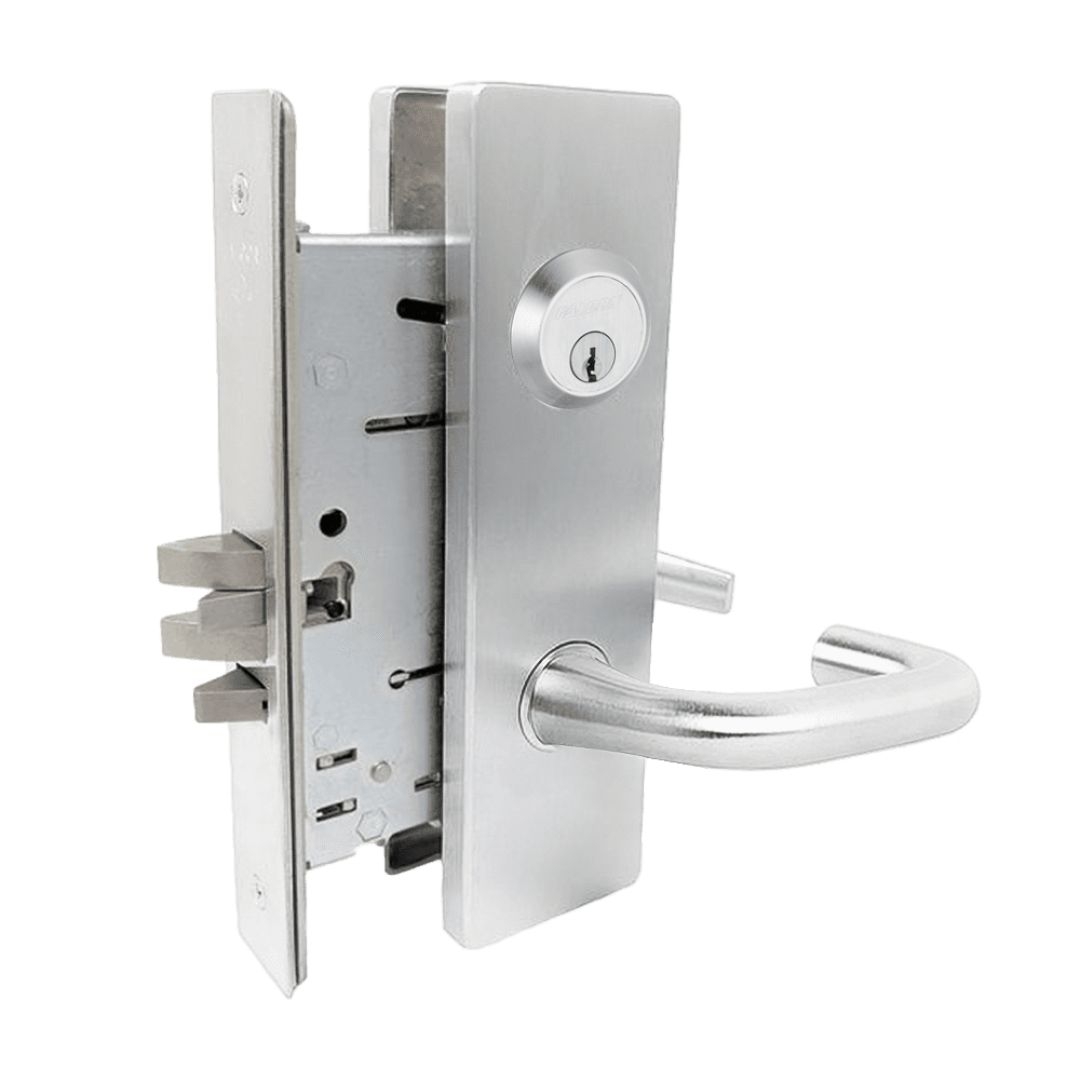

SN - Sutro Lever with Napa Escutcheon
SN - Sutro Lever with Napa Escutcheon

Finish *

626 - Satin Chrome
626 - Satin Chrome

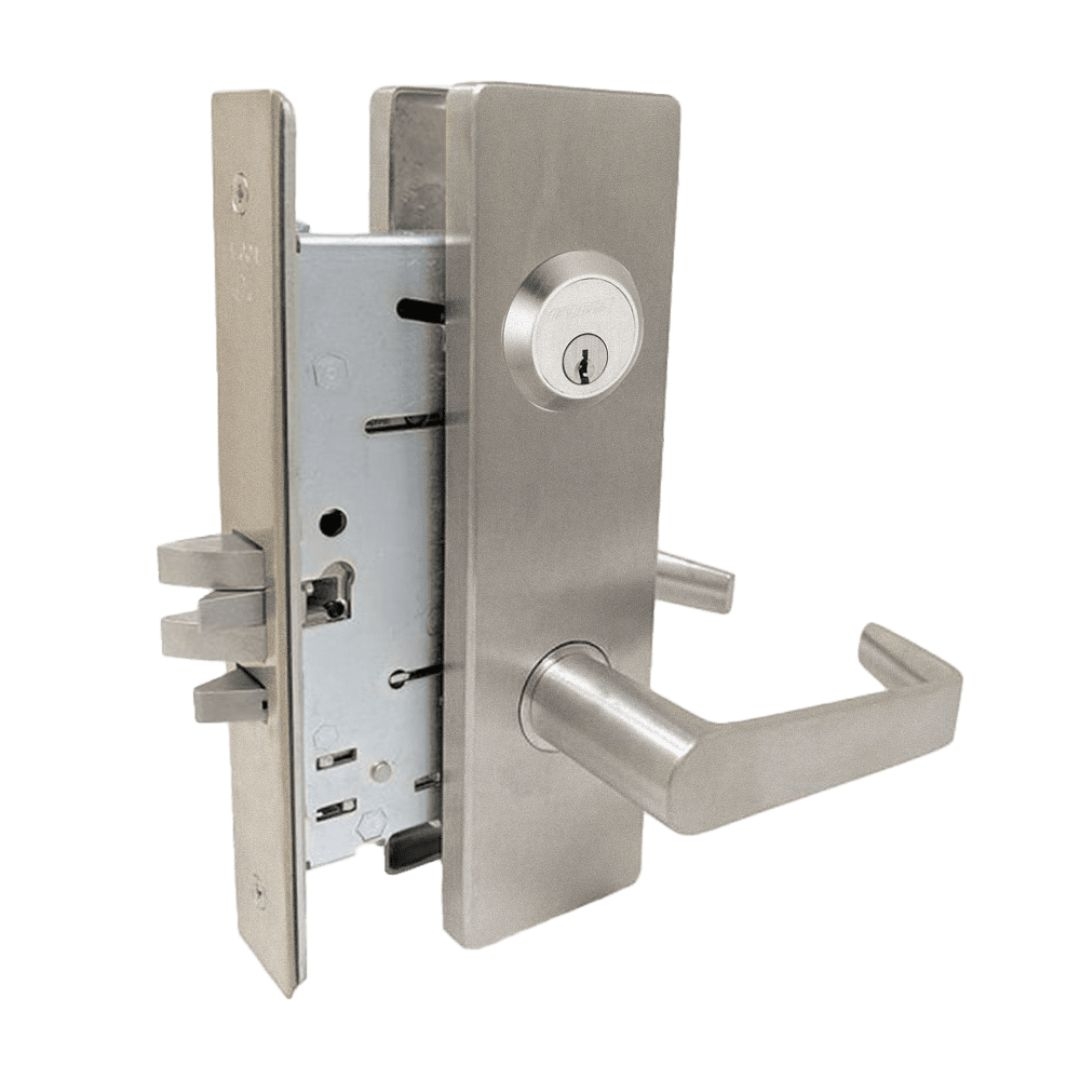

630 - Satin Stainless Steel
630 - Satin Stainless Steel
606 - Satin Brass
606 - Satin Brass
605 - Bright Brass
605 - Bright Brass
625 - Bright Chrome
625 - Bright Chrome

Keying *

About this item

The MA series is one of Falcon toughest, most dependable locks. It delivers high performance at an affordable cost for your office, education, healthcare, multi-family and other commercial needs. The MA series products make retrofits easy with the ability to be rehanded in the field without opening the mortise case. With BHMA Grade 1 Security, BHMA Grade 1 Operational along with UL 3 hour ratings, the MA Series is designed to meet your needs.

Resources

Falcon MA541 Entry/Office Mortise Lock - ANSIF21

Latch bolt operated by knob/lever from either side. Dead bolt operated by key from outside or turn from inside.

MA Series Lock Features

Door thickness: Standard accommodates thickness of 1-3/8to 2-1/2".

Backset: 2-3/4 only.

Case: Cold formed steel, zinc dichromate plated, .090thick.

Hubs: Hardened steel.

Handing: Right hand is standard; left hand optional. Reversible in the field.

Cylinders: Solid brass cylinder and plug.Standard mortise cylinders are furnished as 5-or 6-pin as standard. 6 or 7-pin are available on interchangeable core cylinder.

Furnished with two nickel silver keys standard

Keyways: G keyway standard on standard cylinder. A Keyway standard on I/C cylinder.

Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.

Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4projection.

Dead Bolt: 1 throw, stainless steel with two 13/16diameter hardened steel, free-turning, saw-resistant roller.

Faceplates: (Armored Front) 1-1/4x 8brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.

Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.

Electrified Functions: Available in 12 or 24 VDC. ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.

UL: 3 hour A label.

Model: Falcon MA541, DG, Dane-Gala, QG, -Quantum-Gala, SG, Sutro-Gala, DN, Dane-Napa, QN, -Quantum-Napa, SN, Sutro-Napa, HG, Hana-Gala, HN, Hana-Napa, 626, Satin Chrome, 613, Oil Rubbed Bronze, 630, Satin Stainless Steel, MA541DG, MA541QG, MA541SG, MA541HG, MA541DN, MA541QN, MA541SN, MA541HN, MA541DG626, MA541DG613, MA541DG630 ,MA541QG626, MA541QG613, MA541QG630, MA541SG626, MA541SG613, MA541SG630, MA541DN626, MA541QN626, MA541SN626, MA541HG626, MA541HN626

Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function

Product code: MA541

In Stock

$325.85

$325.85

Picture of Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function
Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function

Product code: MA541

In Stock

$325.85

$325.85

Falcon MA541 Grade 1 Mortise Lock, Entry/Office Function

SKU: MA541

Related products

Picture of Schlage L9010 06 Mortise Passage Set, Field Reversible
Schlage L9010 06 Mortise Passage Set, Field Reversible

Product code: W561BD

In Stock
$1,034.00

$723.80

Picture of Schlage L9040 06 Mortise Privacy Set, Field Reversible
Schlage L9040 06 Mortise Privacy Set, Field Reversible

Product code: W561BD

In Stock
$1,191.00

$833.70

Picture of Schlage L9050 06 Mortise Office and Inner Entry Lock, Field Reversible
Schlage L9050 06 Mortise Office and Inner Entry Lock, Field Reversible

Product code: W561BD

In Stock
$1,451.00

$1,015.70

Picture of Schlage L9070 06 Mortise Classroom Lock, Field Reversible
Schlage L9070 06 Mortise Classroom Lock, Field Reversible

Product code: W561BD

In Stock
$1,481.00

$1,036.70

Picture of Schlage L9080 06 Mortise Storeroom Lock, Field Reversible
Schlage L9080 06 Mortise Storeroom Lock, Field Reversible

Product code: W561BD

In Stock
$1,325.00

$927.50

Picture of Schlage L9453 06 Mortise Entrance Lock, Field Reversible
Schlage L9453 06 Mortise Entrance Lock, Field Reversible

Product code: W561BD

In Stock
$1,369.00

$958.30

Picture of Schlage L9456 06 Mortise Corridor Lock, Field Reversible
Schlage L9456 06 Mortise Corridor Lock, Field Reversible

Product code: W561BD

In Stock
$1,369.00

$958.30

Picture of Schlage L9465 06 Mortise Closet/Storeroom Lock, Field Reversible
Schlage L9465 06 Mortise Closet/Storeroom Lock, Field Reversible

Product code: W561BD

In Stock
$1,369.00

$958.30

Picture of Schlage L9473 06 Mortise Dormitory/Bedroom Lock, Field Reversible
Schlage L9473 06 Mortise Dormitory/Bedroom Lock, Field Reversible

Product code: W561BD

In Stock
$1,369.00

$958.30

Picture of Schlage L9060 06 Mortise Apartment Entrance Lock, Field Reversible
Schlage L9060 06 Mortise Apartment Entrance Lock, Field Reversible

Product code: W561BD

In Stock
$1,457.00

$1,019.90

prev
prev

Related Brands

Picture for manufacturer Adams Rite
Picture for manufacturer Alarm Lock
Picture for manufacturer Arrow
Picture for manufacturer BEST
Picture for manufacturer Cal-Royal
prev
prev

Recently viewed products

AR4104
Adams Rite 4104-01 Mounting, Radius

Product code: W561BD

In Stock

1152 - Door Pull
Don-Jo 1152, 3/4" Offset Door Pulls - 12"

Product code: W561BD

In Stock

prev
prev

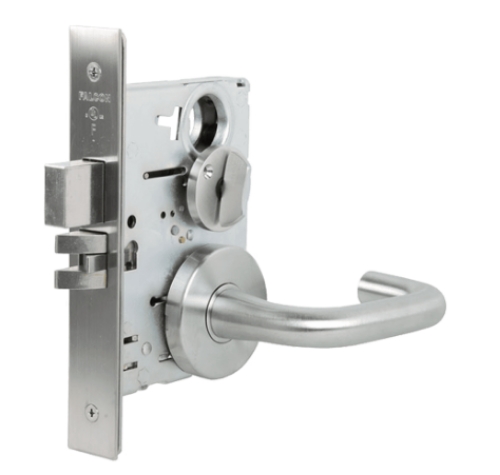

The MA series is one of Falcon toughest, most dependable locks. It delivers high performance at an affordable cost for your office, education, healthcare, multi

The MA series is one of Falcon toughest, most dependable locks. It delivers high performance at an affordable cost for your office, education, healthcare, multi
