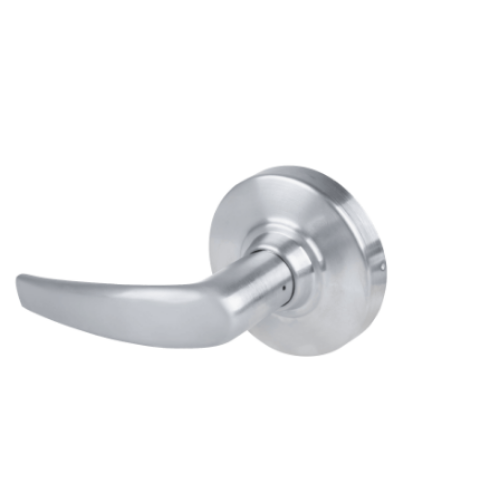

Schlage ALX170 ATH 626 Grade 2 Single dummy Lock, Athens Lever, Satin Chrome Finish

Schlage ALX170 ATH 626 Grade 2 Single dummy Lock, Athens Lever, Satin Chrome Finish

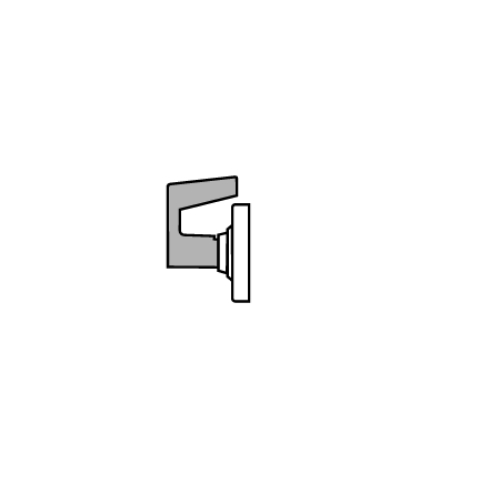

ALX170 -Single dummy lock

No key, rigid plain lever outside, no hardware inside, no latchbolt.

Use as door pull or matching inactive trim Notes.

Chassis:Material

- Zinc and steel, zinc dichromate plated for corrosion resistance. Door thickness- Standard:1 3/8" to 1 3/4" + .012 to accommodate wrap.

Trim:

Handing- Non-Handed. Levers -Athens Lever Roses- Wrought brass, bronze or zinc plated to match finish specification. Standard:3 7/16" diameter. Blank outside rose is 3 1/2" diameter. Finish-626 - Satin Chrome. Warranty:- 10-year limited.

Certifications:

ANSI/BHMA- Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability. ICC- Complies with ICC A117.1 for Accessible and Usable Buildings and Facilities. UL/CUL- All locks listed for A label single fire door 4' x 8' for 3-hours. Upgrade options available to achieve 4' x 10' 3-hour; pair doors 8' x 8' 3-hour; and 8' x 10' 90-minute. Letter F and UL symbol on latch front indicate listing. UL 437- Optional UL listed high-security cylinders available in Conventional format. CA Fire Code- All levers with a return to door of 1/2" (64 mm) or less comply (Boardwalk, Longitude, Omega, Rhodes, Saturn, Sparta, and Tubular). FL Building Code- ASTM E1886 and E1996 impact and cycle/Miami-Dade equivalent TAS 201 and TAS 202. ASTM E330 static load/Miami-Dade equivalent TAS 202. Federal- Meets FF-H-106C Series 161. ADA compliant- All lever designs meet Americans with Disabilities Act requirements. Model:

Schlage ALX170SAT626, Schlage ALX170SAT ALX107SAT626, ALX170SOME626ALX170, ALX170SAT, ALX170 SAT 626

 The Schlage ALX Seriesgives you the ability to use it as you would any other lock: ordered and delivered as a complete, configured product ready for installation.

However, in its new modular design, ALX Series offers you the flexibility to utilize the separate components of chassis, function and lever packaged kits to create a lock to meet your needs on demand.

So whether you are a locksmith wanting truck stock solutions that eliminate call backs, or a facility manager wanting to repurpose rooms and change lock functions without the expense of new hardware, ALX Series can work for you.

Schlage ALX Series mechanical specifications

ALX Series locks can be configured during installation to support any door handing. As a result, it is not necessary to specify handing during the ordering process.

Optional**Tactile warning for the visually impaired Tactile warning is a special texture that can be applied to either lever to alert the visually impaired to a potential hazard on the opposite side of the door (exit to street, a workshop or other hazardous area, etc). Tactile warning is specified by an 8 prefix on the lever design.
