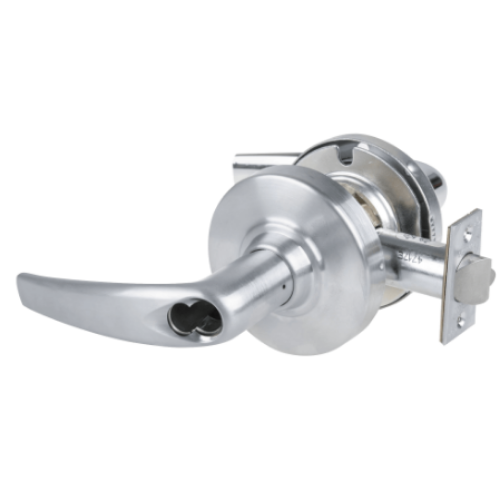

Schlage ALX80J ATH 626 Grade 2 Storeroom Cylindrical Lock, Non-handed, FSIC Less Core, Athens Lever, Satin Chrome Finish

Schlage ALX80J ATH Grade 2 Storeroom Cylindrical Lock,  Non-handed, FSIC Less Core, Athens Lever, Satin Chrome Finish

ALX80 - Storeroom lockANSI F86

Key cylinder outside; plain lever inside; deadlatch.

Outside lever always fixed.

Key can retract the latch .

Inside lever always free.

Chassis:Material

- Zinc and steel, zinc dichromate plated for corrosion resistance.

Door thickness- Standard:1 3/8" to 1 3/4" + .012 to accommodate wrap.

Handing- Non-Handed.

Levers -Athens Lever

Optional Tactile feature - Athens (8AT).

Roses- Wrought brass, bronze or zinc plated to match finish specification.

Standard - 3 7/16" diameter. Blank outside rose is 3 1/2" diameter.

Finishes- Satin Chrome Finish.

Backset Standard - 2 3/4",  Optional: 2 3/8, 3 3/4", 5".

Faceplate - Standard - 1 1/8" X 2 1/4" square corners,Optional:Multiple options with square or radius corners.

Bolt - Standard - 7/8" bolt diameter, up to 1"  housing diameter, 1/2" throw in Stainless Steel,Optional: 1" bolt diameter with 1/2" throw, 3/4" anti-friction fire latch.

Strike - Standard -ANSI Curved Lip: 1 1/4" x 4 7/8" x 1 3/16" Optional:T strike.

Cylinders - J - Full Size IC Less Core.

Warranty:- 10-year limited.

Certifications: ANSI/BHMA - Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability.

ICC- Complies with ICC A117.1 for Accessible and Usable Buildings and Facilities.

UL/CUL- All locks listed for A label single fire door 4' x 8' for 3-hours. Upgrade options available to achieve 4' x 10' 3-hour; pair doors 8' x 8' 3-hour; and 8' x 10' 90-minute. Letter F and UL symbol on latch front indicate listing.

UL 437- Optional UL listed high-security cylinders available in Conventional format. CA Fire Code - All levers with a return to door of 1/2" (64 mm) or less comply (Boardwalk, Longitude, Omega, Rhodes, Saturn, Sparta, and Tubular).

FL Building Code- ASTM E1886 and E1996 impact and cycle/Miami-Dade equivalent TAS 201 and TAS 202. ASTM E330 static load/Miami-Dade equivalent TAS 202.

Federal- Meets FF-H-106C Series 161.

ADA compliant- All lever designs meet Americans with Disabilities Act requirements. Model:

Schlage ALX80JATH626,  Schlage ALX80JRATH 626, ALX80JATH 626, ALX80JATH626 Schlage, ALX80J ,ALX80J ATH 626 626, 626, 605, 606, 612, 613, 625.ALX80 J, ALX80J, ALX80J626, ATH626

The Schlage ALX Seriesgives you the ability to use it as you would any other lock: ordered and delivered as a complete, configured product ready for installation.

However, in its new modular design, ALX Series offers you the flexibility to utilize the separate components of chassis, function and lever packaged kits to create a lock to meet your needs on demand.

So whether you are a locksmith wanting truck stock solutions that eliminate call backs, or a facility manager wanting to repurpose rooms and change lock functions without the expense of new hardware, ALX Series can work for you.

Schlage ALX Series mechanical specifications

ALX Series locks can be configured during installation to support any door handing. As a result, it is not necessary to specify handing during the ordering process.

Optional**Tactile warning for the visually impaired Tactile warning is a special texture that can be applied to either lever to alert the visually impaired to a potential hazard on the opposite side of the door (exit to street, a workshop or other hazardous area, etc). Tactile warning is specified by an 8 prefix on the lever design.
