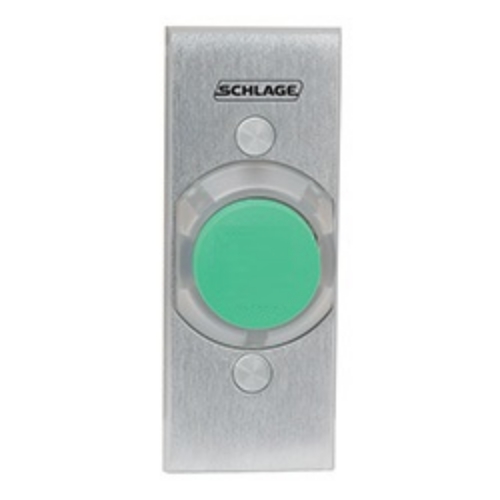

Schlage Electronics 621GR-NS, 1-1/4" Button, Green, Single Gang, Narrow Stile

Schlage Electronics 621GR-NS, 1-1/4" Button, Green, Single Gang, Narrow Stile

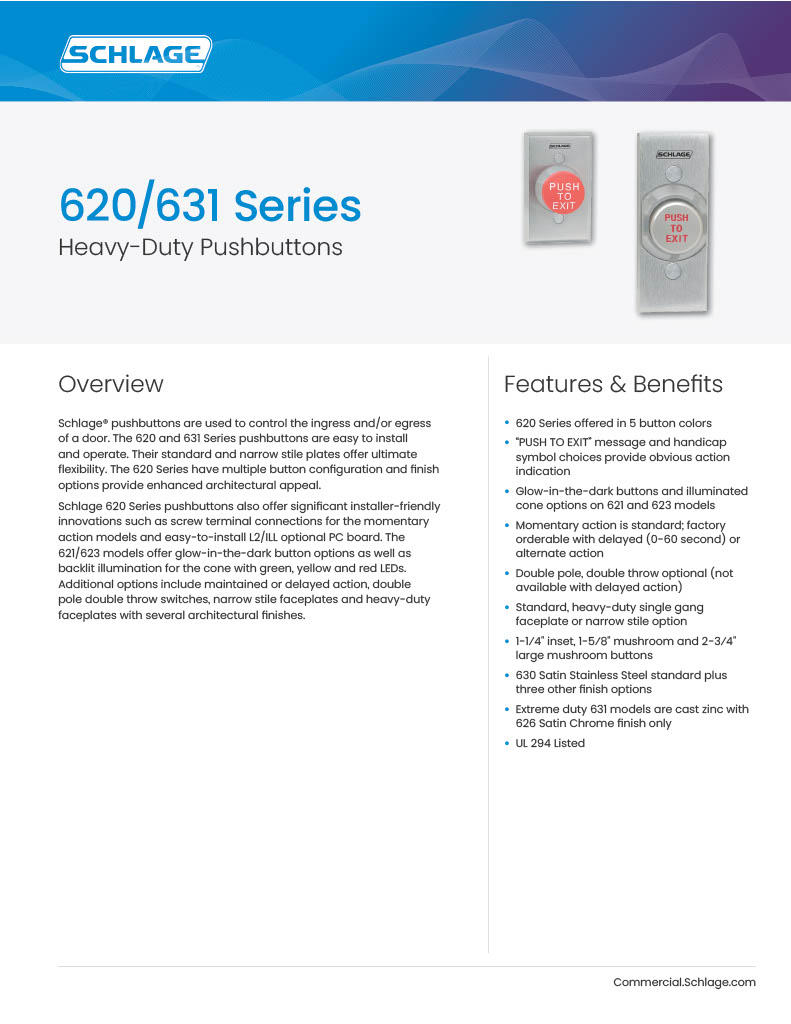

1-Page1-620-631

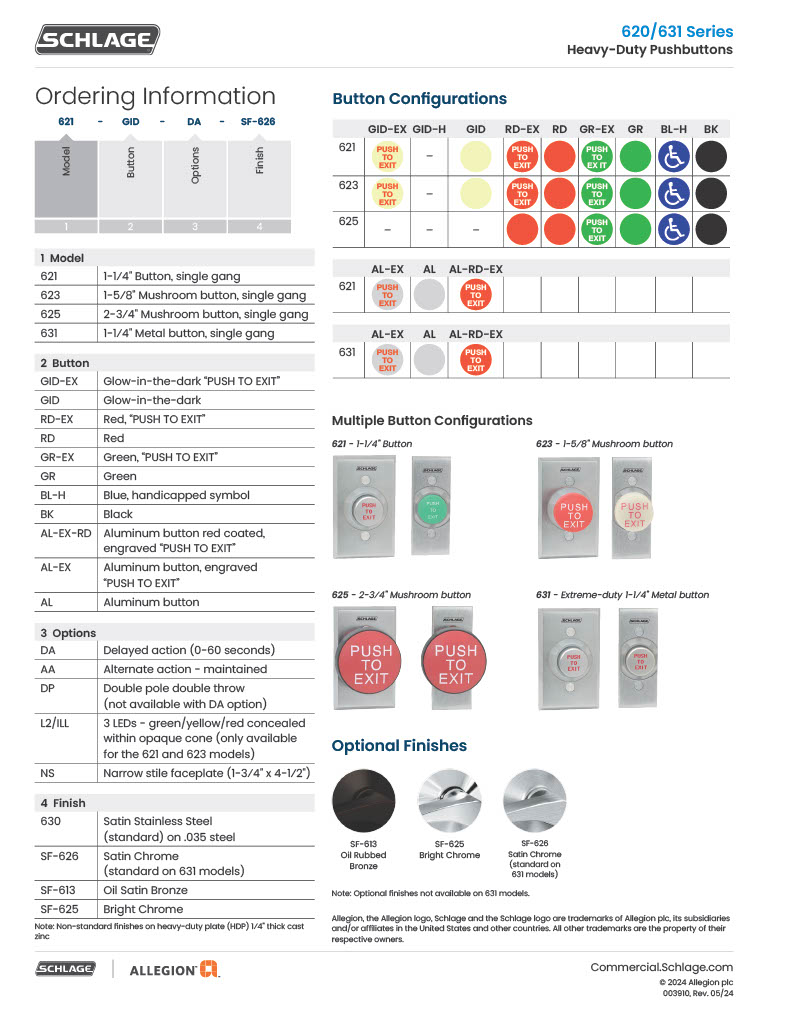

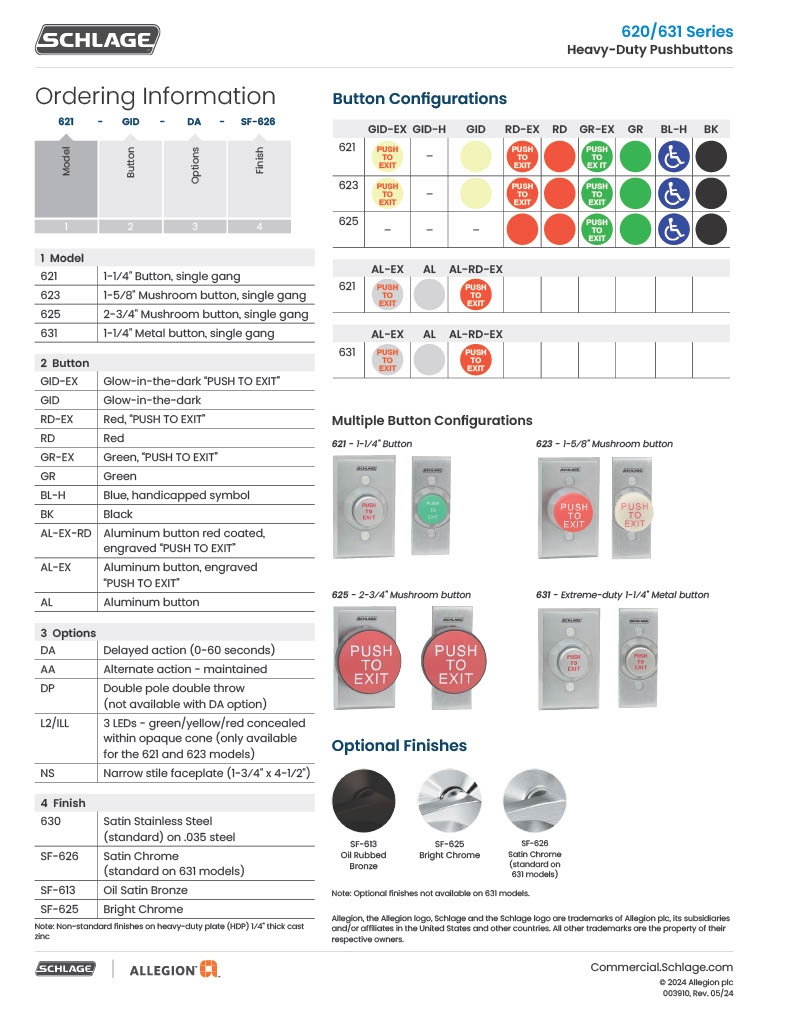

1-Page2-620-6321

Product Details

Schlage Electronics 621GR-NS, 1-1/4"*Button, Green, Single Gang, Narrow Stile*

Overview:

The 620 Series pushbuttons provide a wide selection of design options, finishes and messages. They are offered in narrow stile and standard width plates with multiple button configurations and finish options to provide enhanced architectural appeal.

Schlage 621 Series pushbuttons also feature significant installer-friendly innovations such as screw terminal connections for the momentary action models and an optional, easy-to-install L2/ILL PC board enabling backlit illumination for the cone with green, yellow and red LEDs. Additional options include maintained or delayed action, double pole double throw switches, narrow stile faceplates, and heavy-duty faceplates with several architectural finishes.

621- 1 1⁄4" Button, single gang GR:Green NS:Narrow Stile

Momentary action is standard; factory orderable with delayed action (0-60 second) or alternate action

Contact rating

3A @ 30 VDC for momentary
3A @ 30 VDC, form Z contacts for DA (delayed pneumatic action)
3A @ 30 VDC for AA (alternative action/maintained) L- ED rating is 12-24 VDC.025A@28VDC

Certifications: UL 294 Listed

Schlage Electronics 621GR-NS, 1-1/4" Button, Green, Single Gang, Narrow Stile

SKU: 621GR NS

In Stock

$172.90

About this item

Schlage 621 Series heavy-duty pushbuttons are commonly used to control ingress and/or egress of a door.

Resources

Schlage Electronics 621GR-NS, 1-1/4"*Button, Green, Single Gang, Narrow Stile*

Overview:

The 620 Series pushbuttons provide a wide selection of design options, finishes and messages. They are offered in narrow stile and standard width plates with multiple button configurations and finish options to provide enhanced architectural appeal.

Schlage 621 Series pushbuttons also feature significant installer-friendly innovations such as screw terminal connections for the momentary action models and an optional, easy-to-install L2/ILL PC board enabling backlit illumination for the cone with green, yellow and red LEDs. Additional options include maintained or delayed action, double pole double throw switches, narrow stile faceplates, and heavy-duty faceplates with several architectural finishes.

621- 1 1⁄4" Button, single gang GR:Green NS:Narrow Stile

Momentary action is standard; factory orderable with delayed action (0-60 second) or alternate action

Contact rating

3A @ 30 VDC for momentary
3A @ 30 VDC, form Z contacts for DA (delayed pneumatic action)
3A @ 30 VDC for AA (alternative action/maintained) L- ED rating is 12-24 VDC.025A@28VDC

Certifications: UL 294 Listed

621GRNS

Schlage Electronics 621GR-NS, 1-1/4" Button, Green, Single Gang, Narrow Stile

Product code: 621GR NS

In Stock

$172.90

$172.90

621GRNS

Schlage Electronics 621GR-NS, 1-1/4" Button, Green, Single Gang, Narrow Stile

Product code: 621GR NS

In Stock

$172.90

$172.90
