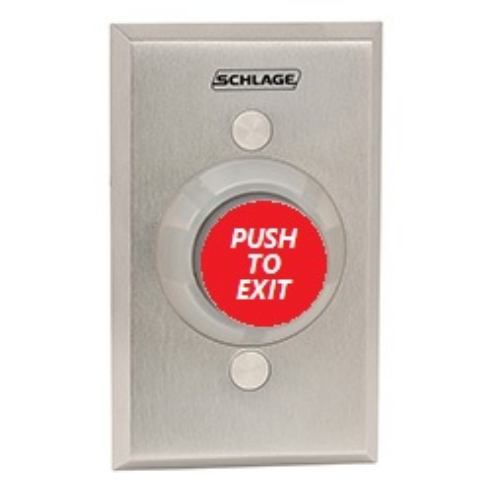

Schlage Electronics 631AL-EX, 1-1/4" Metal Button, Single Gang, Aluminum Button, Engraved "PUSH TO EXIT"

Schlage Electronics 631AL-EX 1-1/4" Metal Button, Single Gang, Aluminum Button, Engraved "PUSH TO EXIT"

Overview:

The 631 Series pushbuttons provide a wide selection of design options, finishes and messages. They are offered in narrow stile and standard width plates with multiple button configurations and finish options to provide enhanced architectural appeal.

Schlage 631 Series pushbuttons also feature significant installer-friendly innovations such as screw terminal connections for the momentary action models and an optional, easy-to-install L2/ILL PC board enabling backlit illumination for the cone with green, yellow and red LEDs. Additional options include maintained or delayed action, double pole double throw switches, narrow stile faceplates, and heavy-duty faceplates with several architectural finishes.

631:1-1/4" metal button, extreme-duty zinc faceplate, metal cone AL:Aluminum button EX:*engraved "PUSH TO EXIT"*

Momentary action is standard; factory orderable with delayed action (0-60 second) or alternate action

Contact rating:

• 3A @ 30 VDC for momentary
• 3A @ 30 VDC, form Z contacts for DA (delayed pneumatic action)
• 3A @ 30 VDC for AA (alternative action/maintained) L- ED rating is 12-24 VDC.025A@28VDC

Certifications: UL 294 Listed
