About this item

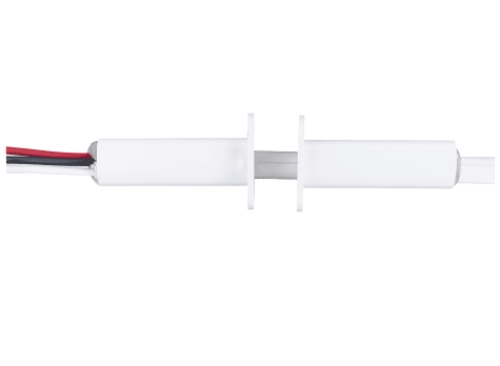

The Schlage Electronics 679-05 is a concealed SPDT magnetic door position switch, more commonly called a door contact in the security and access control industry, designed specifically for wood doors and wood frames. It has a very specific job: it checks to see if a door is open or closed and delivers that information to a control panel. That one function makes the 679-05 an important part of access control systems, intrusion detection systems, fire door monitoring, and building management systems where knowing the exact condition of a door at all times is part of the security architecture.
What separates this product from a basic single-throw switch is the SPDT configuration. SPDT stands for Single Pole Double Throw, meaning the 679-05 provides both a Normally Open (NO) and a Normally Closed (NC) output from a single switch body. That dual-output design gives security integrators and installers flexibility to wire the switch into virtually any access control panel, alarm panel, or monitoring system regardless of whether the system calls for a supervised NO or NC circuit. You do not need to stock two separate switch types for different panel requirements. One switch covers both.
The magnetic operation keeps the switch concealed within the door and frame. The magnet sits in the door body and the switch housing installs in the frame. When the door closes, the magnet aligns with the switch and triggers the circuit. When the door opens past the switch's sensing range, the magnetic field shifts and the circuit changes state, sending the status update to the connected panel. No physical contact, no mechanical wear, no moving parts visible on the door surface.
Technical Specifications
-
Switch type: SPDT (Single Pole Double Throw) magnetic, concealed
-
Application: Wood doors and wood frames
-
Current rating: 0.3 Amps (300mA) at 30 VDC
-
Switch body dimension: 3/4"
-
Finish: White (coordinates with wood door trim)
-
Handing: Non-handed
-
Certification: UL10C / CAN-ULC-S104 (UL listed for fire door applications)
-

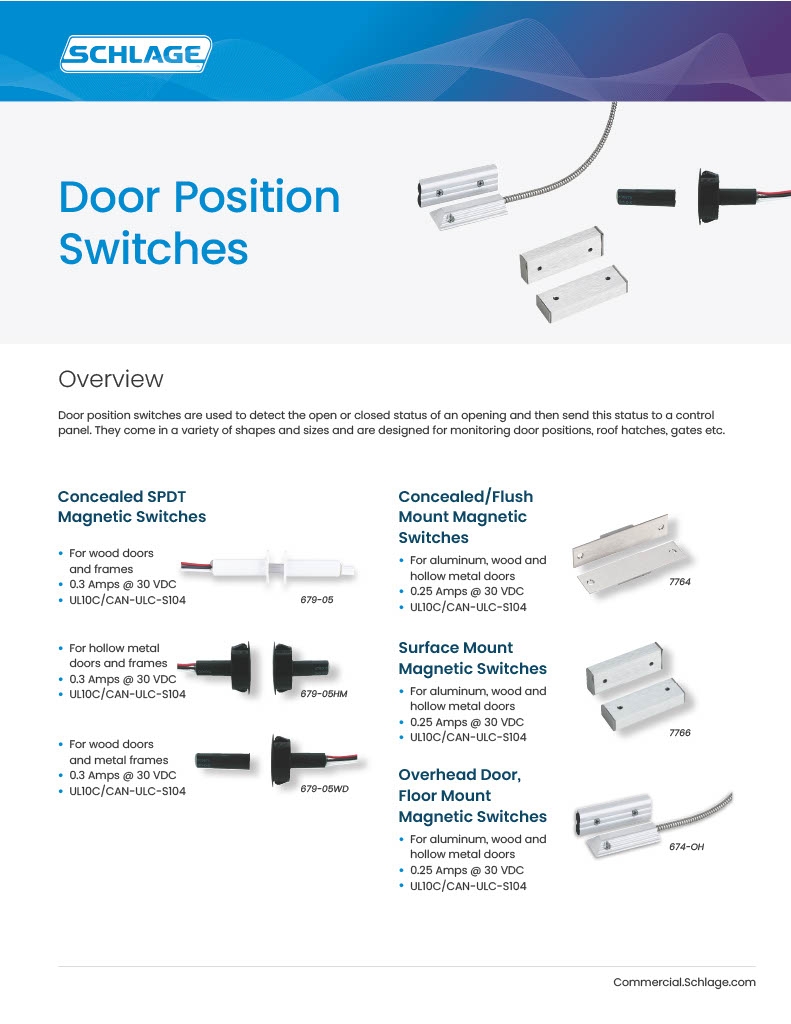

Part of the 674/679/7764/7766 Series Door Position Switch family
Choosing the Right 679 Series Variant
The 679 series covers three distinct door and frame combinations. Specifying the correct variant for the door construction prevents installation problems and ensures the concealed switch body fits the prepared opening properly.
The 679-05 (this product) is for wood doors installed in wood frames. The switch and magnet bodies are sized and finished for wood construction, and the white finish blends with painted wood trim.
The 679-05WD is for wood doors installed in metal frames. The door-side component is the same, but the frame-side magnet is adapted for metal frame installation.
The 679-05HM is for hollow metal doors installed in hollow metal frames. This variant uses components sized for the narrower stile widths common in hollow metal construction and is finished in black Lexan to match standard HM door finishes.
All three variants share the 0.3A / 30 VDC rating and the UL10C/CAN-ULC-S104 fire door listing.
Applications
The 679-05 door contact is regularly specified on fire doors requiring position monitoring, intrusion detection perimeter doors in commercial buildings, controlled access entry points in offices and healthcare facilities, exit doors tied to access control systems that require real-time egress reporting, and roof hatches and gates where magnetic concealed detection is preferable to exposed surface-mount contacts.
