About this item

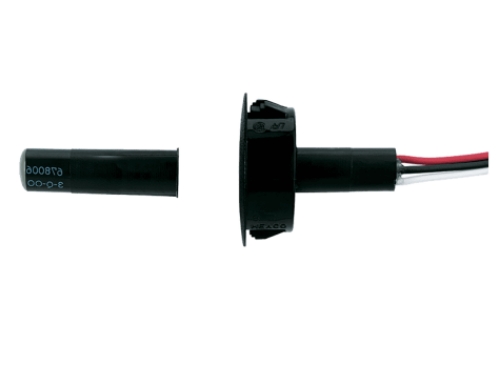

The Schlage Electronics 679-05WD is a hidden SPDT magnetic door position switch from the Schlage Electronics 679 Series. It was made just for wood doors with metal frames. It detects the open or closed status of the door opening and relays that status to an access control panel, alarm system, or building management system. 0.3A at 30VDC. UL 10C and CAN/ULC-S104 listed. Black Lexan housing. American Locksets is an authorized Allegion Schlage Electronics dealer stocking the 679-05WD with same-day shipping and free shipping on orders over $300.
Schlage 679-05WD Door Position Switch: What It Does and How It Works
A door position switch detects whether a door is open or closed and outputs that status as an electrical signal to a connected system. The 679-05WD uses magnetic detection: one component mounts in the door edge and contains the SPDT switch mechanism, while the corresponding magnetic component mounts in the door frame. When the door is closed, the magnetic field from the frame component holds the switch in one state. When the door opens and the magnet moves away, the switch transitions to the other state. That state change generates an output signal that a control panel or alarm system interprets as door open or door closed.
The Schlage Electronics 679-05WD is a hidden SPDT magnetic door position switch from the Schlage Electronics 679 Series. It was made just for wood doors with metal frames. It detects the open or closed status of the door opening and relays that status to an access control panel, alarm system, or building management system. 0.3A at 30VDC. UL 10C and CAN/ULC-S104 listed. Black Lexan housing. American Locksets is an authorized Allegion Schlage Electronics dealer stocking the 679-05WD with same-day shipping and free shipping on orders over $300.
Schlage 679-05WD Door Position Switch: What It Does and How It Works
A door position switch detects whether a door is open or closed and outputs that status as an electrical signal to a connected system. The 679-05WD uses magnetic detection: one component mounts in the door edge and contains the SPDT switch mechanism, while the corresponding magnetic component mounts in the door frame. When the door is closed, the magnetic field from the frame component holds the switch in one state. When the door opens and the magnet moves away, the switch transitions to the other state. That state change generates an output signal that a control panel or alarm system interprets as door open or door closed.
The switch has three terminals: common, normally open (NO), and normally closed (NC). This allows the installation wire to be used for either a door-open alarm (a circuit that is normally closed and opens when the door opens) or a door-closed signal (a circuit that is normally open and shuts when the door is closed), depending on what the access control panel or alarm system needs.
The concealed installation mounts both components inside the door edge and frame, completely out of view from either side of the door. No visible hardware, no exposed switch body on the door face.
679-05WD vs. 679-05 and 679-05HM: Choosing the Correct Version

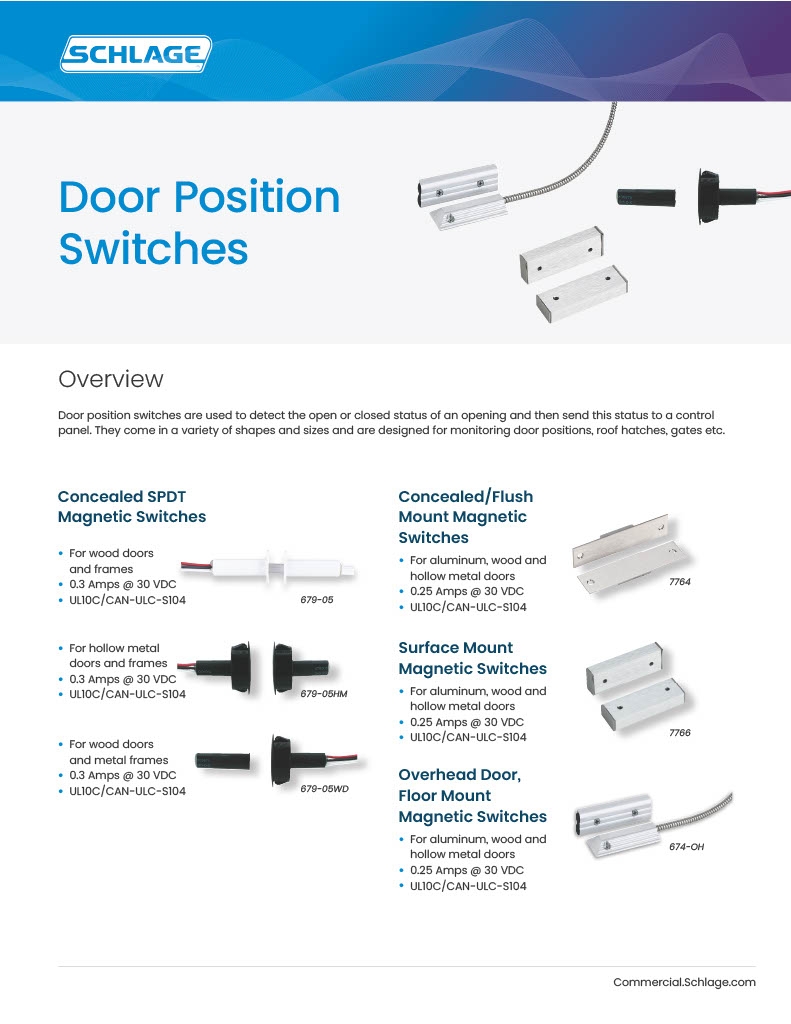

The 679 Series comes in three versions matched to different door and frame material combinations. The 679-05 is for wood doors and wood frames. The 679-05WD is for wood doors with metal frames, which is the most common combination in commercial construction where hollow metal frames are used with solid wood or wood composite doors. The 679-05HM is for hollow metal doors and hollow metal frames. Installing the wrong version for the door and frame material combination will result in misalignment, unreliable switching, or installation that does not fit the door edge mortise geometry. Confirm the door material and frame material before ordering.
Schlage 679-05WD Specifications
-
SKU: 679-05WD
-
Series: Schlage Electronics 679 Series Door Position Switches
-
Type: Concealed SPDT Magnetic Door Position Switch
-
Application: Wood doors with metal frames
-
Contact Type: SPDT (Single Pole Double Throw)
-
Operating Voltage: 30VDC
-
Current: 0.3 Amps (300mA) maximum
-
Dimension: 3/4 inch
-
Housing/Finish: Black Lexan housing
-
Country of Origin: Mexico
-
Standards: UL 10C, CAN/ULC-S104
-
Manufacturer: Schlage Electronics (Allegion)
Common Applications for Door Position Switches
Door position switches are specified wherever an access control system, alarm system, or building management system needs real-time door status information. Schools, hospitals, government buildings, and commercial facilities use them on perimeter egress doors, stairwell doors, secured utility rooms, and sensitive access areas to monitor whether doors have been propped open, forced, or left ajar outside of authorized access events. Integration with the access control panel allows for automated alerts, audit trail logging by door status, or timed door-open alarms that prevent propped-door security gaps.
