Schlage Electronics CTE-MTB11-485-B CTE ENGAGE Single Door Controller with Mobile Enabled Multi-Tech Mullion Reader Kit

Schlage Electronics CTE-MTB11-485-B, CTE ENGAGE Single Door Controller with Mobile Enabled Multi-Tech Mullion Reader Kit, Direct RS-485 Connection, 125 kHz Proximity Card, 13.56 MHz Smart Card, FIPS 201-2 Compliant, Black

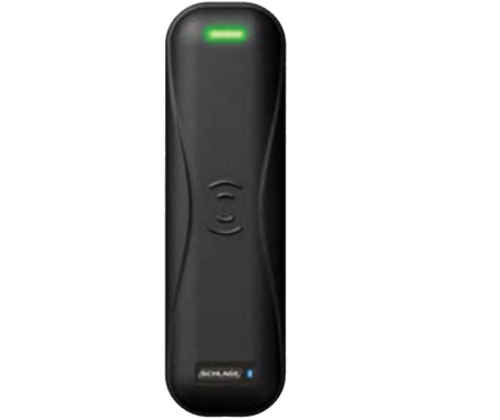

CTE-MTB11: CTE with mobile enabled multi-technology mullion reader kit

Features and benefitsEnables around the door solution with ENGAGE functionalityBuilt-in Bluetooth and Wi-FiComplete with Schlage MTB11 or MTB15 reader (Required reader interface RS-485)No-Tour capableFlexible connectivity options: manage with ENGAGE web and mobile apps or with one of our PACS providersInputs: door position (DPS), request to exit (REX), request to enter (REN), remote release (REL)Outputs: lock relay , alarm relay, auxiliary (Aux) relayInput Power: 12 or 24 VDC or Power over Ethernet (PoE/PoE+)Provides DC output power and dry control contacts

CTE single door controller specifications

UsersUp to 5,000AuditsUp to 2,000SchedulesUp to 16HolidaysUp to 32Time zonesUp to 16Communication StandardsBluetooth low energy (version 4.2)2.4 GHz Wi-Fi (IEEE 802.11b/g/n)WPA2, WPA, WEP, 802.1x (PEAP)Transport Layer Security (TLS) version 1.2Advanced Encryption Standard (AES), 256-bitGateway communication rangeUp to 30' in typical building environments. A detailed site survey is recommended.Reference ENGAGE Gateway Data Sheet for additional details.Connectivity optionsMobile (send updates at door)Wi-Fi access point (automatic daily updates)ENGAGE Gateway, IP to host (Networked wireless reader interface)No-TourPower Inputs12 or 24 VDC at 3 Amps input for powered outputs to get Max 2 Amp output on relays, 0.5 Amp minimum input when using dry contacts.PoE/PoE+ (IEEE 802.3af/at)Powered Outputs: Locking mechanism, Alarm, Aux12 VDC Input: 2A @ 12 VDC Max (combined output across powered outputs)24 VDC Input: 2A @ 24 VDC Max (combined output across powered outputs)PoE Input: 0.5A @ 12 VDC Max (combined output across powered outputs)PoE Input: 1.5A @ 12 VDC Max (combined output across powered outputs)Dry Outputs: Locking mechanism, Alarm, Aux*Reader Interface0.3A @ 12 VDC Max (up to 500 !.)12 or 24 VDC Input: 12V @ 0.3A Max OutputPOE or POE Input: 12V Locking mechanism: 2A @ 30VDC Max 0.3A Max OutputAux: 2A @ 30VDC MaxAlarm: 2A @ 30VDC MaxReader (Schlage MTBXX) (Required to utilize -485 interface)Schlage MTB11 or MTB15 ReaderSignal InputsRequest-to-enter (REN)Request-to-exit (REX)Remote Release (REL) - wiredDoor position switch (DPS)Tamper (TAMP)Operating temperature (indoor)-31 F (-35 C) to 151 F (66 C)Operating humidity0 - 100% non-condensingCertificationsUL 294 Indoor, FCC Part 15, NEMA Enclosure Indoor (Type 1, 4, and 4X), ULC S319 Indoor, RoHSDimensions*2.96" x 5.89" x 7.86"
