Schlage Electronics PIM400-TD2 Panel Interface Board, Supports 2 Doors

PIM400-TD2
1-page67-allegioncat
1-page68-allegioncat
PIM400-TD2
1-page67-allegioncat
1-page68-allegioncat
naxt
prev

Product Details

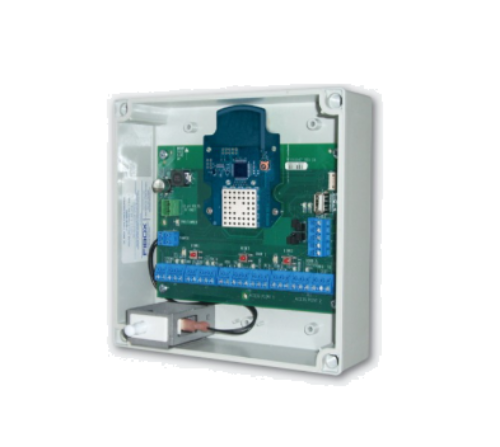

Schlage Electronics PIM400-TD2 Panel Interface Board, Supports 2 Doors

Features and benefits:

  • 900 MHz spread spectrum RF technology for long range, reliable communications.

  • Supports up to two AD Series wireless devices.

  • Automatic linking to remote wireless access points with 10 channel frequencies to select from enables easy commissioning.

  • AES-128 bit encrypted spread spectrum transmissions.

  • 13 visual indicators to quickly verify operation and troubleshoot.

  • Flash memory for easy so"ware upgrades.

  • Certifications: NEMA 1, 4, 4X, 6; UL 294;  FCC Part 15; RoHS; Industry Canada (IC).

PIM400-TD2 specifications

Frequency range:902-928 MHz.

Modulation:900 MHz spread spectrum, direct sequence, 10 channels.

RF interference avoidance:Optional dynamic channel switching.

Transmission/encryption:AES-128 bit key (optional).

Credential verification time:1 second.

Communication range: Up to 200 " (61 m) with obstructions. Up to 1000 " (305 m) clear line of sight. Up to 2000 " (609 m) line of sight with high gain antenna on PIM400. Up to 4000 " (1219 m) line of sight with high gain antennas on PIM400 and WRI400.

Visual/audible communications:13 LEDs for status indicators.

System interface:Wiegand (data1/data0) or magnetic stripe (Clock & Data).

Power supply:12 VDC or 24 VDC.

Voltage range:9.5 VDC to 26 VDC.

Max current requirement:Up to 250 mA.

Operating temperature:-31  to 151 F (-35  to 66 C).

Operating humidity:  0 - 100% non-condensing.

Dimensions:(H x W x D)7.1" x 7.1" x 3.0"  (18.0 cm x 18.0 cm x 7.6 cm.

Weight:1.25 lb (.56 kg).

Cable specifications: DC power Input: 18AWG, 2 conductor (Belden 8760 or equivalent) up to 1000 " (303 m). PIM400-TD2 to ACP: 22AWG, 8 conductor shielded (Alpha 1298C or equivalent) up to 500 " (152m).

Data rate:RF: 40 kbps.

Certifications:NEMA 1, 4, 4X, 6; UL 294; FCC Part 15; RoHS; Industry Canada (IC).



Schlage PIM400-TD2,  PIM400-TD2Schlage,  PIM400-TD2,Schlage PIM400TD2,  PIM400TD2Schlage,  PIM400TD2,

Schlage Electronics PIM400-TD2 Panel Interface Board, Supports 2 Doors

SKU: PIM400-TD2

In Stock
Picture for manufacturer Schlage
icon Chat

$877.59

About this item

The PIM400-TD2 seamlessly integrates to virtually any access control panel and their reader interface modules via Wiegand or Clock & Data protocols. Each PIM400-TD2 supports up to two wireless access devices such as AD-400/401 Series locks.
