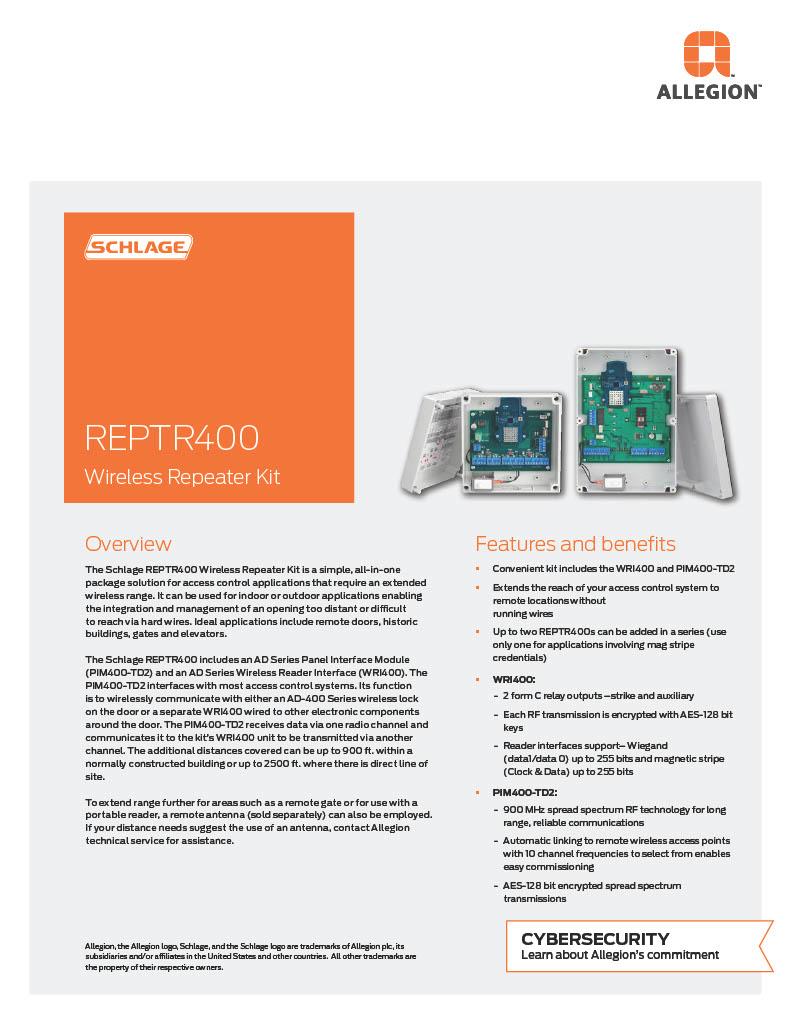

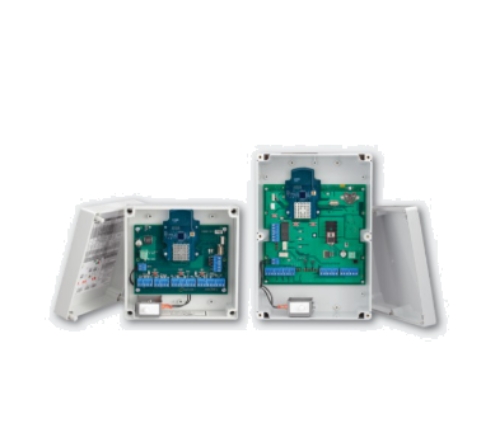

Schlage Electronics REPTR400 LSE Wireless Repeater Kit

REPT
1-Page85-Allegioncat
1-Page86-AllegionCat
REPT
1-Page85-Allegioncat
1-Page86-AllegionCat
naxt
prev

Product Details

PIM400-TD2 specificationsPIM400-TD2 specificationsSchlage Electronics REPTR400 LSE Wireless Repeater Kit

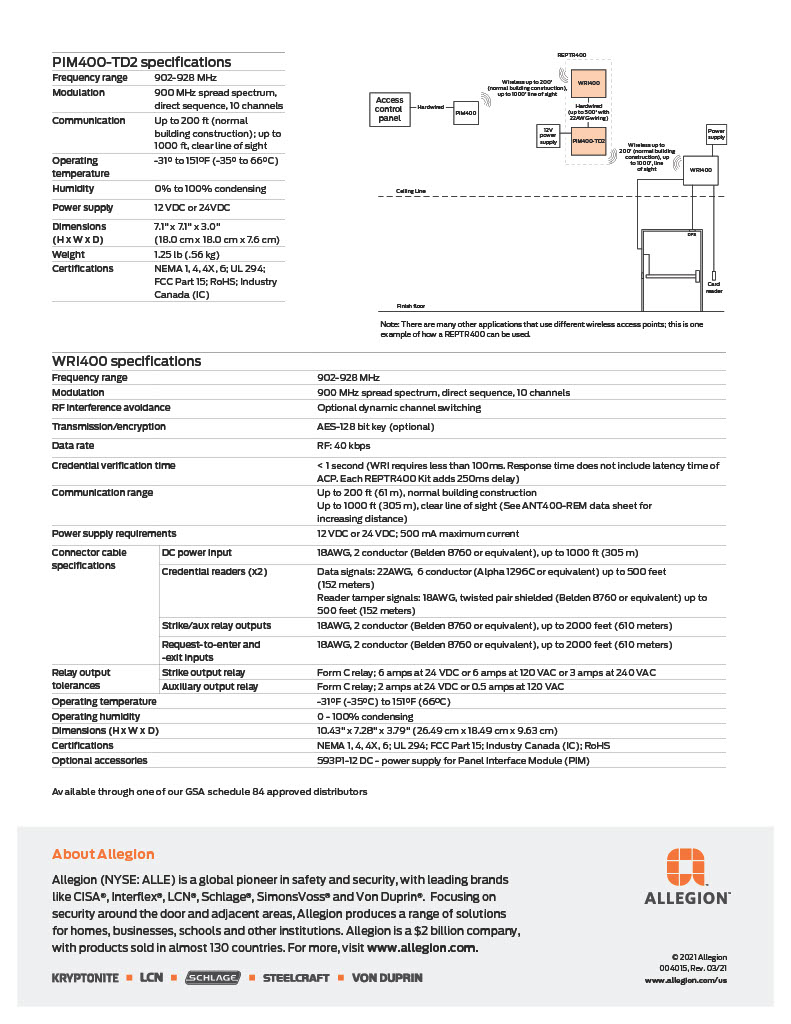

PIM400-TD2 specifications

Requency range:902-928 MHz.

Modulation:900 MHz spread spectrum, direct sequence, 10 channels.

RF interference avoidance:Optional dynamic channel switching.

Transmission/encryption:AES-128 bit key (optional).

Credential verification time:1 second.

Communication range: Up to 200 " (61 m) with obstructions. Up to 1000 " (305 m) clear line of sight. Up to 2000 " (609 m) line of sight with high gain antenna on PIM400. Up to 4000 " (1219 m) line of sight with high gain antennas on PIM400 and WRI400.

Visual/audible communications:13 LEDs for status indicators.

System interface:Wiegand (data1/data0) or magnetic stripe (Clock & Data).

Power supply:12 VDC or 24 VDC.

Voltage range:9.5 VDC to 26 VDC.

Max current requirement:Up to 250 mA.

Operating temperature:-31  to 151 F (-35  to 66 C).

Operating humidity:  0 - 100% non-condensing.

Dimensions:(H x W x D)7.1" x 7.1" x 3.0"  (18.0 cm x 18.0 cm x 7.6 cm.

Weight:1.25 lb (.56 kg).

Cable specifications: DC power Input: 18AWG, 2 conductor (Belden 8760 or equivalent) up to 1000 " (303 m). PIM400-TD2 to ACP: 22AWG, 8 conductor shielded (Alpha 1298C or equivalent) up to 500 " (152m).

Data rate:RF: 40 kbps.

Certifications:NEMA 1, 4, 4X, 6; UL 294; FCC Part 15; RoHS; Industry Canada (IC).

WRI400 specifications

Visual LED indications -WRI400 cover is monitored by a tamper switch.

Encryption: - Each RF transmission is encrypted with AES-128 bit keys Reader interfaces support:       - Wiegand (data1/data0) up to 255 bits.    - Magnetic stripe (Clock & Data) up to  255 bits

Form C relay outputs: -    Strike relay. -    Auxiliary output relay. Signal inputs:      - Request-to-enter.    -  Request-to-exit.    - Door position switch.    - Reader tamper 1.    - Reader tamper 2. Certification: NEMA 1, 4, 4X, 6; UL 294,  FCC Part 15; Industry Canada (IC), RoHS.

Schlage Electronics REPTR400 LSE Wireless Repeater Kit

SKU: REPT

In Stock
icon Chat
Picture for manufacturer Schlage

$1,987.92

$3,012.00

You saved $1,024.08
