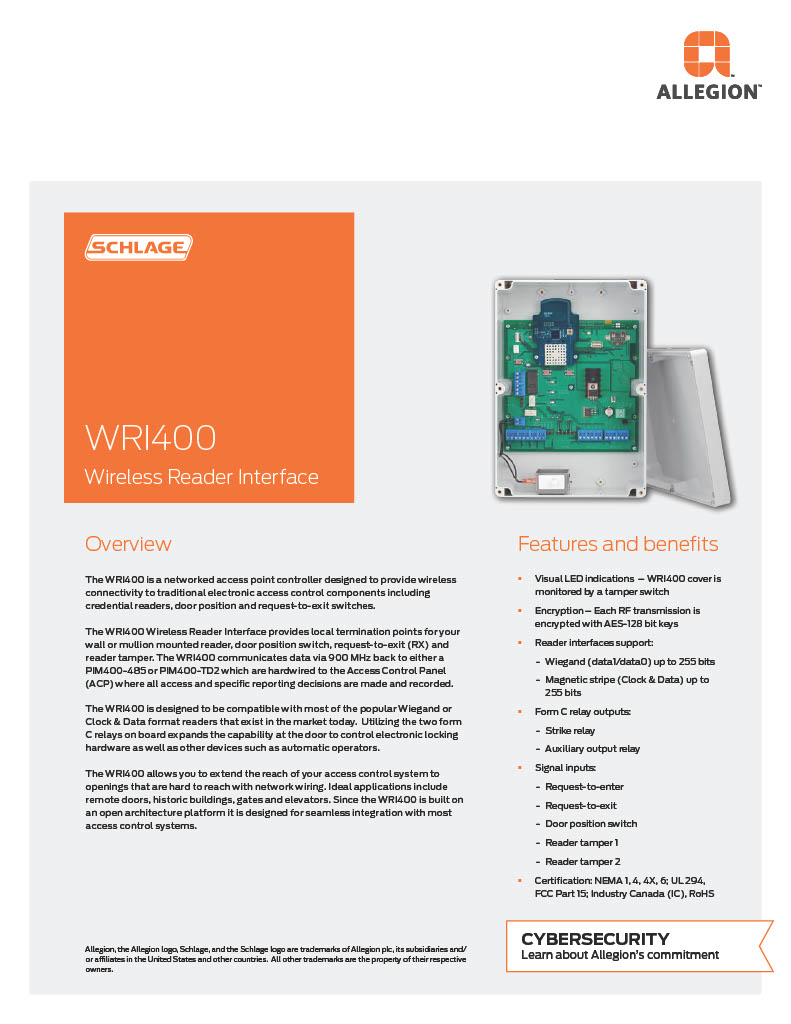

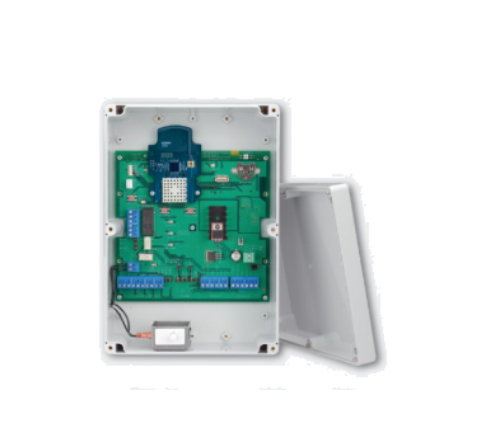

Schlage Electronics WRI400 Outdoor Wireless Reader Interface

OverviewThe WRI400 is a networked access point controller designed to provide wireless connectivity to traditional electronic access control components including credential readers, door position and request-to-exit switches.The WRI400 Wireless Reader Interface provides local termination points for your wall or mullion mounted reader, door position switch, request-to-exit (RX) and reader tamper.

The WRI400 communicates data via 900 MHz back to either a PIM400-485 or PIM400-TD2 which are hardwired to the Access Control Panel (ACP) where all acce s s and specific repor ting decisions are made and recorded.

The WRI400 is designed to be compatible with most of the popular Wiegand or  Clock & Data format readers that exist in the market today.  Utilizing the two form C relays on board expands the capability at the door to control electronic locking hardware as well as other devices such as automatic operators.

The WRI400 allows you to extend the reach of your access control system to openings that are hard to reach with network wiring. Ideal applications include remote doors, historic buildings, gates and elevators. Since the WRI400 is built on an open architecture platform it is designed for seamless integration with most access control systems.

Features and benefits

Visual LED indications -WRI400 cover is monitored by a tamper switch.

Encryption: - Each RF transmission is encrypted with AES-128 bit keys Reader interfaces support:       - Wiegand (data1/data0) up to 255 bits.    - Magnetic stripe (Clock & Data) up to  255 bits

Form C relay outputs: -    Strike relay. -    Auxiliary output relay. Signal inputs:      - Request-to-enter.    -  Request-to-exit.    - Door position switch.    - Reader tamper 1.    - Reader tamper 2. Certification: NEMA 1, 4, 4X, 6; UL 294,  FCC Part 15; Industry Canada (IC), RoHS.
