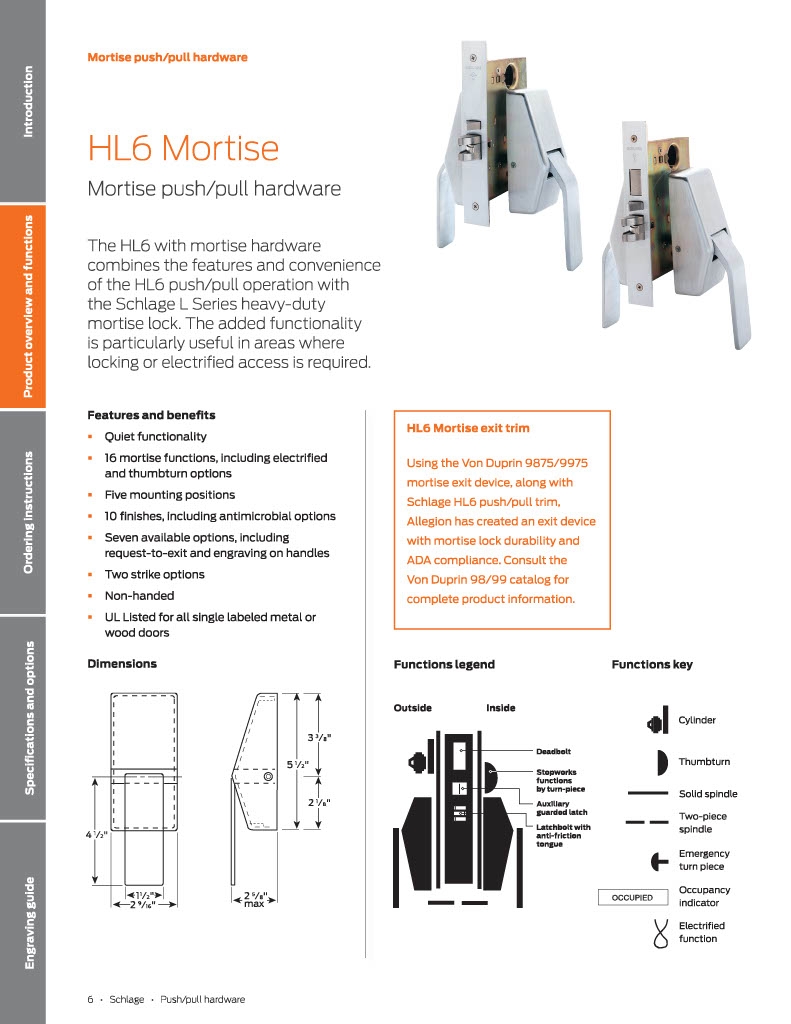

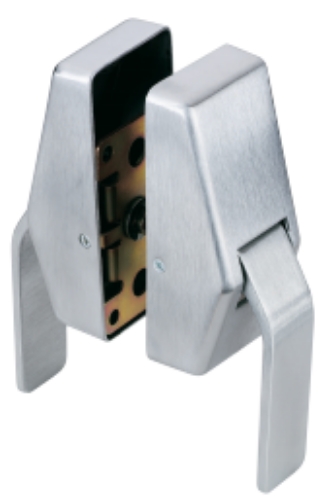

Schlage HL6 9000RK Push / Pull Latch (Hospital Latch) - Mortise Lock Retrofit Kit

The Schlage HL6 9000RK is a commercial push/pull hospital latch sold as a complete mortise lock retrofit kit. It converts an existing Schlage L-Series mortise lock to hands-free push/pull operation without replacing the lock body, which makes it the lowest-cost path to ADA-compliant hands-free entry for hospital patient room doors, healthcare corridor doors, behavioral health units, kitchen and food prep doors, laboratory doors, cleanroom entries, and any commercial opening where users need to operate the door with elbows, hips, or carts when hands are full or contaminated. UL Listed for all single labeled metal or wood doors including single fire doors. Non-handed (works on left-hand or right-hand doors). SKU HL69000RK. In stock under Push-Pull Latch Sets within Commercial Locks.

Why It's Called a Hospital Latch

"Hospital latch" is the trade nickname for any push/pull paddle that opens a door without a knob, lever, or grip. The name originated in mid-century hospital design where nurses needed to operate patient room doors with hips, elbows, knees, or carts when hands were full of trays, charts, or sterile equipment. Today the same hardware is specified anywhere hands-free entry is required: hospitals (patient rooms, ICU, OR corridors), nursing homes, dental and medical offices, commercial kitchens (where hands are food-contaminated), behavioral health and detention units, laboratories, cleanrooms, and ADA-priority openings in offices, schools, and government buildings. The Schlage HL6 is the highest-volume push/pull hospital latch in the US commercial spec market.

What Makes the 9000RK a Retrofit Kit

The "9000RK" designation is what separates this from a new-build push/pull set. The kit ships with all hardware needed to convert an existing Schlage mortise lock installation to push/pull operation without removing the lock body from the door. If a Schlage L-Series mortise lock is already installed, the kit retrofits onto it with minor door modifications. The crew that installs this is typically a facility maintenance team or contracted locksmith, not a finish carpenter. Spec writers reach for the 9000RK on retrofit projects (hospital wing renovations, ADA compliance upgrades, hands-free conversions during COVID-era touch reduction projects) where pulling and replacing entire mortise locks would blow the budget. For Schlage 9082EL and 9082EU electrified mortise applications, contact American Locksets at 877-471-4870 for pricing and availability.

Five Mounting Positions

The HL6 paddle assembly mounts in any of five positions on the door: handles down, handles up, one handle up and one handle down on either push or pull side, or handles pointing away from the latch. That flexibility matters in healthcare retrofits because existing door cutouts, pull bar locations, and code-required clearances vary across decades of hospital construction. The installer picks the orientation that fits the existing door prep without re-cutting the door face.

Specifications

Function: push/pull hands-free operation via short-throw paddle action. Lock retrofit: converts existing Schlage L-Series mortise lock to push/pull operation. Door thickness: up to 1-3/4". Door types: commercial and institutional metal or wood doors, including single fire doors. Compliance: UL Listed for all single labeled metal or wood doors. Handing: non-handed, no left-hand or right-hand specification needed. Mounting positions: 5 (handles down, handles up, mixed orientation push/pull side, handles away from latch). Fire rating: UL listed for single labeled fire doors.

Finish Options

US26D Satin Chrome (standard), US32D Satin Stainless Steel, US4 Satin Brass, US3 Polished Brass, US10B Oil Rubbed Bronze. Most healthcare and behavioral health specifications are US26D or US32D for cleanability and chemical resistance. Hospitality and senior living specifications more often select US10B or US4 for warmer finish.

Where to Specify the HL6 9000RK

Hospital patient room doors, ICU and OR corridor doors, emergency department exam room doors, nursing home and assisted living unit doors, behavioral health unit doors (where ligature-resistance is not required; for ligature-resistant applications spec dedicated hardware), commercial kitchen and food prep doors, dental and medical office exam rooms, veterinary clinic doors, laboratory entries, cleanroom entries, ADA-priority offices and conference rooms, school nurse and administrative offices, and any retrofit project converting existing Schlage mortise lock installations to hands-free operation under tight budget constraints.

Where This Sits in the Site Catalog

The HL6 9000RK lives under Push-Pull Latch Sets in Commercial Locks. For new-construction Schlage mortise lock platforms that pair with HL paddles, see Schlage L Series and Schlage LE Series. For other commercial mortise platforms in the same retrofit-friendly category, see Corbin Russwin ML2000 Series and BEST 45H Series.
