Schlage Locknetics GF3000SM Electromagnetic Shear Lock - Surface Series

Schlage Locknetics GF3000SM Electromagnetic Shear Lock - Surface Series *(outswinging doors) Adjustable from top edge of armature.*

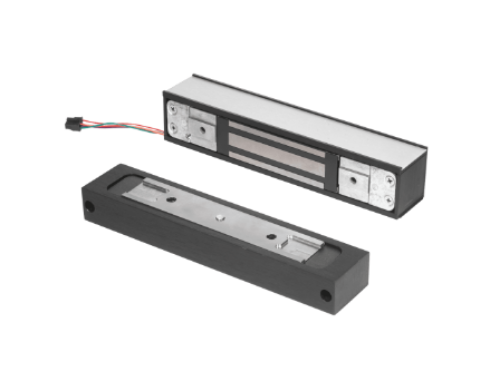

GF3000SM (Surface Mounted): Surface mounted shear lock intended for use on outswinging doors. Surface mounted magnet mounts under header and surface mounted armature assembly mounts into door just under magnet assembly. Air gap adjustment is from top of door.

Features and benefits

3000 lb. hold force rating

Automatic voltage selection (AVS) 12/24 VDC (filtered)

Built-in automatic relock switch (ARS)

Adjustable time delay on relock, 0-30 seconds from face of magnet

Low temperature operation

Microprocessor controlled

ANSI/BHMA 156.23, UL 10C, cUL, and CSFM certifications

Limited lifetime warranty on magnetic coil

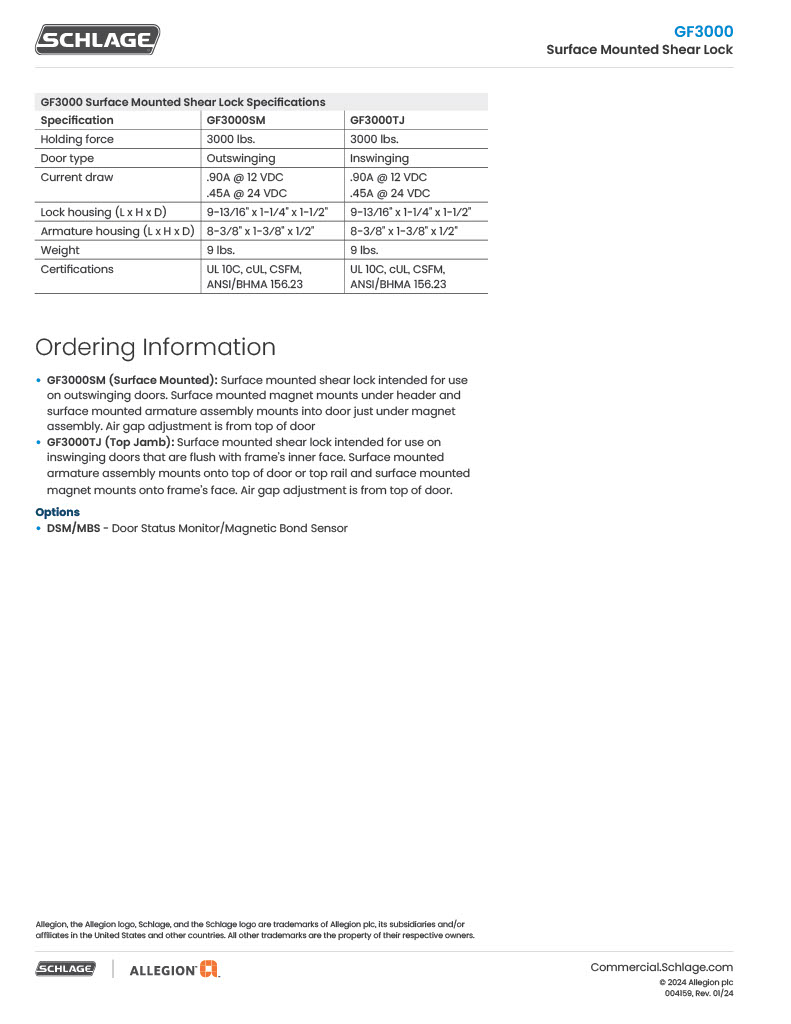

Specifications

Holding force: 3000 lbs

Input voltage: 12/24 VDC

Current draw: .90A @ 12VDC .45A @ 24VDC

Lock housing Dimensions: (L x H x D) 9-13⁄16" x 1-7⁄8" x 2"

Lock Armature: 9-13⁄16" x 1-1⁄4" x 2"

Certifications: UL 10C, cUL, CSFM, ANSI/BHMA 156.23
