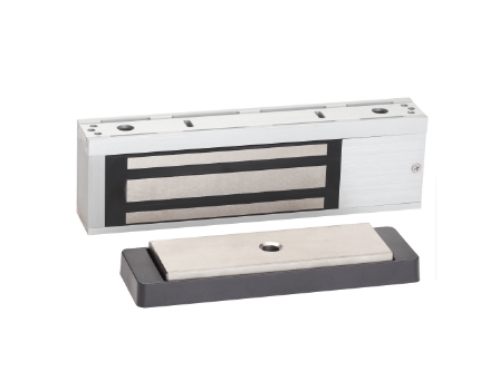

Schlage Locknetics M450 Electromagnetic Single Lock - 1000 Lb. Hold

Schlage M450 Electromagnetic Single Lock -  1000 Lb. Hold - Automatic Voltage Selection

All M400 Series electromagnetic locks are symmetrical with field-selectable handing, allowing optimum placement of the magnet, no matter the application.

Designed to provide automatic voltage sensing for 12 and 24 volts along with polarity protection to make wiring less complex. M450 models are tested and certified to meet or exceed UL 1034 and BHMA 1000 lb hold force requirements.

Features and benefits

1000 lb. hold force rating for traffic control applications

Automatic voltage selection (AVS)

Symmetrical design with field-selectable handing for optimum placement

Armature mount pivot feature compensates for slight opening imperfections

Optional mounting kits available for top jamb mount, double door and Herculite glass doors

Aluminum housing in 628 satin finish

ANSI/BHMA 156.23 Grade 1, UL 1034, UL 10C, cUL, CFSM certifications

Limited lifetime warranty on magnetic coil assembly

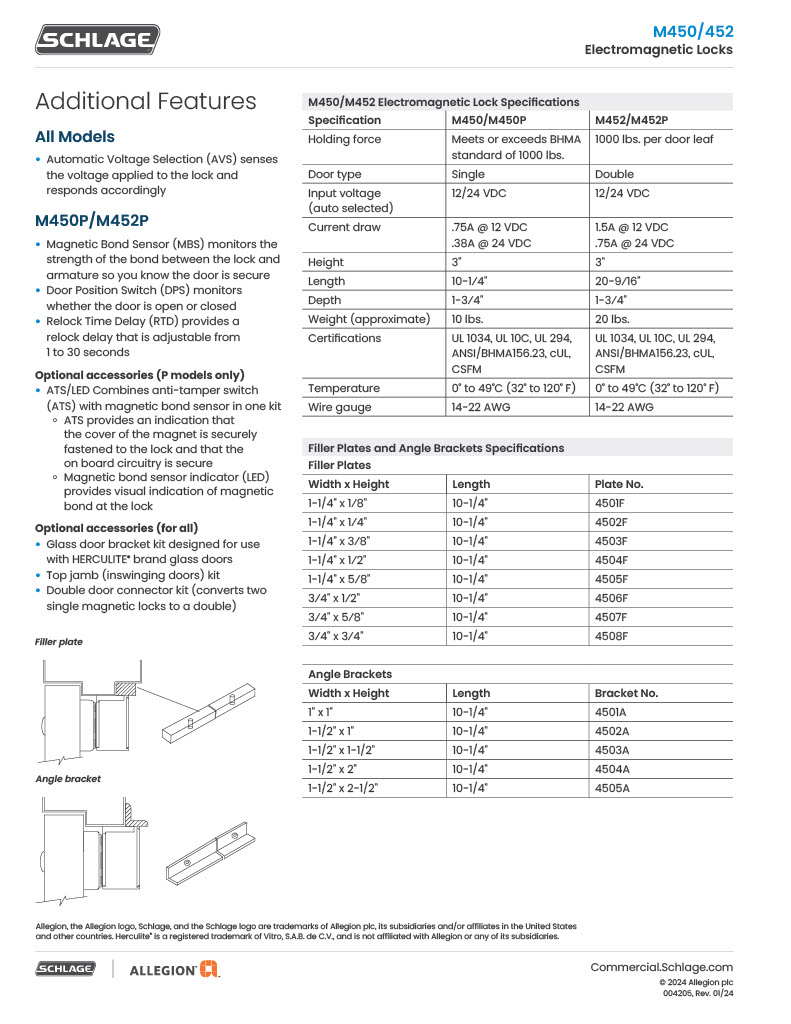

Specification

Holding force: meets or exceeds BHMA standard of 1000 lbs

Input voltage (auto selected): 12/24 VDC

Current draw (amps standard unit): .75A @ 12 VDC .38A @ 24 VDC

Automatic dual voltage: 12/24 VDC

Height: 3" Length: 10-1/4" Depth: 1-3⁄4"

Temperature: 0 Degree to 49 Degree C (32 Degree to 120 Degree F)

Wire gauge: 14-22 AWG

Optional accessories

Herculite door bracket kit

Top jamb (inswinging doors) kit

Double door connector kit (converts two single magnetic locks to a double)
