Camden CM-221/A42 Series ValueWave, Single Gang, Touchless Switch

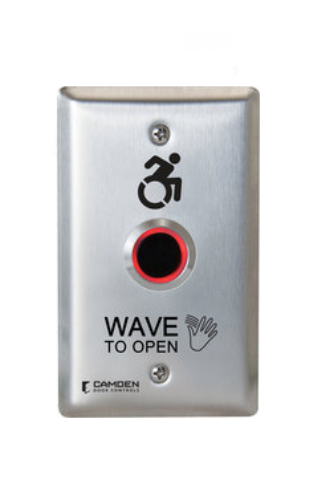

Camden CM-221/A42 ValueWave CM-221 Series Touchless Actuator, 2" to 8" Range, Single Gang Hand Icon/'Wave to Open' Text/Active Wheelchair Symbol Faceplate, Includes 1 Bi-Color Light Ring, Stainless Steel Finish

Camden ValueWave(tm) 12/24 VDC touchless switches with 1 relay are IP 65 rated for indoor/outdoor use, ideal for use in automatic door/access control systems.

These no-touch switches are designed for easy installation and trouble-free service in high traffic applications. They are available in single, narrow and double gang stainless steel faceplates and a selection of faceplate graphics.

ValueWave(tm) hands free switches are both water resistant and offer a built-in light ring standard - CM-221 for red/green or CM-222 for blue/green illumination.

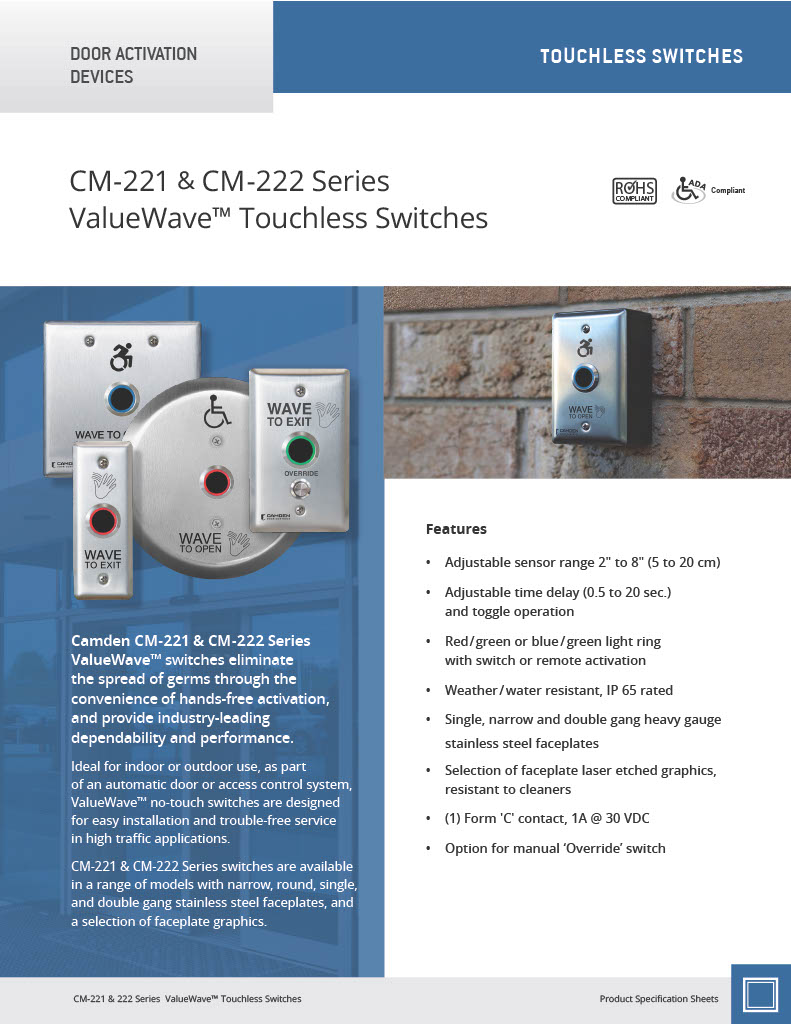

Features

• Adjustable sensor range 2" to 8" (5 to 20 cm).

• Adjustable time delay (0.5 to 20 sec.) and toggle operation.

- Red/green or blue /green light ring with switch or remote activation.

• Weather/water resistant, IP 65 rated.

• Single, narrow and double gang stainless steel faceplates.

• Selection of faceplate laser etched graphics, resistant to cleaners.

• (1) Form 'C' contact, 1A @ 30 VDC.

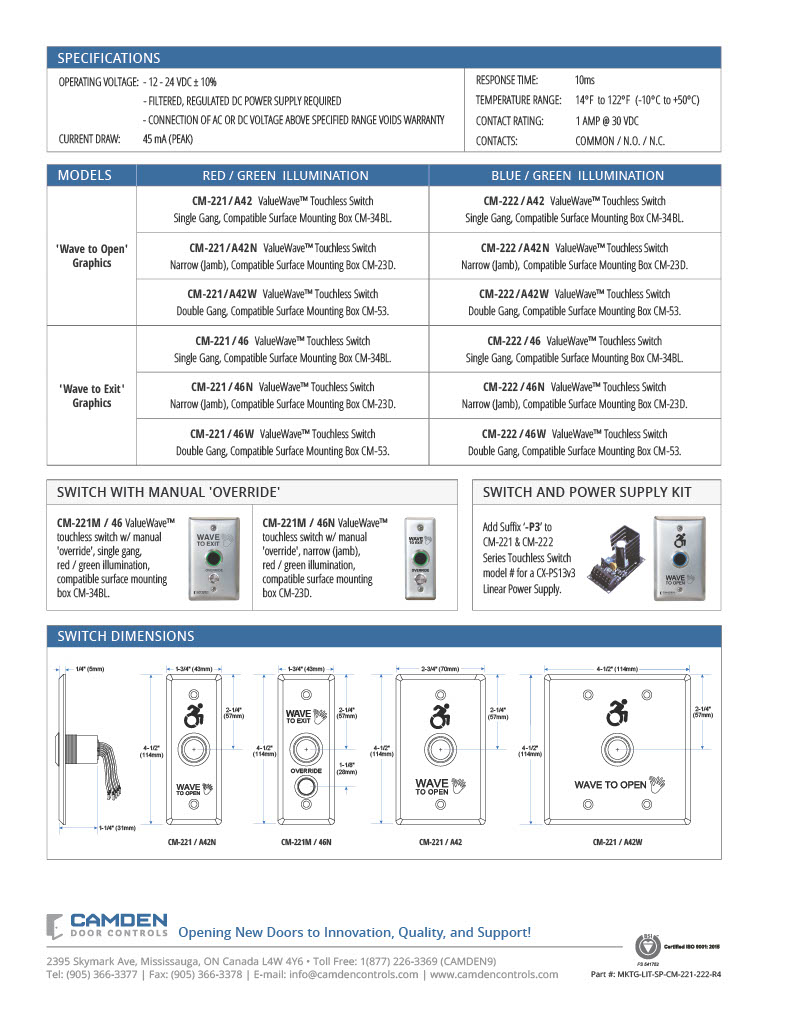

SPECIFICATIONS:

Voltage: 12/24 VDC. FILTERED, REGULATED DC POWER SUPPLY REQUIRED.

Current Draw: 45 mA (PEAK).

Response Time: 10ms.

Temp Range: 14 F TO 122 F (-10 C TO +50 C).

Contact Rating: 1 AMP @ 30 VDC.

Contact Type: FORM 'C'.
