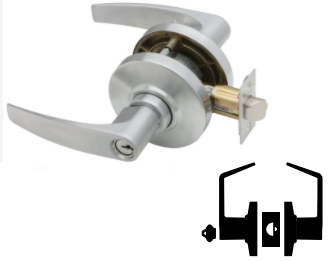

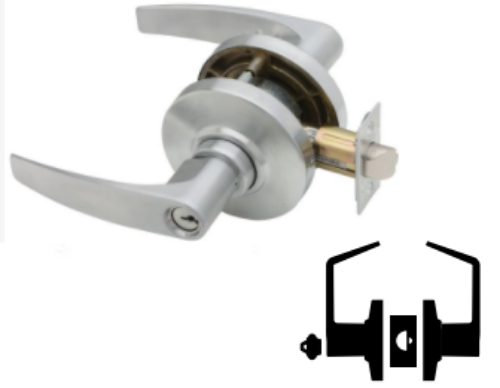

Schlage Lockset - AL70PD JUP - Standard Duty Classroom Lever Lock, 6-Pin conventional Cylinder

Schlage AL70PD JUP - Standard Duty Classroom Lever Lock, 6-Pin conventional*Cylinder* - Jupiter Style

Classroom Lock -ANSI-F84

Outside lever locked and unlocked by key.

Inside lever always unlocked

PD- 6-Pin conventional (standard)

Finishes:626 - Satin Chrome, 605 - Bright Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 625 - Bright Chrome, 619 - Satin Nickle

  Certifications:ANSI A156.2, 1996, Series 4000, Grade 2. UL Listed for all functions up to 3-hour doors.

Keying:6-pin tumbler with two nickel silver keys per lock. Other keying options available include master keying, grandmaster, keying, and construction keying. Interchangeable core available in Saturn design only.

Door Range:1 3/8" - 1 7/8" (35 mm - 48mm) standard. 1 7/8" - 2" (48 mm - 51 mm) regular parts assembled to order.

Backset:2" (70 mm) standard. 2 3/8" (60 mm) and 3 3/4" (95 mm) backset latches available. 5" (127 mm) backset links also available.

Latches:1 1/8" x 2" (29 mm x 57 mm)," (13 mm) throw standard. 1" (25 mm) wide faceplates available. Circular drive-in," (6 mm) radius round corner springlatches and deadlatches are also available.

Strikes:ANSI 1" x 4 7/8" (32 mm x 124 mm) strike, 1 3/16" (30 mm) lip standard. Square corner, 1 1/8" x 2" x 3/32" (29 mm x 70 mm x 2 mm) T strike with 1 1/8" (29 mm) lip, furnished with dust box, available. Optional lip lengths 1" - 2" (25 mm - 51 mm) available.

PD- 6-Pin conventional (standard)    LD - Conventional - Less Cylinder      JD - Large format IC core   BD - Small format IC core

**Warranty:

Three-year limited.Model:**Schlage AL70, AL70PD, SAT, 626, 605, 612, 613, 625. AL70PDJUP, AL70PDJUP626, AL70PDJUP605, AL70PDJUP625, AL70PDJUP612, AL70PDJUP613, AL70PDJUP619

**Exceeds all ANSI A156.2, 1996, Series 4000, Grade 2 strength and operational requirements including 400,000 cycle testing

Exposed Trim: Wrought brass or bronze. Levers are pressure cast zinc, plated to match finish symbols.

True through-bolting of door prevents lock chassis rotations and disengagement from latch

Stainless steel interlocking spindle design for added strength against excess force when lever is in locked position or latch has been fully retraced

Cold rolled steel, machined, threaded hubs and locking nuts prevent loosening of the lockset by bolting chassis to the door

Heavy duty compression springs extend life of spring cage, minimize droop and provide smooth, fast return action of levers

Patented door range adjuster allows quick and easy adjustment of the AL-Series for 1 3/8" - 1 7/8" (35 mm - 48 mm) thick doors Back to Top

Standard latches and strikes have adjustable brass or bronze faceplates, furnished in compatible lock trim finish
