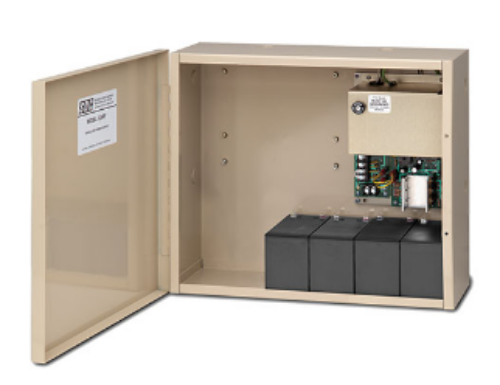

SDC 636RF Power Supply With Charger, 12/24VDC, 6 Amp, Emerg. Release, 16" x 14" Cabinet

SDC*636RF Power Supply With Charger, 12/24VDC, 6 Amp, Emerg. Release, 16" x 14" Cabinet, UL, Class 2*

Features:

• Filtered and Regulated: The output filtering stabilizes the DC output voltage and eliminates AC line noise. The solid state regulator maintains the selected output voltage at 12VDC or 24VDC regardless of the output load changes, including battery charging.

• Field Selectable 12 or 24VDC: The output is field selectable for 12 or 24VDC output.

• Class 2 Output: The 636RF Power Supply may be configured to use one 6 Amp output or three 2 Amp, Class 2 outputs. Where permitted by code, conduit is not required for low voltage wiring when using Class 2 outputs. The total current draw from all outputs must not exceed 6 Amps.

• Battery Charger Output: A separate PTC protected, battery charger output provides 13.5VDC or 27VDC.

• LED System Status Indicator Amber - AC and DC Voltages are OK Green - No DC Output Red - No AC Input, Powered by Batteries

• Low Battery Disconnect: (Standard) Batteries are disconnected from the output circuit prior to deep discharge preventing battery destruction

• Large Heavy Gauge Enclosure: Model 636RF is housed in a 16 gauge, 16"W x 14"H x 6.5"D cabinet large enough to accommodate several additional modules and six 8 Amp hour batteries with plenty of room for wiring.

• Emergency Release Input: (Standard) A signal input from the fire life safety system turns off the secondary output releasing all failsafe locks. When not used for emergency release, this input may be used as main on-off control.

• Isolated Charging Circuit: (Standard) While the charging output is 13.5VDC or 27VDC, the secondary output is unaffected and precisely maintained at the selected 12 or 24VDC. This ensures system components are powered by their specified voltage. The secondary output current is maintained at the full 6 Amp capacity and is not derated when charging batteries.

SPECIFICATIONS:

Input: 1 Amp @115VAC 50/60 Hz (230VAC 50/60Hz Optional, Not UL listed)

Input Protection: 1 Amp, Manually Resettable Circuit Breaker

Secondary Output: Selectable One, 6 Amp @ 12VDC or 24VDC or Three, Class 2, 2 Amp @12VDC or 24VDC

Output Protection: Auto Resetting Poly Fuse per Output

Battery Charger Output: 500 mA @ 13.5 or 27VDC

Battery Charger Protection: Auto Resetting Poly Fuse

Dimensions: 16" W x 14" H x 6.5" D

Material: 16 Gauge Steel
