Schlage M390RFK Electromagnetic Lock, 1500 lbs HoldIng Force

Schlage M390RFK Electromagnetic Lock, 1500 lbs HoldIng Force, Direct Retrofit for Locknetics 390+, Door Status Monitor, Magnetic Bond Sensor, Relock Time Delay

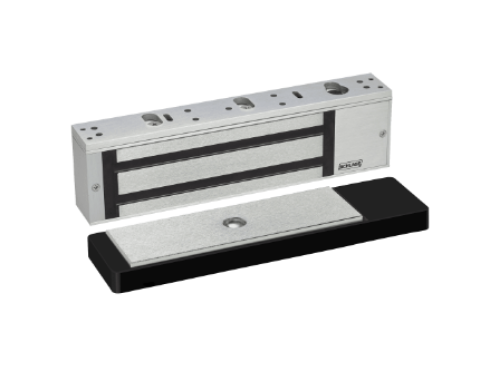

M390RFK Retrofit Electromagnetic lock

Overview

The M390RFK is designed to retrofit the Locknetics 390+ without any additional prep. This ensures ease of installation for retrofit applications. The M390RFK comes standard with a Door Status Monitor (DSM), Magnetic Bond Sensor (MBS), and Relocking Time Delay (RTD). It's design employs a standardized circuit board with easy-to-install connectors, adjustable mounting brackets and integrated mounting screws. The armature housing was designed to eliminate noise and sagging, increasing the overall reliability of the product. The armature housing also holds magnets for the DSM feature without having to mount an additional plate to the armature, ensuring quicker, more reliable installations.

The M390RFK easily interfaces with most electronic access control systems in the market today, as well as automatic door operators and fire, or other hazard sensing systems for egress and emergency egress.

Features and benefits

• Direct retrofit for Locknetics 390+ electromagnetic lock for outswinging doors.

• Single lock model has 1500 lbs. of holding force for maximum security applications.

• Automatic voltage selection (AVS).

• Adjustable mounting brackets.

• Standard features include door status monitor (DSM), magnetic bond sensor with LED indicator (MBS) and a relocking time delay (RTD) of 0-110 seconds.

• UL 10C listed for positive pressure fire tests of door assemblies: 3 hours.

-  ANSI/BHMA 156.23 Grade 1, cUL certified.

-  Limited lifetime warranty on magnetic coil assembly.

M390RFK electromagnetic lock specifications

Holding force:1500 lbs.

Door type:Single outswinging only.

Input voltage:  (standard unit) 12 or 24 VDC.

Current draw:(amps standard unit) .65A @ 12 VDC .45A @ 24 VDC.

Height:2 7⁄8".

Length:10 1⁄2".

Depth:1 5⁄8".

Weight:(approximate) 12.4 lbs.

Certifications:ANSI/BHMA 156.23, UL 10C, cUL.

Temperature: 0  to 49 C (32  to 120  F).
