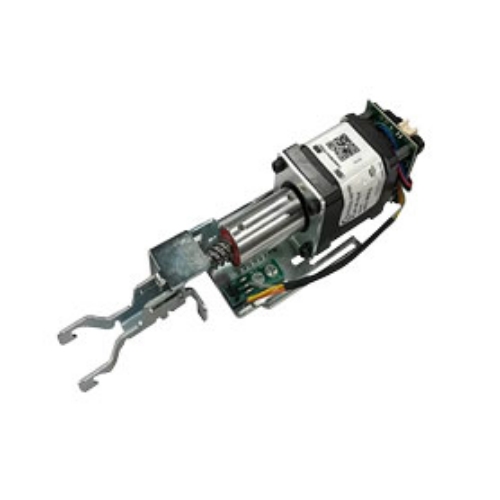

Command Access MLRK1-FAL25 Motorized Latch Retraction Kit, for Falcon 24/25 Series

Command Access MLRK1-FAL25 Motorized Latch Retraction Kit, for Falcon 24/25 Series* *MLRK1-FAL25:(79338) Kit for Falcon 24/25 Series. EU 24V w/ REX The MLRK1-FAL25 is a practical and cost-effective way to convert a mechanical Falcon 24/25 series device to an electrified latch pullback device. Our easy-to-install motor -driven kit installs in a matter of seconds with no drilling or screws required, a true "drop-in" kit! PTS allows for an easy post-installation adjustment of the latch/latches. A built-in REX switch is standard on all units! Last but not least, features an updated MM4S module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done! - 1 Touch 'PTS' Push to Set Technology- Easy Installation - Fast, Quiet, Smooth- True Electronic Dogging - Full Push Pad Retraction- True Electronic Dogging - Full push pad retraction- UL Listed FEATURES:

MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issuesPTS: 5 second electronic adjustment for easy post installation adjustmentElectric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged positionLow Current Draw - Field switchable to "High Torque" modeUp to 300" wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel8" cable with Quick Connect for MM4S module to easily connect to power supply leadRequest-to-exit kit available3-year "no hassle" warranty

SPECIFICATIONS Voltage range - 24 to 28 VDCSystem protection  unit shutdown when voltage exceeds 28VDCStandard - Average Current Peak: 900mA, Average Current Hold: 215mAHigh Torque - Average Current Peak: 2A, Average Current Hold: 250mAPTS adjustment - approx. 1/4" *Cutdown:- 36" - .75"- 48" - 5"Wire Run:*- 300- with 18ga wire
