Schlage ND75 - Grade 1 Classroom Security Lock, Non-Handed

Schlage ND75 - Heavy Duty Classroom Security Lock

Classroom Security Lock

Key in either lever locks or unlocks outside lever. Inside lever is always unlocked

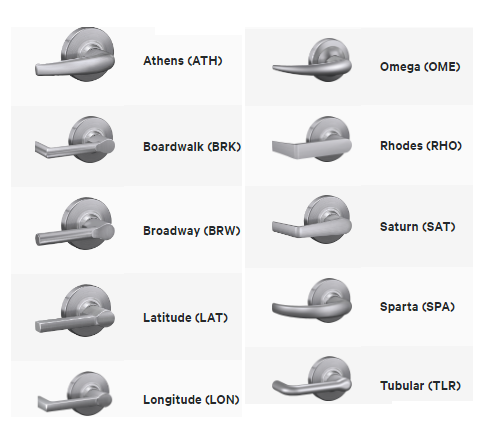

Lever Styles:Athens (ATH), Rhodes (RHO), Tubular (TLR), Sparta (SPA), Omega (OME).

Finishes:605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome

Certifications:ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.   Keying:6-Pin Solid brass Cylinder, C or Everest C123 keyway with two nickel silver keys per lock. Other keying options available include master keying, grand master keying, construction keying, and interchangeable core.    The door range is 1 5/8" - 2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately(please call).

Backset:2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available(please call).

Latch Bolt:Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors(please call).   Strikes:ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

ND75PD- 6-Pin conventional (standard)

ND75LD- Conventional - Less Cylinder

ND75BD- Small format IC core - less core (accepts "Best" Interchangable cores, core not included)

ND75JD- Large format IC core - less core (accepts Schlage Interchangable cores, core not included)

Model:Schlage, ND75, ND75PDATH, ND75PDRHO ND75PDTLR, ND75PDSPA, ND75PDOME, ND75PDATH626, ND75PDRHO626, ND75PDTLR626, ND75PDSPA626, ND75PDOME626,

ND75BDATH, ND75BDRHO ND75BDTLR, ND75BDSPA, ND75BDOME, ND75BDATH626, ND75BDRHO626, ND75BDTLR626, ND75BDSPA626, ND75BDOME626,

ND75JDATH, ND75JDRHO ND75JDTLR, ND75JDSPA, ND75JDOME, ND75JDATH626, ND75JDRHO626, ND75JDTLR626, ND75JDSPA626, ND75JDOME626,

ND75LDATH, ND75LDRHO ND75LDTLR, ND75LDSPA, ND75LDOME, ND75LDATH626, ND75LDRHO626, ND75LDTLR626, ND75LDSPA626, ND75LDOME626

ATH, RHO, TLR, SPA, OME, 605, 606, 612, 613, 619, 625, 626.

Standard Features

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)

Warranty:Seven-year limited warranty for all functions including Vandlgard.

Exposed Trim:Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.
